10
13
16
17
20
19
20
18
7
18
19
7
10
17
VALVE IS CALLED OUT IN THE HYD
CONTROL ASSY 00-36303-0_-AD
PACK HYD DETAIL
9
23
5
6
11
10
9
12
9
8
14
1
13
15
7
89
6
7
10
COVER CYLINDER HOSES WITH HOSE
COVERING AND RETAIN WITH TIE STRAPS
HYD CONTROLS ASSY #00-36303-0_-AD
LOOK FOR BULK HEAD & WASHERS IN
LOOK FOR PRESSURE TUBE
IN HYD CONTROLS
ASSY #00-36303-0_-AD
ITEM NO. PART NUMBER QTY. DESCRIPTION
22 430-003-000 16 STRAP, TIE
21 07-52015-00-R 21 HOSE COVERING
20 G08E08E10-036 2 HOSE ASSY,,
19 G08E08E10-027 2 HOSE ASSY,,
18 842-008-000 2 ELBOW, MALE O-RING
17 00-36204-00-AA 4 TUBE ASSY, PACK, PLS
16 00-36203-00-AA 2 TUBE ASSY, PACK, PLS
15 00-36206-01-AA 1 TUBE ASSY, SWEEP EXTEND, PLS
14 00-36207-01-AA 1 TUBE ASSY, SWEEP RETACT, PLS
13 888-010-000 4 BULKHEAD, RUN TEE,
12 00-36206-02-AA 1 TUBE ASSY, SWEEP EXTEND, PLS
11 00-36207-02-AA 1 TUBE ASSY, SWEEP RETACT, PLS
10 856-010-000 6 BULKHEAD UNION, 90 DEGREE
9 440-014-000 8 BUSHING, MACHINE
8 805-010-000 2 ADAPTER
7 841-008-008 6 ADAPTER, MALE O-RING
6 G08E08E10-031 4 HOSE ASSY,,
5 00-36209-00-AA 1 TUBE ASSY, RETURN, PLS
4 1
3 440-017-000 2 WASHER,SAE FLAT
2 805-012-000 1 UNION,BULKHEAD
1 00-36205-00-AA 2 TUBE ASSY, PACK, PLS
8
BY
ECN NUMBER
SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
7
6
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
ECN RELEASE

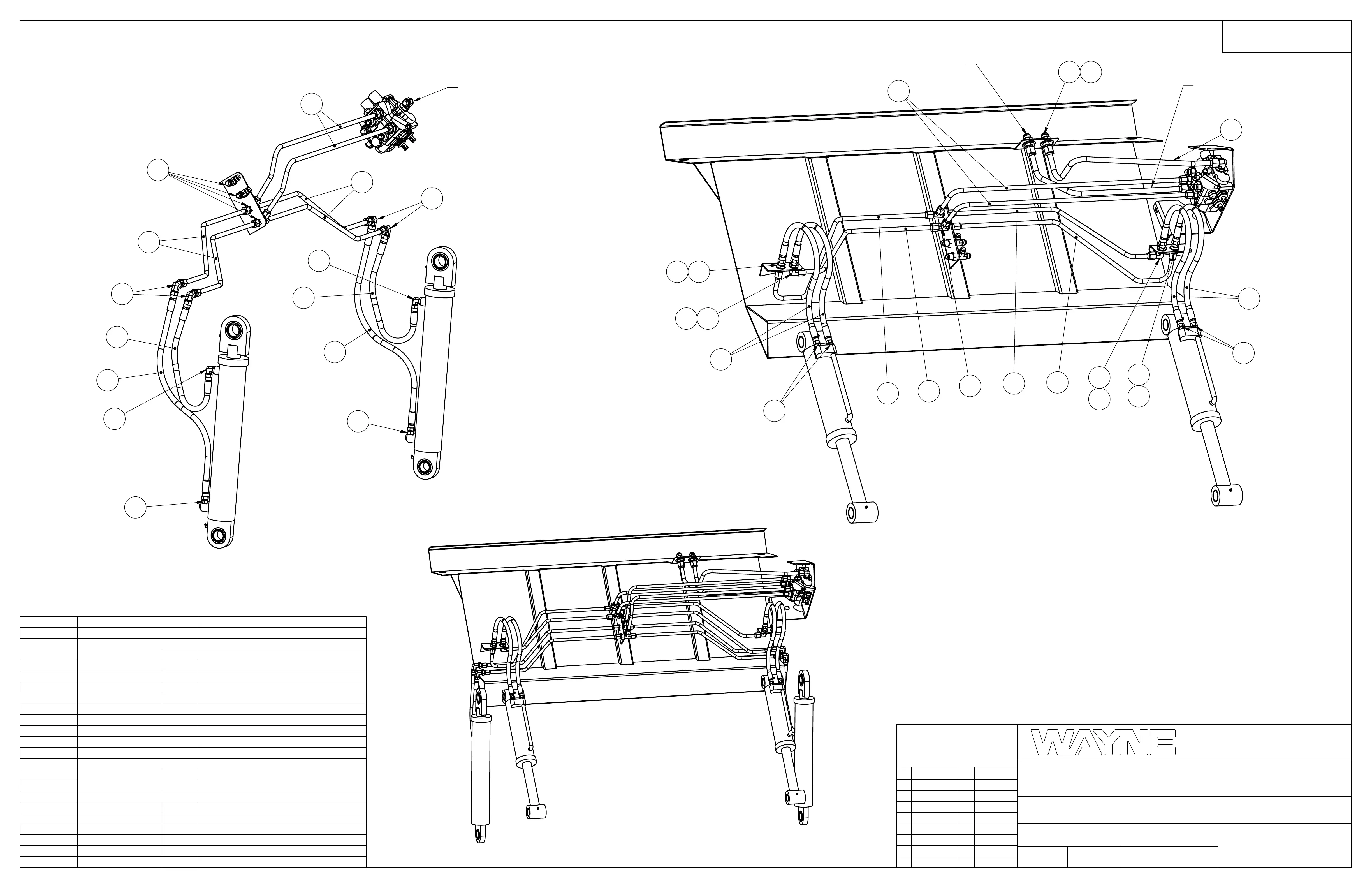

HYD ASSY, TG MANUAL, PLS
00-36196-00-AD
ECN
ECN
ECN
ECN
ECN
ECN
ECN
ECN 04073 DAS 04/13/09
1:6
06/24/05
03021
DAS
00-36196-00-AD
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
SWEEP HYD DETAIL
COMPLETE HYD SYSTEM DETAIL
