ITEM NO. PART NUMBER QTY. DESCRIPTION
27 445-004-001 2 NUT,STD
26 485-008-004 2 WASHER,LOCK
25 485-004-001 2 WASHER,SAE FLAT
24 415-004-012 2 CAPSCREW, 1/4-20 X 3/4
23 805-012-000 1 UNION,BULKHEAD
22 440-017-000 2 WASHER,SAE FLAT
21 445-008-002 3 NUT,LOCK
20 485-008-001 3 WASHER,SAE FLAT
19 415-008-020 3 CAPSCREW
18 00-35952-03-OA 3 BRKT, PUSH ROD, PLS
17 00-38251-06-AA 1 HANDLE WLD, CONTROL, PX
16 00-38251-05-AA 2 HANDLE WLD, CONTROL, QUS
15 445-008-004 3 NUT
14 485-008-002 3 WASHER,LOCK
13 638-008-076 3 BALL JOINT,1/2",
12 445-008-006 3 NUT,JAM
11 00-36200-02-AA 1 PUSH ROD WLD,PACK,QM
10 00-36200-01-AA 2 PUSH ROD WLD,, PLS
9 400-048-001 3 PIN, COTTER, 1/16 X 1/2
8 400-045-010 3 PIN, CLEVIS 1/4 X 7/8,
7 00-38633-00-OA 1 RETAINER, HANDLE, PLS
6 00-38632-00-OA 1 CHANNEL, HANDLE STOP, PLS
5 445-005-001 4 NUT,
4 470-031-000 4 WASHER, LOCK
3 485-005-002 8 WASHER,STD FLAT
2 415-005-016 4 CAPSCREW
1 00-38762-02-AB 1 VALVE ASSY, ONE OPTION, QUS
8
BY
ECN NUMBER
SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
7
6
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
ECN RELEASE

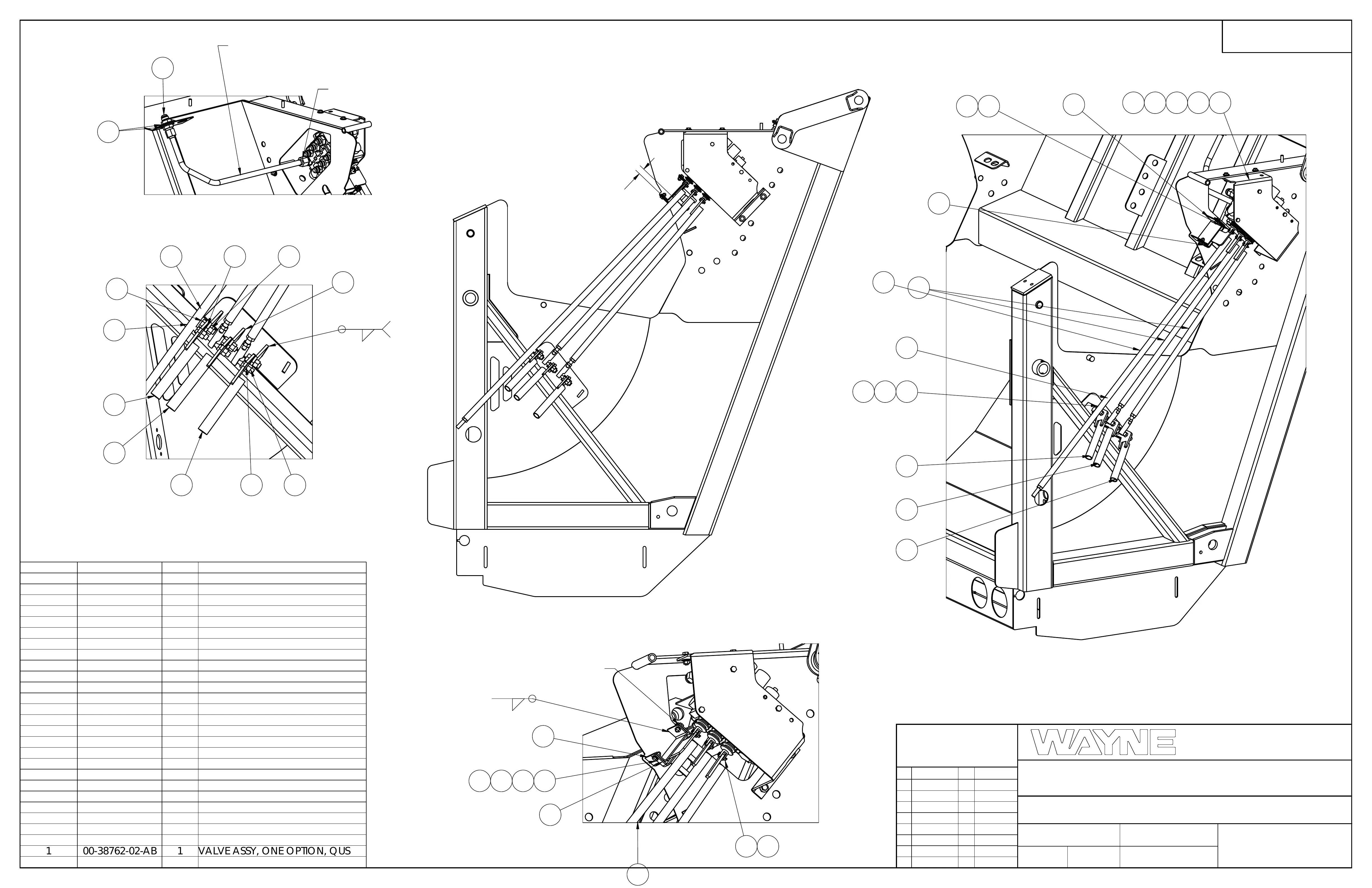

HYD CONTROL ASSY, ONE OPTION, PLS
00-36303-02-AD
ECN
ECN
ECN
ECN
ECN
ECN
ECN 04672 DAS 10/15/10
ECN 04073 DAS 04/09/09
1:6
10/17/05
03021
DAS
00-36303-02-AD
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
.
9
3
22
ATTACH TO VALVE INLET
23
CHECK UNIT ORDER, IF UNIT DOES NOT HAVE A
TAP-IN KIT, TUBE PART NUMBER IS 00-36208-01-AA
HANDLE DETAIL
SCALE 1:4
14
234 15
6
89
7
11
12
13
16
17
10
16
15
13
19
20
18
16
17
16
21
1514
12
.19
3
FLAG IS PARRELLEL WITH TG SIDE SHEET AND
ATTACH HADLE RETAINERS SO THAT PROX
89
THERE IS .062 TOTAL GAP AROUND FLAG
6
7
242526
11
27
.13
