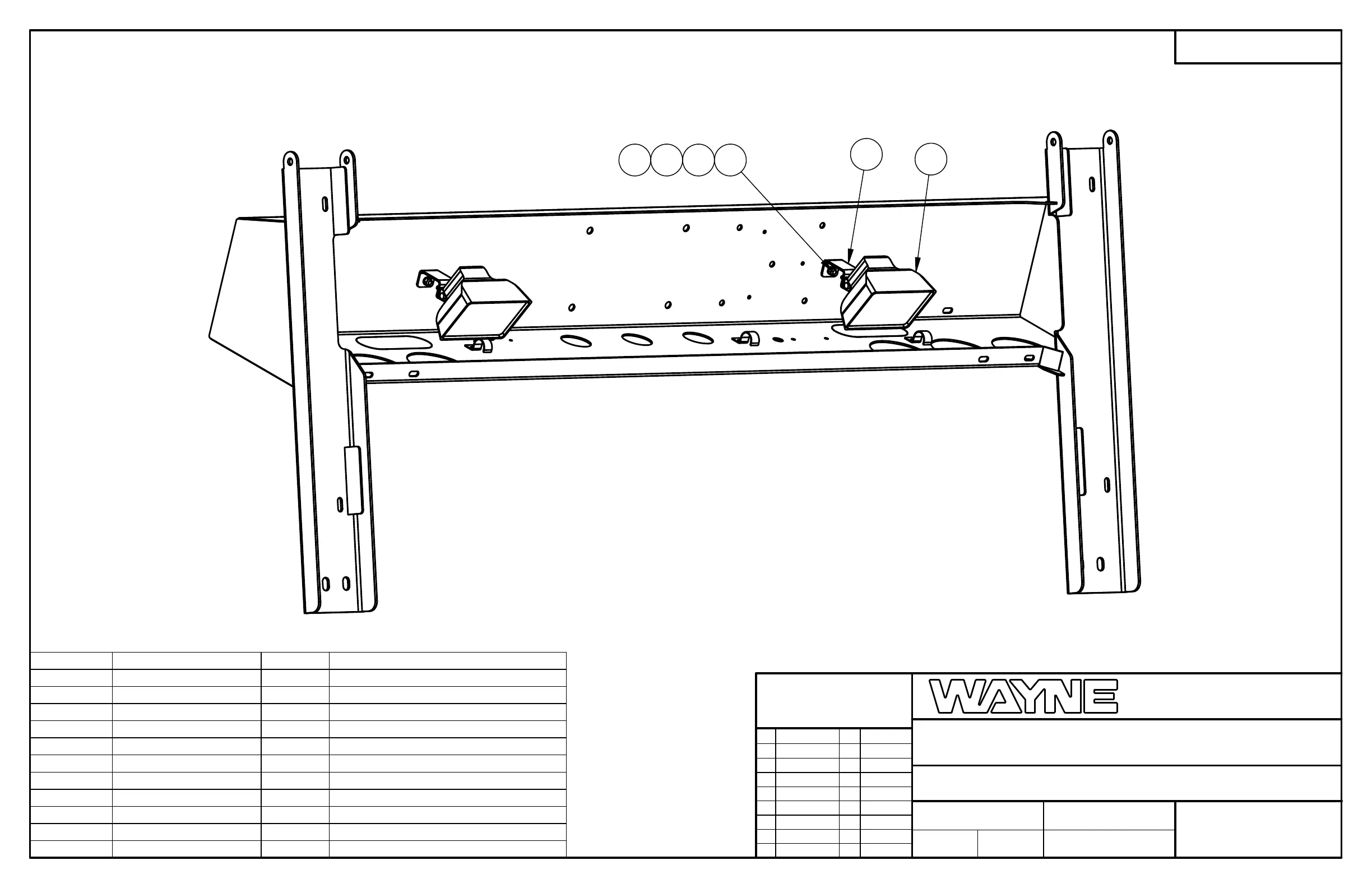

LIGHT KIT, WORK LIGHT, QUS
04312
DAS
1:6
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
ITEM NO. PART NUMBER QTY. DESCRIPTION
11 07-52005-90-R 6F LOOM, CORRUGATED .35 ID
10 03-45116-17-R 5F WIRE, BLACK ON WHITE
9 03-45116-01-R 5F WIRE, BLACK 16 GA
8 310-015-003 5 CONNECTOR, BUTT, HEAT SEAL
7 310-005-001 1 TERMINAL, 1/4" RING
6 445-005-001 2 NUT,
5 470-031-000 2 WASHER, LOCK
4 485-005-002 2 WASHER,STD FLAT
3 415-005-012 2 CAPSCREW
2 00-39279-00-OA 2 BRKT, WORK LIGHT, QUS
1 332-038-001 2 LIGHT,FLOOD
36
SCREW USING THE RING TERMINAL. COVER WIRES WITH LOOM.
2
1
45
CONNECT ONE LEAD OF THE FLOOD LIGHTS TO THE BLACK ON WHITE
WIRE. CONNECT BOTH BLACK ON WHITE WIRES TO WHITE 042A IN
THE TAILGATE HARNESS. CONNECT THE OTHER FLOOD LIGHT LEADS
TO A BLACK WIRE AND GROUND TO THE BACK UP ALARM MOUNT
THIS KIT FOR UNITS WITH ROLL BAR OR WINCH
