CURBTENDER Quantum Compact - Page 88

7
8
BY ECN NUMBER SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
6
5
DESCRIPTION
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
ECN RELEASE
DAS
00-38785-XX-AB
ECN 05048 DAS 05/06/11
ECN 05625 DAS 08/14/13
ECN 05938 DAS 07/17/14
ECN
ECN
ECN
ECN
ECN
00-38785-XX-AB
04/14/09

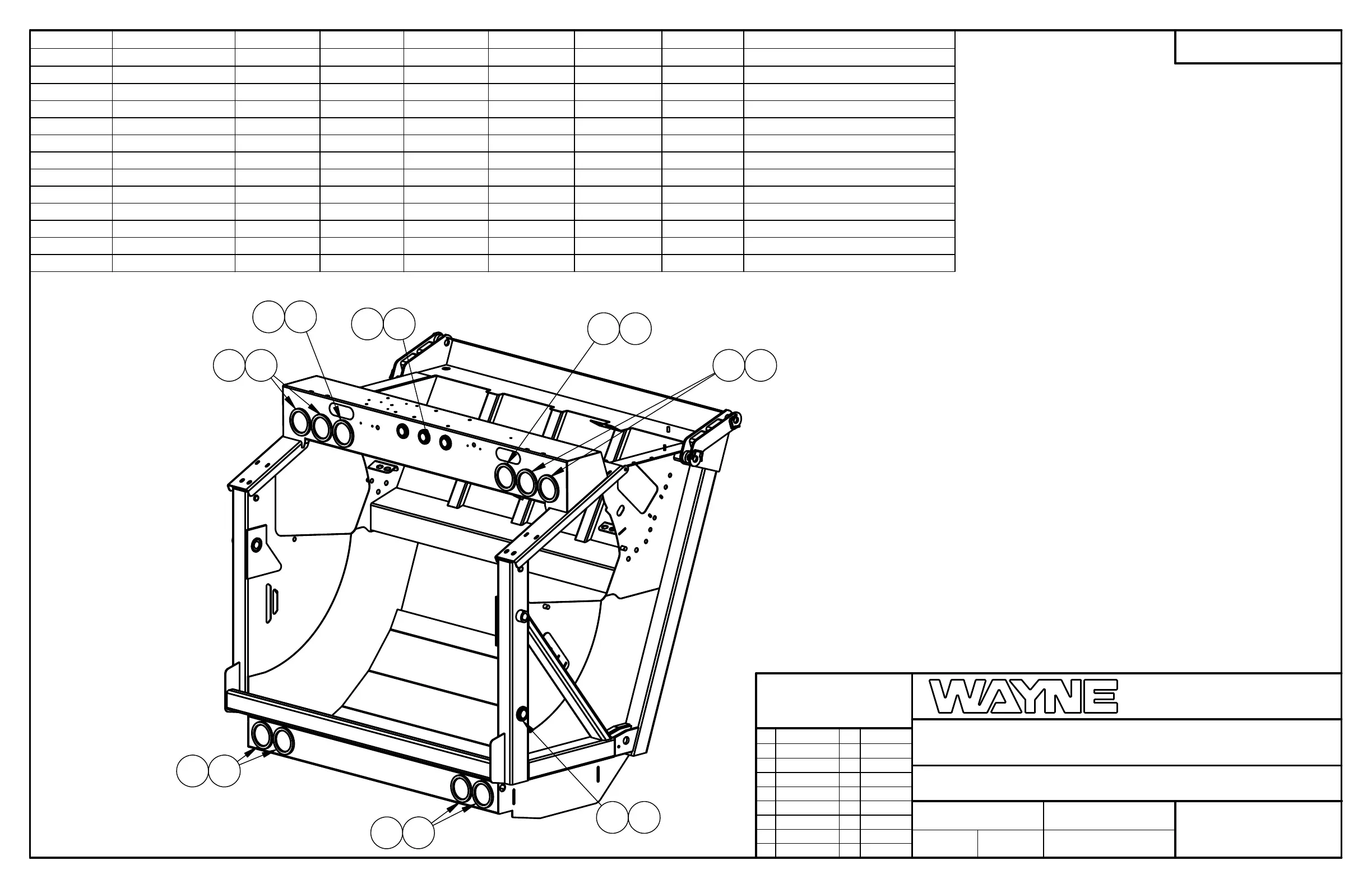

LIGHT KIT,S/T/T/R, QUS
04058
1:16
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
ITEM NO. PART NUMBER -01-/QTY. -02-/QTY. -03-/QTY. -04-/QTY. -05-/QTY. -06-/QTY. DESCRIPTION
10 332-040-011 10 10 10 10 6 10 GROMMET,4 IN,
4 332-040-015 8 - - - - - LAMP,STOP TAIL TURN,
7 332-140-015 - 8 8 - 4 - LED LAMP 4, STOP, TURN, TAIL
8 332-040-018 - - - 8 - - LAMP, STOP/TURN/TAIL 24V,
11 332-140-018 - - - - - 8 LAMP, LED STOP/TURN/TAIL 24V,
5 332-040-017 2 2 - - - - LAMP,BACK UP,
1 332-140-017 - - 2 - 2 - LED LAMP , 4" CLEAR
9 332-040-019 - - - 2 - - LAMP,BACKUP 24V,
12 332-140-019 - - - - - 2 LAMP, LED BACKUP 24V,
13 332-031-004 5 - - 5 - - GROMMET,2 IN,
3 332-030-001 5 - - - - - LAMP,RED 2 IN,
6 332-130-001 - 5 5 - 5 5 LED LAMP, RED MARKER
2 332-030-024 - - - 5 - - LAMP,RED 2 IN,24V
00-38785-01-AB IS STANDARD 12V INCANDESCENT
00-38785-02-AB IS 12V LED STOP/TURN/TAIL
00-38785-03-AB IS 12V LED STOP/TURN/TAIL/ BACKUP
00-38785-04-AB IS 24V INCANDESCENT
00-38785-05-AB IS NY PARKS 2013 SPECIAL COMBINED
STOP/TURN, NO STOP ONLY LIGHT
00-38785-06-AB IS 24V LED STOP/TURN/TAIL/BACKUP
13
104 4
105
10
10
5
104
BACK UP
4
STOP LIGHT INNER
TURN SIGNAL OUTER
TURN SIGNAL OUTER
STOP LIGHT INNER
10
3
13
3
