CURBTENDER Quantum Compact - Page 92

8
BY ECN NUMBER SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
7
6
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
ECN RELEASE

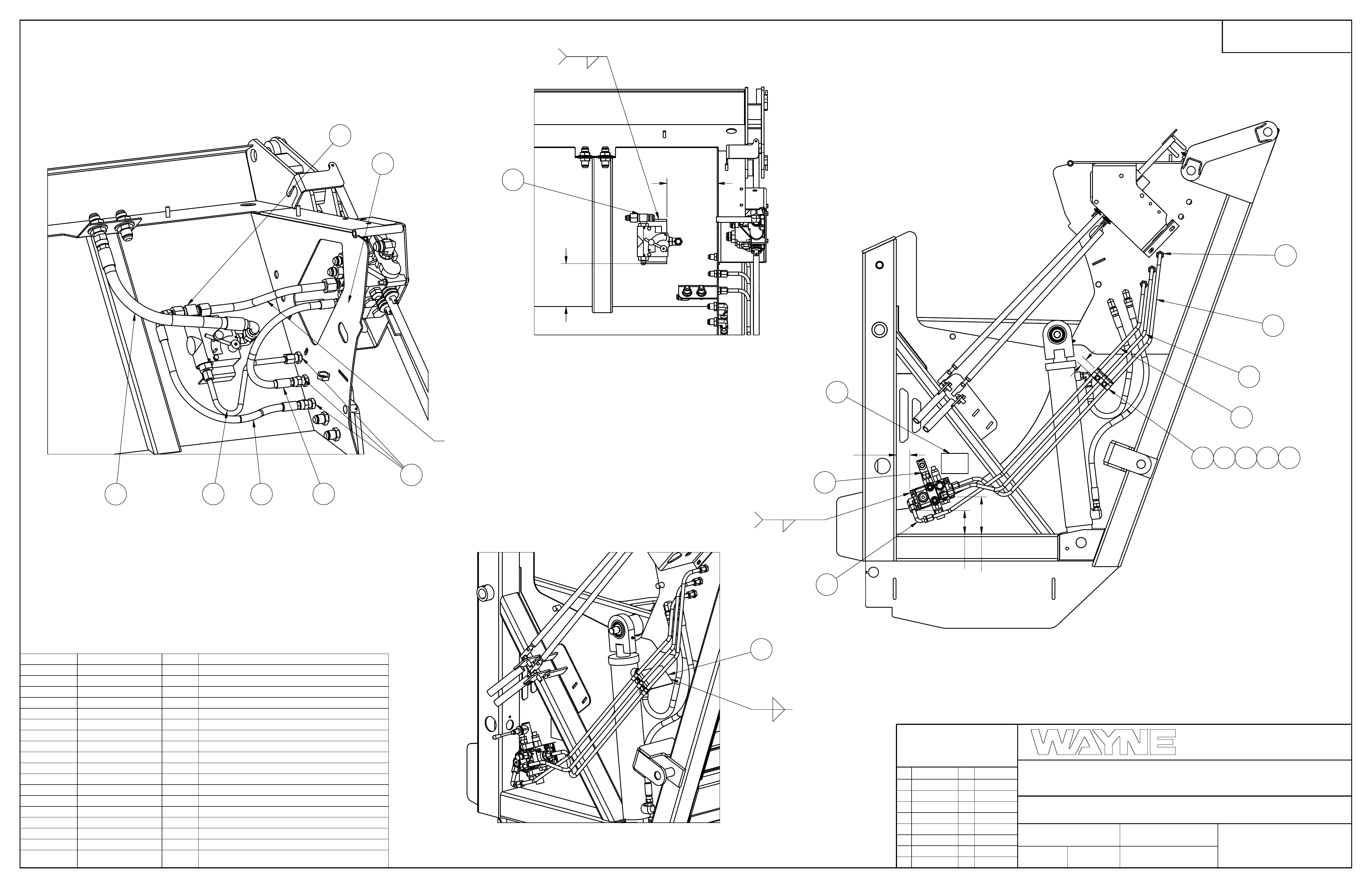

TAP-IN KIT, MANUAL,QUS
00-36305-05-AD
ECN
ECN
ECN
ECN
ECN
ECN
ECN
ECN
1:6
09/21/11
04944
DAS
00-36305-05-AD
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
ITEM NO. PART NUMBER QTY. DESCRIPTION
18 00-26475-00-WA 1 DECAL, CONTAINER DUMP
17 00-60903-01-AB 1 VALVE ASSY, TAP-IN KIT, QUS
16 848-008-001 1 ELBOW, LONG TUBE
15 00-36321-00-OA 1 BRKT, TUBE MOUNT, PLS
14 445-006-001 2 NUT,STD
13 440-029-000 2 WASHER,LOCK
12 415-006-016 2 CAPSCREW
11 400-015-008 3 CLAMP, HOSE SUPPORT
10 00-36242-03-AA 1 TUBE ASSY, POWER BEYOND, PLS
9 00-36241-04-AA 1 TUBE ASSY, RETURN, QUS
8 00-36240-04-AA 1 TUBE ASSY, PRESSURE, QUS
7 G12E12G12-021 1 HOSE ASSY
6 00-38892-00-AA 1 TUBE ASSY, TAP-IN PRESSURE, QUS
5 G06E08G08-024 1 HOSE ASSY,,
4 G06E08E08-021 1 HOSE ASSY,,
3 805-008-000 3 BULKHEAD,TUBE UNION
2 841-012-008 1 ADAPTER, MALE O-RING
1 00-36210-01-AB 1 VALVE ASSY, FLOW CONTROL,QUS
FLOW VALVE ASSY MOUNTING DETAIL
FLOW VALVE PLUMBING DETAIL
SCALE 1:4
7
6
1
5
4
3
2
SEE UNIT ORDER FOR TUBE ASSY
PART NUMBER (00-36211-0_-AA)
16
INSTALL TUBE MTG BRKT SO THAT
3
8
9
10
12 13 14 1511
THERE IS 1.07 CLEARANCE WITH
CYLINDER FITTING. SEE TUBE
MTG BRKT DETAIL FOR WELDING.
.19 1.5-4
4 SIDES
17
18
3.50
2.00
1
.
0
7
5.53
1
.19
2
7.55
6.41 TO
BRKT
TUBE MTG BRKT DETAIL
15
.19
