CURBTENDER Quantum Compact - Page 91

12
2
3
4
1
57 869
1
112
10
5
14
4
13
7
8
BY ECN NUMBER SYM
DIMENSIONS IN () ARE REFERENCE K
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
6
5
DESCRIPTION
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
ECN RELEASE
DAS
00-38456-06-AD
00-38456-06-AD
ECN
ECN
ECN
ECN
ECN
ECN
ECN
ECN
1:8
02/27/15
06116

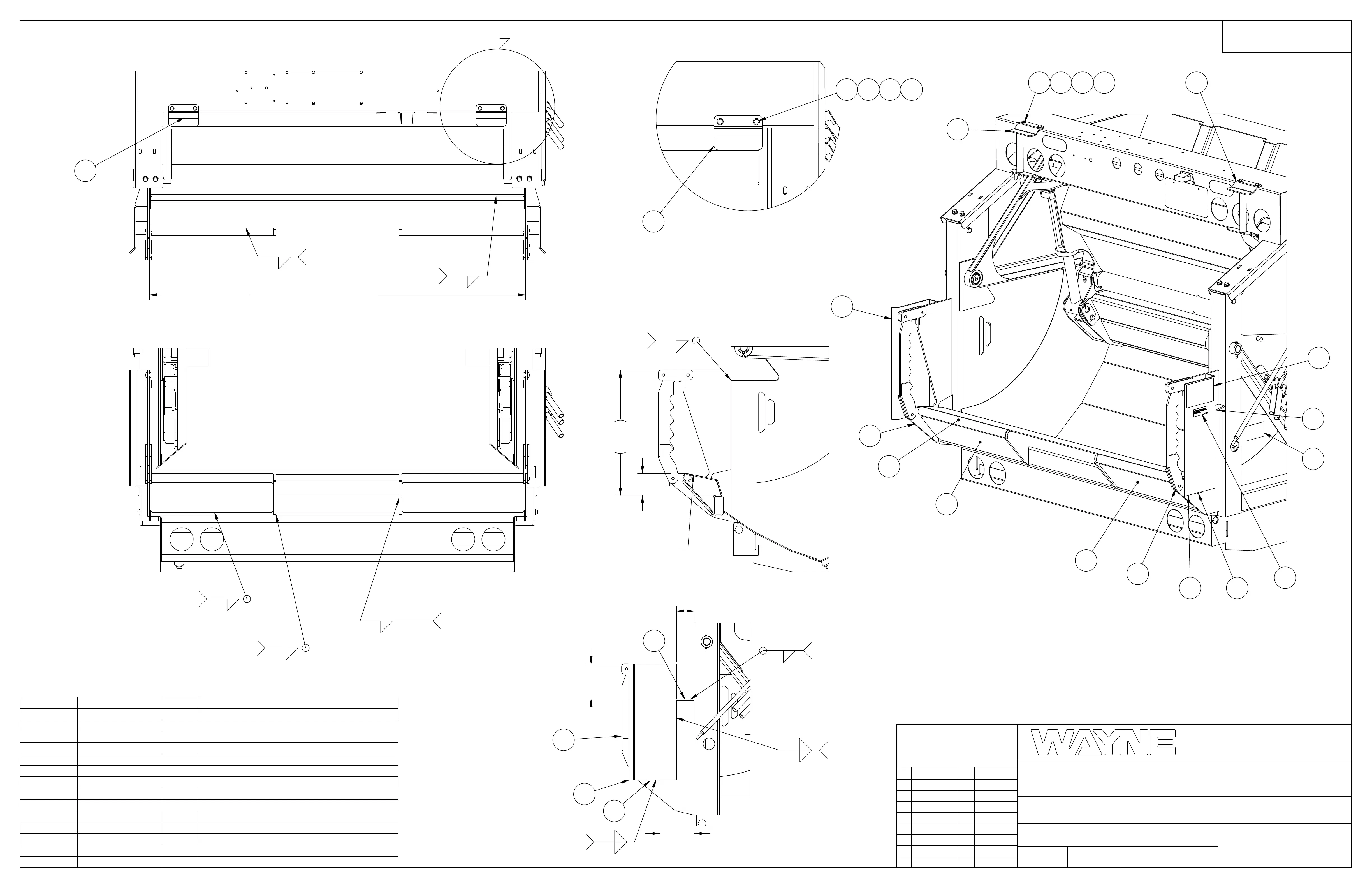

LIP & LATCH KIT, WITH DUMPER, QUS
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
INSTALL AFTER LATCH WLD
.19
& EXT GUSSETS ARE WELDED
LIP & EXT PLATE
.25
GUSSETS TO HOPPER
.25 3 SIDES
DUMPER MNT PLATE TO
GUSSETS & EXT PLATE
ITEM NO. PART NUMBER QTY. DESCRIPTION
14 00-20490-00-WA 1 DECAL, CONTAINER DUMP
13 00-31435-02-OA 2 DECAL, CONTAINER
12 00-26836-00-WA 2 DECAL, DANGER CONTAINER
11 00-24573-00-OA 2 RECT, 7 GA X 2.56 X L
10 00-38774-00-OA 2 GUSSET, CONTAINER GUIDE, QUS
9 445-006-001 8 NUT,STD
8 440-029-000 8 WASHER,LOCK
7 485-006-001 16 WASHER,SAE FLAT
6 415-006-016 8 CAPSCREW
5 00-38888-01-AB 2 STOP WLD, CONTAINER, QUS
4 00-38469-00-OA 2 COVER, HOPPER EXT, PLJR
3 00-38467-07-AB 1 EXT WLD, HOPPER W/ DUMPER, QUS
2 00-38462-01-OA 2 GUIDE, LH CONTAINER, PLJR
1 00-38460-00-AB 2 LATCH WLD, CONTAINER, PLJR
FOR TAP-IN KIT ONLY INSTALLED ON SHIP OUT UNIT
EXT FLUSH HERE
RH TAILGATE SIDE WELD & RH LATCH ASSY NOT SHOWN
LATCH WELD & HOPPER
.25
2
4.31
24.81
EXT PLATE TO HOPPER SILL
5
.19
AFTER LOCATED TO HOPPER SILL
.19
B
74.50 INSIDE LATCH PLATE
.19
2
2
.25
.25
2
10
2
1
11
6.75
3.50
7.00
DETAIL B
SCALE 1 : 5
7
5
8
69
