Currie tech Izip E3 Path - Wiring Diagrams; Wiring Diagram - Via Mezza (TAG) System; Wiring Diagram - TAG;PAS w; RMB Bicycles (2008)

52
53

(Diagram is for representational purpose only. Your bicycle's wiring system may differ)

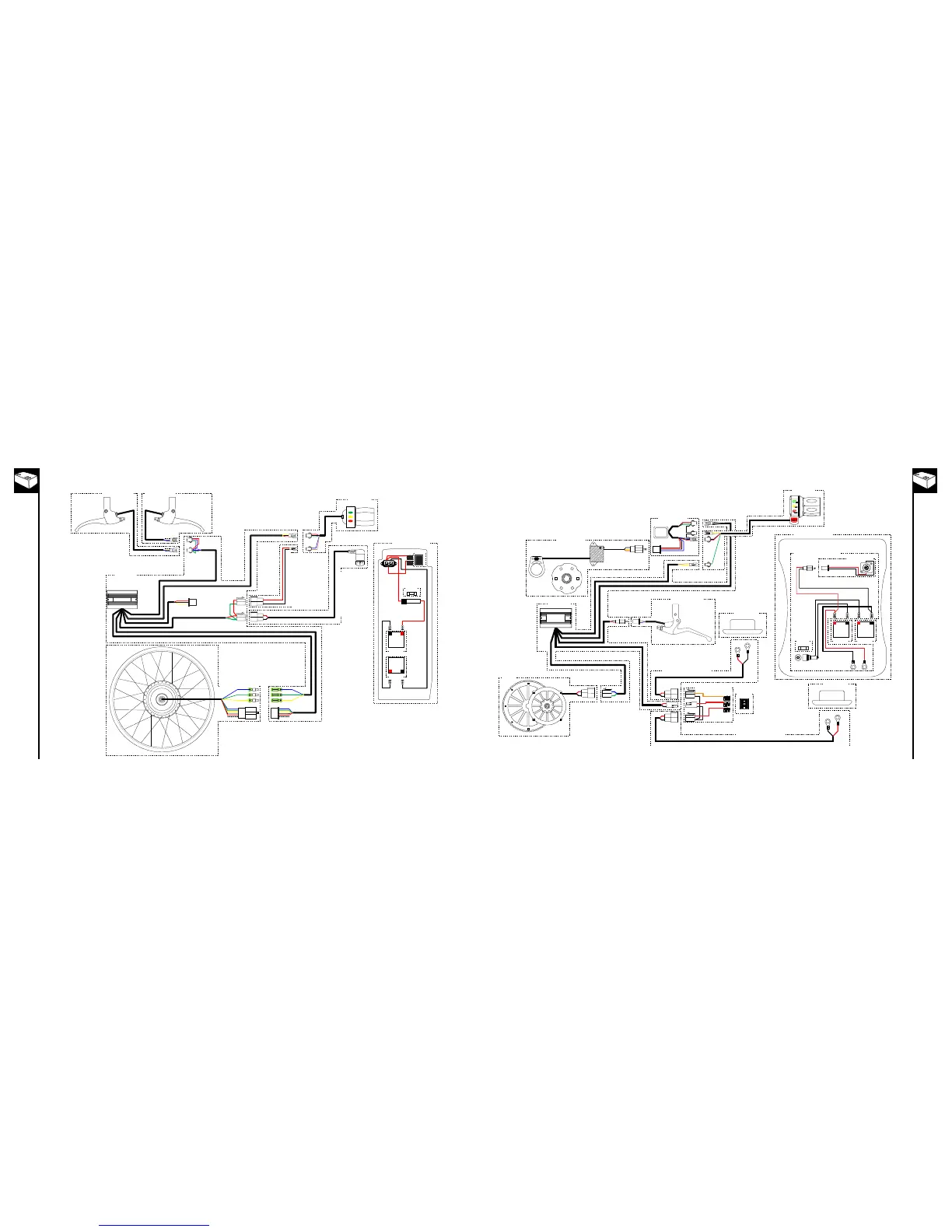

Via Mezza (STB w/ SLA Batteries) Bikes (2008 USA) WIRING DIAGRAM
BATTERY CASE (Complete)
BATTERY
BATTERY
FUSE
SWITCH
ON
OFF
FULL
HALF
LOW
THROTTLE
BRAKE LEVER, LEFTBRAKE LEVER, RIGHT
WIRE HARNESS,ADAPTER (DM-E-250C)
WHEEL, REAR W/ HUB MOTOR
L N
E
WIRE HARNESS, BATTERY PORT
CONNECTOR IN USE
CONTROLLER
For updated and new wiring diagrams, please visit www.currietech.com or call our customer service line at 1-800-377-4532
Rack Mount Battery (RMB w/ SLA Batteries) Bikes (2008 USA) WIRING DIAGRAM
WIRE HARNESS, SWITCH
SWITCH
WIRE HARNESS, BATTERY PORT
WIRE HARNESS, BATTERY PORT
BATTERY PORT
BATTERY PORT
Secondardy Battery Box
(optional)
ASSIST CONVERTER
(a.k.a. “WHITE BOX”)
1:1 ASSIST SENSOR
(a.k.a. “BLACK BOX”)
MOTOR
CONTROLLER
THROTTLE
1
2
3
CHARGER PORT
BATTERY CASE (Complete)
BATTERYBATTERY
WIRE HARNESS, BATTERY CASE
FUSE
BRAKE LEVER, LEFT

(Diagram is for representational purpose only. Your bicycle's wiring system may differ)
For updated and new wiring diagrams, please visit www.currietech.com or call our customer service line at 1-800-377-4532
