Currie tech Izip E3 Path - Additional Wiring Diagrams; Wiring Diagram - TAG;PAS w; RMB Bicycles (2009+); Wiring Diagram - TMM Bicycles

54
55

(Diagram is for representational purpose only. Your bicycle's wiring system may differ)

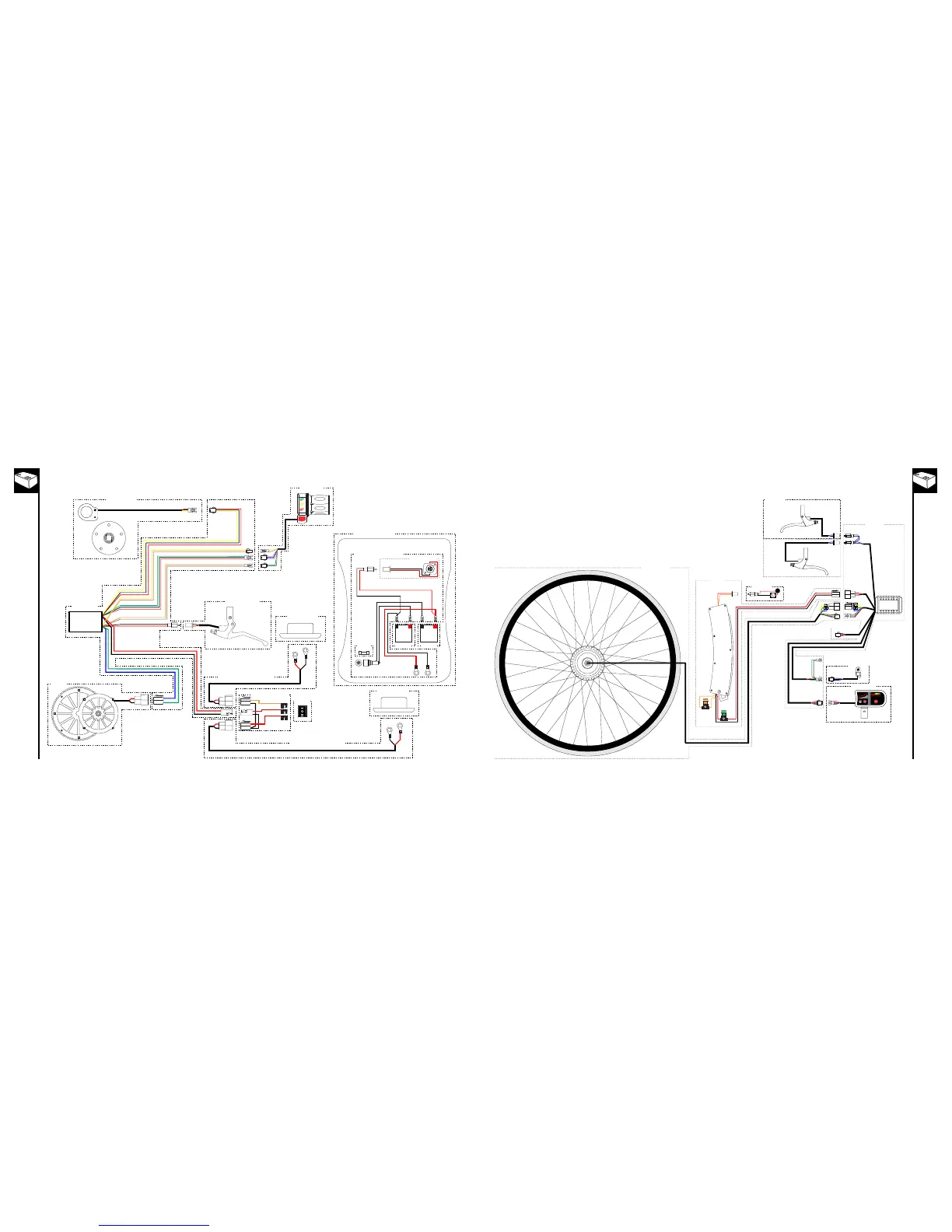

Rack Mount Battery (RMB w/ Controller-n-White Box, SLA Batteries) Bikes (2009 USA) WIRING DIAGRAM
Bikes with serial numbers that start with “DM”
WIRE HARNESS, SWITCH
SWITCH
WIRE HARNESS, BATTERY TERMINAL
WIRE HARNESS, BATTERY TERMINAL
BATTERY TERMINAL
BATTERY TERMINAL
Secondardy Battery Box
(optional)
CADENCE SENSOR
MOTOR
CONTROLLER
THROTTLE
1
2
3
CHARGER PORT
BATTERY CASE (Complete)
BATTERYBATTERY
WIRE HARNESS, BATTERY CASE
FUSE
BRAKE LEVER, LEFT
TAG / PAS
full
half
empty
For updated and new wiring diagrams, please visit www.currietech.com or call our customer service line at 1-800-377-4532
ENLIGHTENEDTMMWIRINGDIAGRAM,rev3
CONTROLLER
5
30
1
2
3
CHARGER PORT
WHEEL (w/ HUB MOTOR)
BATTERY
TMM4SENSOR
TMM METER BOX
PROGRAMMING PORT
BRAKE LEVER
(LEFT)
BRAKE LEVER
(RIGHT) -- for european production
TMM SERVICE PORT

(Diagram is for representational purpose only. Your bicycle's wiring system may differ)
For updated and new wiring diagrams, please visit www.currietech.com or call our customer service line at 1-800-377-4532
