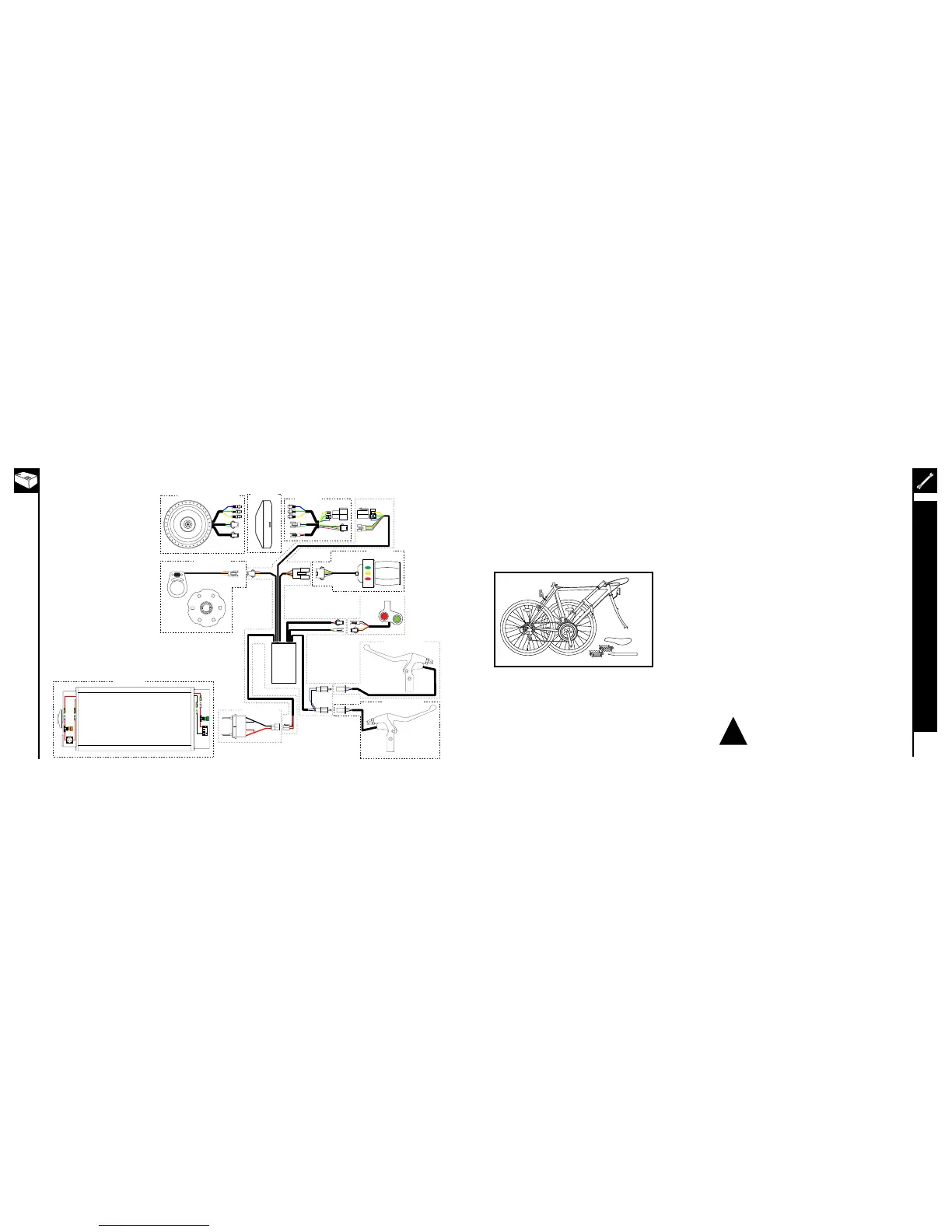

BRAKE LEVER, LEFT
BRAKE LEVER, Right
ON
OFF
PAS
TAG
HANDLEBAR CONTROLS
CADENCE SENSOR
THROTTLE
FULL
HALF
LOW
JUNCTION BOX
CONTROLLER
WHEEL (w/ BRUSHLESS HUB MOTOR)
1
2
3
30
5
BATTERY (RTMB)
BATTERY TERMINAL
WIRE HARNESS
For updated and new wiring diagrams, please visit www.currietech.com or call our customer service line at 1-800-377-4532
(Diagram is for representational purpose only. Your bicycle's wiring system may differ)
Bicycle Assembly
Getting Started
Open the carton from the top and remove the bicycle. Remove the
straps and protective wrapping from the bicycle. Inspect the bicycle
and all accessories and parts for possible shortages. It is recommended
that the threads and all moving parts in the parts package be lubricated
prior to installation. Do not discard packing materials until assembly
is complete to insure that no required parts are accidentally
discarded. Note: Your bicycle may be equipped with different style
components than the ones illustrated.
specialist if you have doubts or concerns
as to your experience or ability to properly
assembly, repair, or maintain your bicycle.
!
Assembly Guides
Individual assembly guides for each bicycle model can be found packaged with your bicycle, or viewed online by visiting
www.currietech.com and clicking on the page for your model.
PART 4 - ASSEMBLY
To Next Page
