Connections

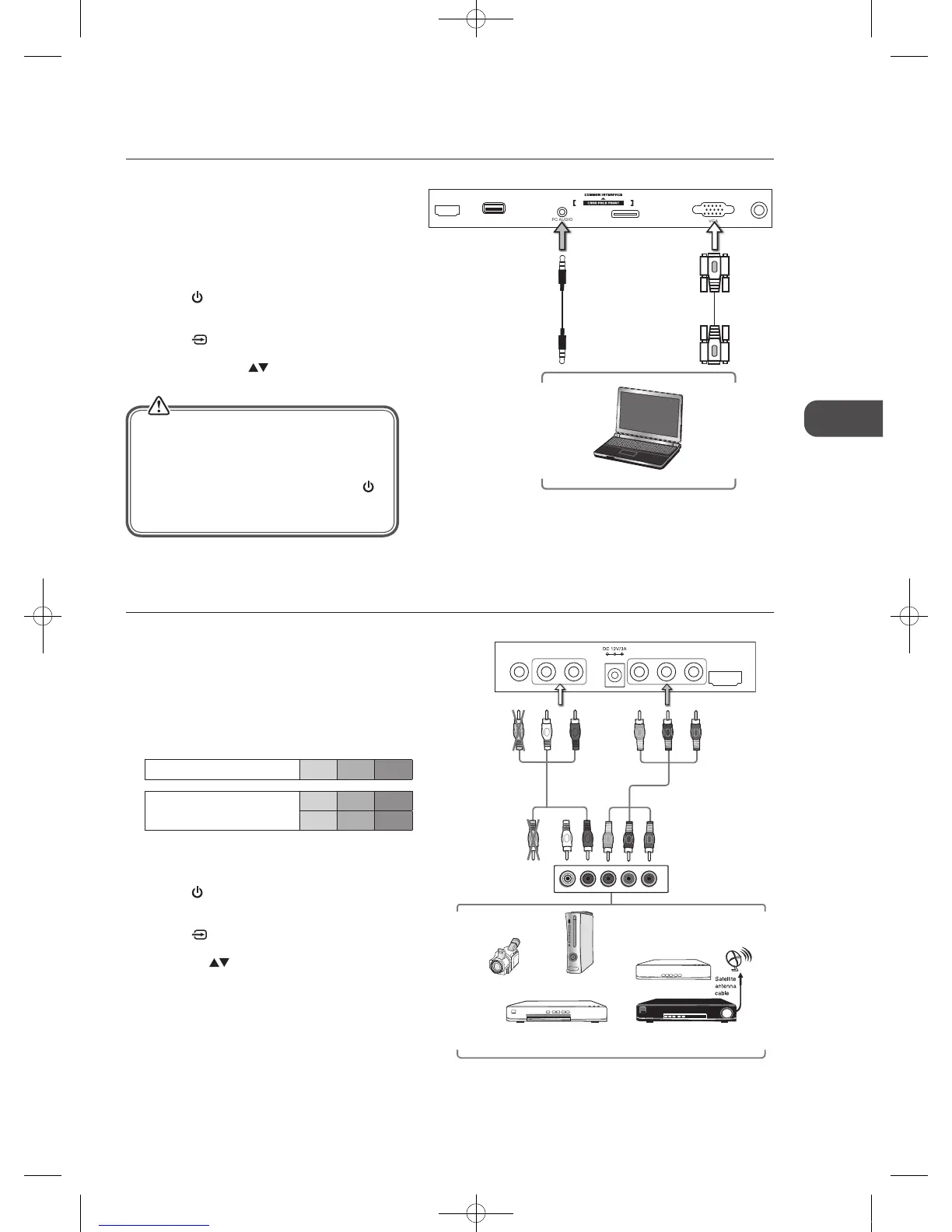

Connecting an AV Device with a Component (YPbPr) Cable
1. Use a component cable to connect the TV’s YPbPr
input sockets to an external AV device’s component
output sockets.
2. Use an AV cable to connect the TV’s AUDIO(L/R) input
sockets to the external AV device’s component audio
output sockets. (Audio Left = white, and Audio Right
= red)
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
3. Plug the connected devices into the mains socket
before switching on the TV.
4. Press the
button on the right side panel of the TV
or on the remote control to turn on your TV.
5. Press the
button on the right side panel of the TV
or on the remote control to display the Input Source
List. Use the
buttons to select YPbPr and then
press the OK button to confirm.
Connecting a Computer with a VGA Cable
1. Use a VGA cable to connect the TV’s VGA input
socket to a computer’s VGA output socket. Use an
audio cable to connect the TV’s PC AUDIO input
socket to the computer’s audio output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right side panel of the
TV or on the remote control to turn on your TV.
4. Press the
button on the right side panel of the
TV or on the remote control to display the Input
Source List. Use the
buttons to select PC and
then press the OK button to confirm.
Rear Right Side View of TV
Computer
HDMI 1
USB
PC AUD IO
VGA RF
SCAR T
VGA Cable
(not included)
Audio Cable
(not included)
• The best resolution is 1366 x 768.
• If your computer is set to shut down after a
few minutes of idle mode, the TV will also
switch to standby due to no signal being
received, this is to save energy. Press the
button on the right side panel of the TV or
on the remote control to restart the TV.
Satellite Receiver
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
L
R
COMPONENT
OUT
Y
Pr
Pb
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
Component Cable
(not included)
Pb/Cb
Pr/Cr
Y
Pb/Cb
Pr/Cr
Y
VIDEO L R Y
Pb
Pr
HDMI 2
Rear Right Bottom View of TV
