GB
14
Connections

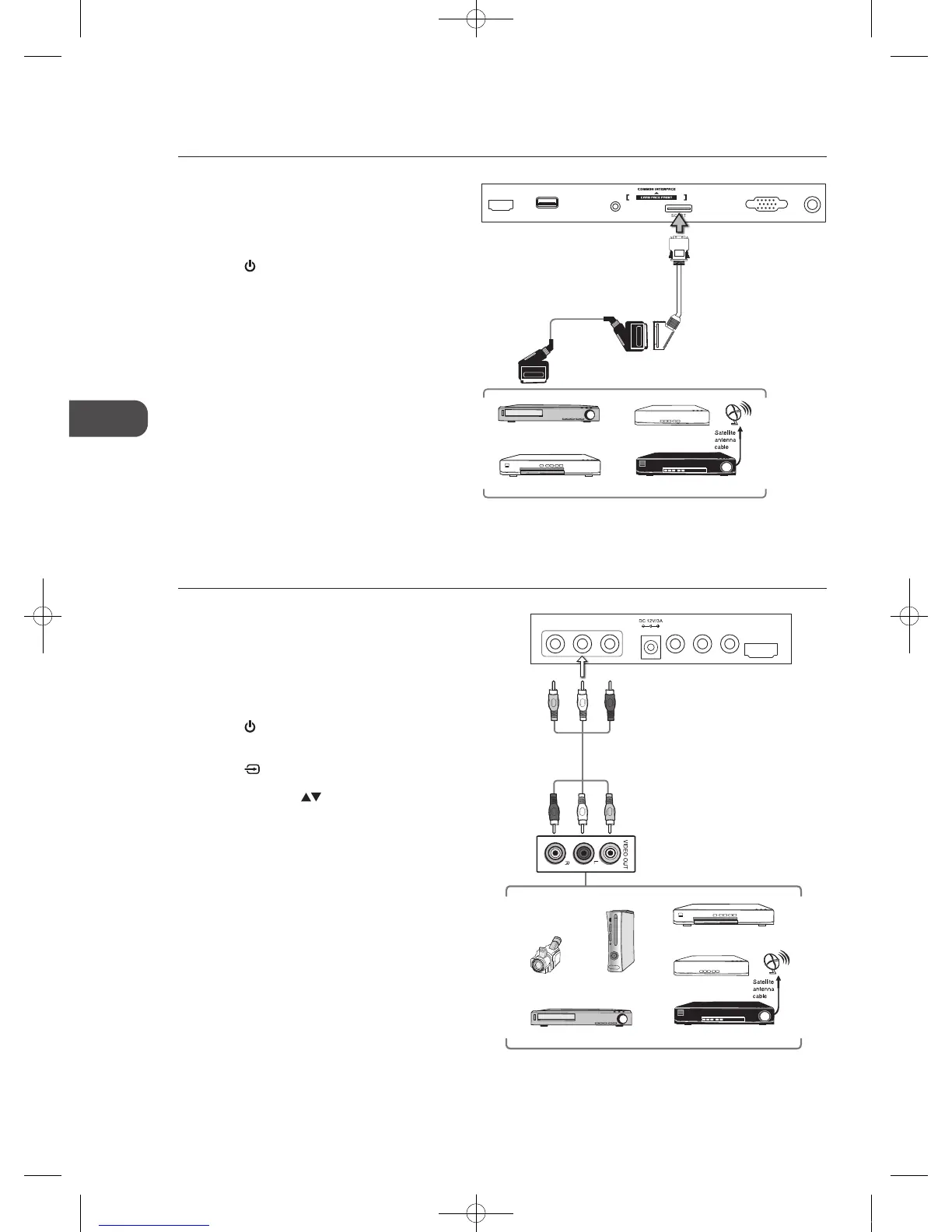

Connecting an AV Device with Composite Cable
1. Use an AV cable to connect the TV’s AUDIO(L/R)
/ VIDEO input sockets to the external AV device’s
composite audio / vedio output sockets. (VIDEO =
yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right side panel of the
TV or on the remote control to turn on your TV.
4. Press the
button on the right side panel of the
TV or on the remote control to display the Input
Source List. Use the
buttons to select AV and
then press the OK button to confirm.
Connecting an AV Device with a SCART Cable
1. Use a SCART cable to connect the TV’s SCART adapter
cable to an external AV device’s SCART output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right side panel of the TV
or on the remote control to turn on your TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Rear Right Side View of TV
HDMI 1
USB
PC AUD IO
VGA RF
SCAR T
SCART Cable
(not included)
Satellite Receiver
VCR
DVD Player / Recorder
Set-top Box
SCART Adapter Cable
(included)
Satellite Receiver
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
VIDEO L R Y
Pb
Pr
HDMI 2
Rear Right Bottom View of TV
