Curtis PMC 1204/1205 Manual
Power wiring for mechanical reversing switch (golf car type)
As shown in Figure 9, this type of switch mechanically interchanges the
two motor field cables by rotating a movable contact bar. The configura-
tion shown is typical; many variations are in use.

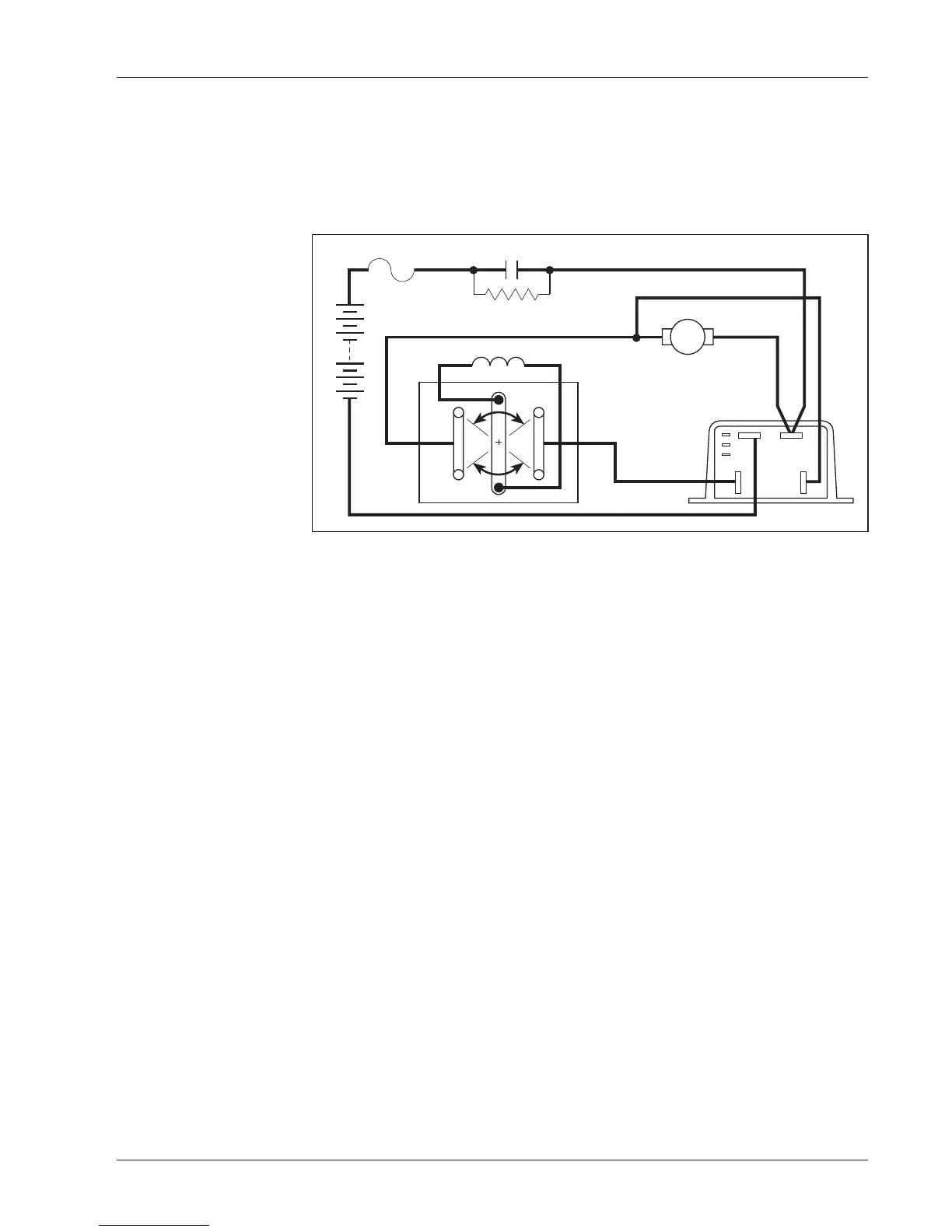

Fig. 9 Power wiring
for reversing
with mechanical
forward/reverse
switch arm.
MAIN
PRECHARGE RESISTOR
(250 Ω, 5 W)
FUSE
B-
B+
M-
A2
S2
S1
+
–
A2
A1
WIRING
