14
Curtis 1244 Manual, Rev. E
2 — INSTALLATION & WIRING: Throttle

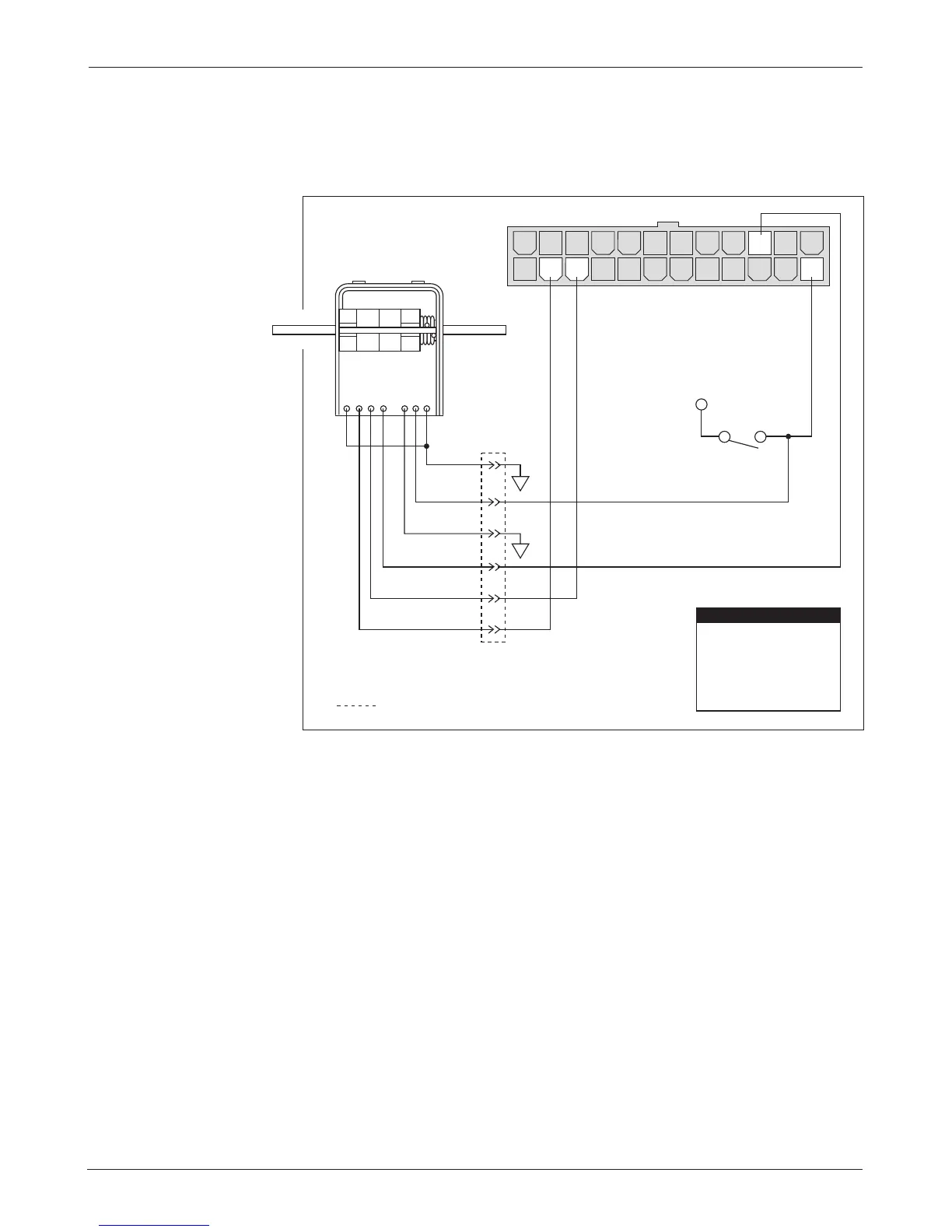

Fig. 9 Wiring for Curtis
ET-XXX electronic throttle
(“Type 2”).
Curtis ET-XXX Electronic rottle
e Curtis ET-XXX provides a 0–5V throttle and forward/reverse inputs for
the 1244 controller. Wiring for the ET-XXX is shown in Figure 9.
e ET-XXX can be integrated into a control head to provide wigwag-style
throttle control. Alternatively, a complete control head assembly is available
from Curtis. is control head assembly—the CH series—combines the ET-
XXX throttle with a variety of standard control head switch functions for use
in walkie and lift truck applications.
14 1315161718192021222324
12 11 10 9 8 7 6 5 4 3 2 1
GREEN
ORANGE
BLACK
BLACK/WHITE
WHITE
WHT/BRN
B+
KEYSWITCH
connector
WHT/
GRN
Pin 15
Pin 11
Pin 10
Pin 1
0–5V Input
Reverse
Forward
KSI Input
PIN KEY
B-
ET-XXX
B-
