APPENDIX A - ACCESSORIES AND SPARE PARTS
KPM216H
3A-

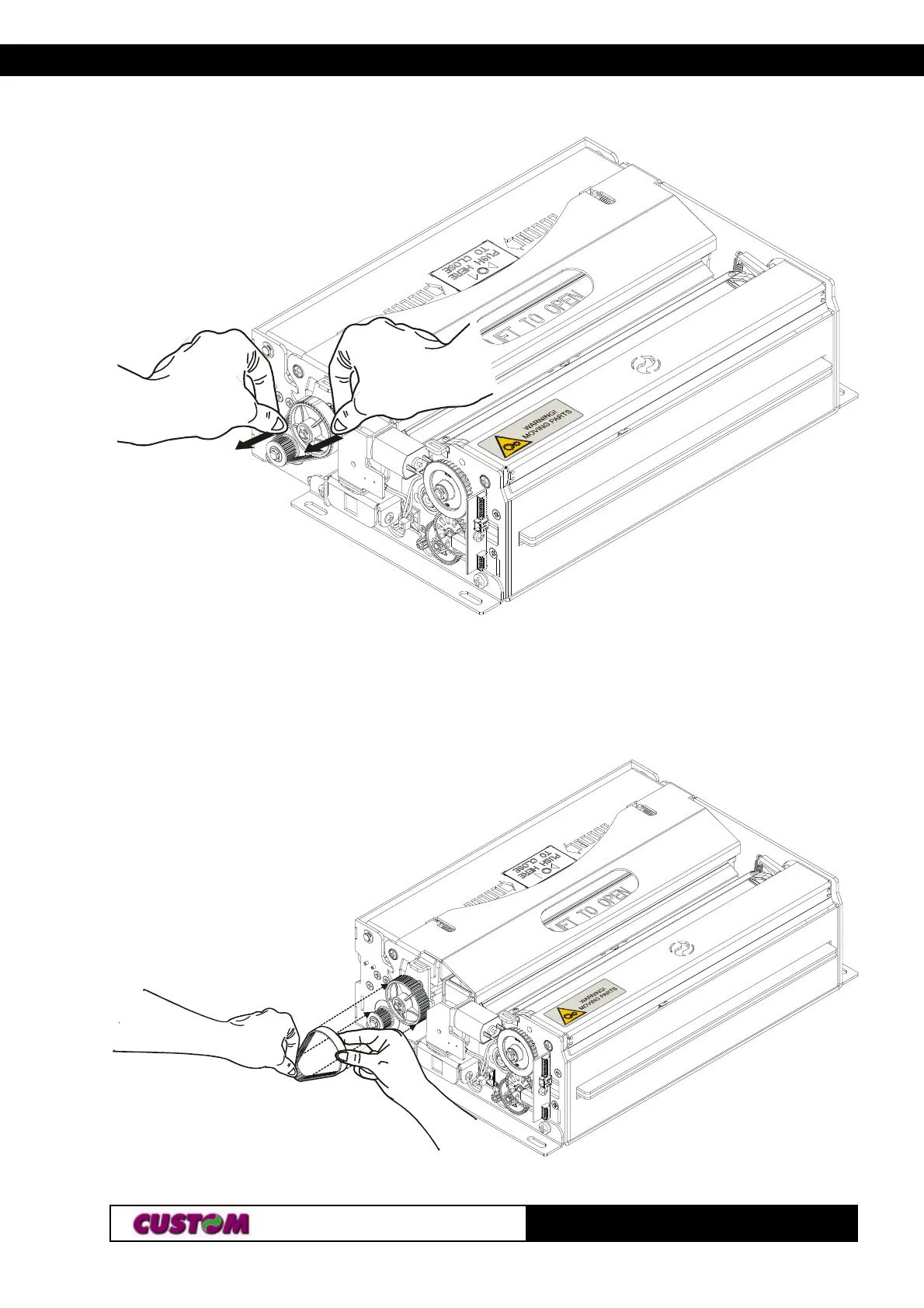

2) Remove the belt, between the two pulleys, from its seating as shown in fig. A.2.
3) Replace the belt and place it again between the two pulleys in its seating, as shown in fig.
A.3.
(Fig.A.2)
(Fig.A.3)
