PT-3000

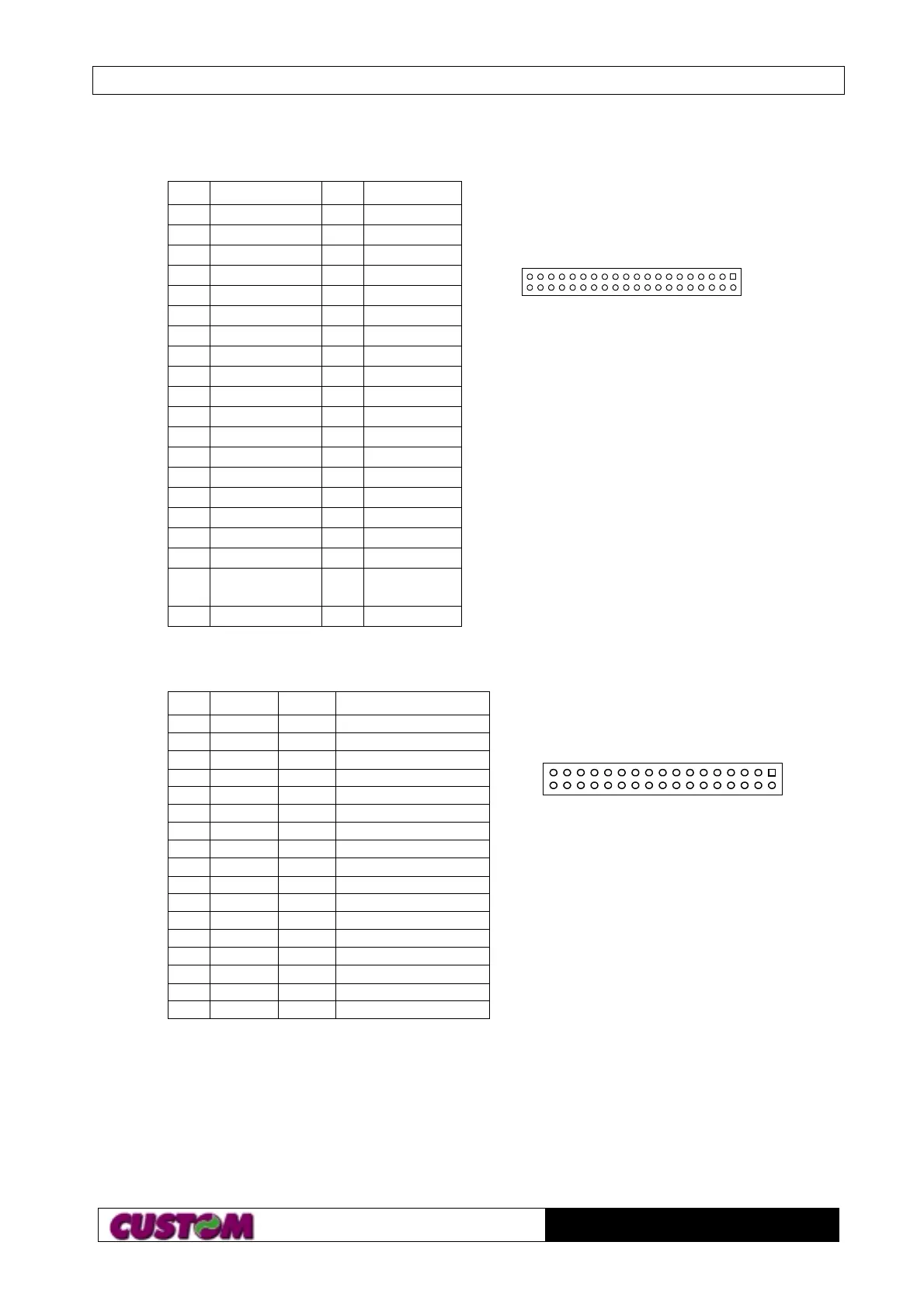

1.3.10 JP5: Master IDE Connector (40 pin)
Pin Signal Pin Signal
1IDE RESET2 GND
3DATA 74DATA 8
5DATA 66DATA 9
7DATA 58DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 SIGNAL GNA 20 N/C
21 HDD 0 22 GND
23 IO WRITE 24 GND
25 IO READ 26 GND
27 DH READY 28 N/C
29 HDACK 0 30 GND
31 IRQ14 32 N/C
33 ADDR 1 34 N/C
35 ADDR 0 36 ADDR 2
37
HARD DISK
SELECT 0
38
HARD DISK
SELECT 1
39 IDE ACTIVE 40 GND
1.3.11 J9: Floppy Drive Connector (34 pin)
Pin
Signal
Pin Signal
1 GND 2 DENSITY SELECT
3GND 4 N/C
5 GND 6 DRIVE TYPE
7 GND 8 INDEX
9 GND 10 MOTOR 0
11 GND 12 DRIVE SELECT 1
13 GND 14 DRIVE SELECT 0
15 GND 16 MOTOR 1
17 GND 18 DIRECTION
19 GND 20 STEP
21 GND 22 WRITE DATA
23 GND 24 WRITE GATE
25 GND 26 TRACK 0
27 GND 28 WRITE PROTECT
29 GND 30 READ DATA
31 GND 32 HEAD SELECT
33 GND 34 DISK CHANGE
2
1
34
33
1
2
39
40
