PT-3000

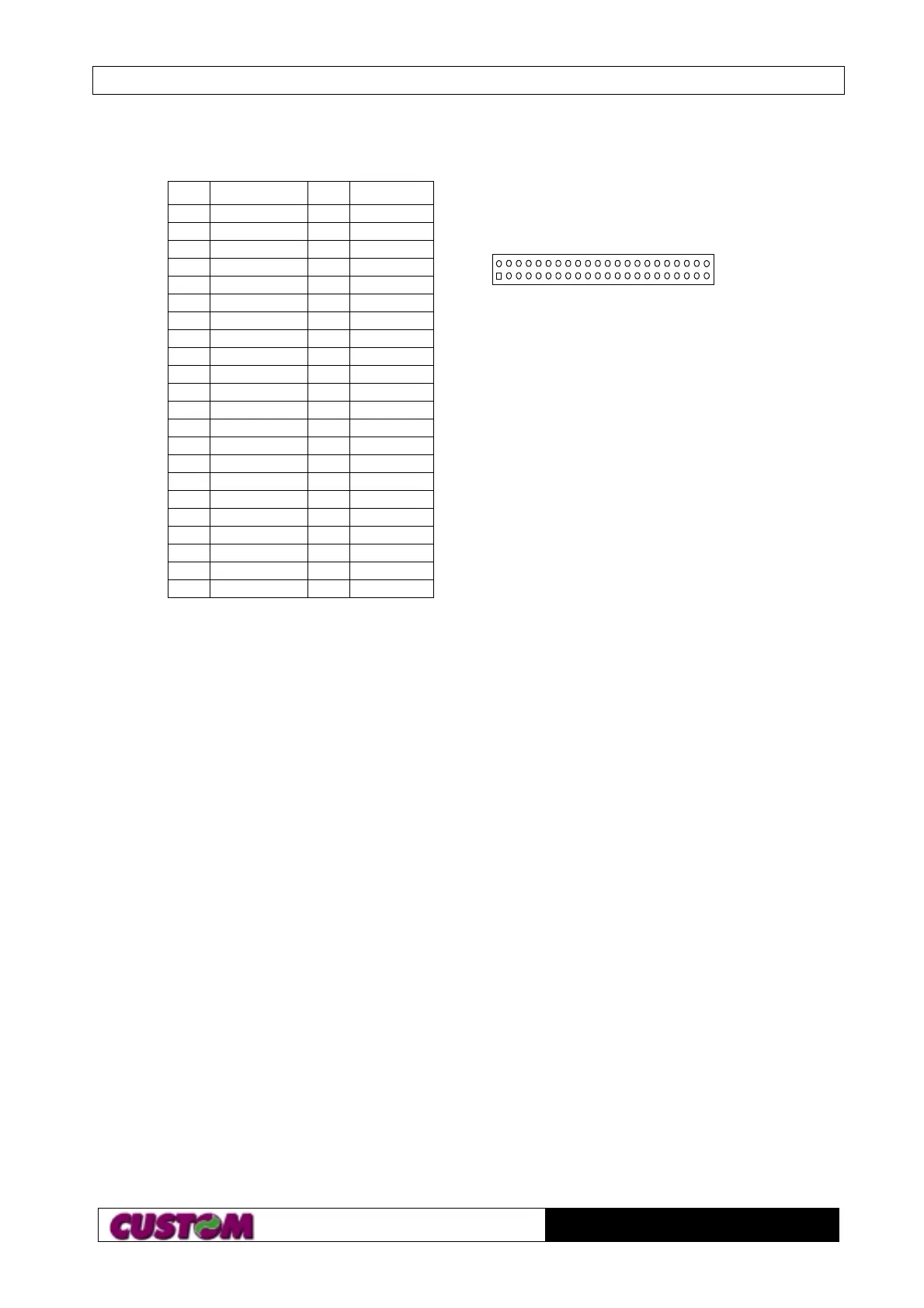

1.3.18 CN2: LCD Connector
Pin Function Pin Function
1+12V2+12V
3 GND 4 GND
55V/3.365V/3.3
7ENAVEE8 GND
9P010P1
11 P2 12 P3
13 P4 14 P5
15 P6 16 P7
17 P8 18 P9
19 P10 20 P11
21 P12 22 P13
23 P14 24 P15
25 P16 26 P17
27 P18 28 P19
29 P20 30 P21
31 P22 32 P23
33 GND 34 GND
35 SHFCLK 36 FLM
37 M 38 LP
39 GND 40 ENABKL
41 GND 42 ASHFCLK
43 ENAVDD 44 5V/3.3
44
43
2
1
