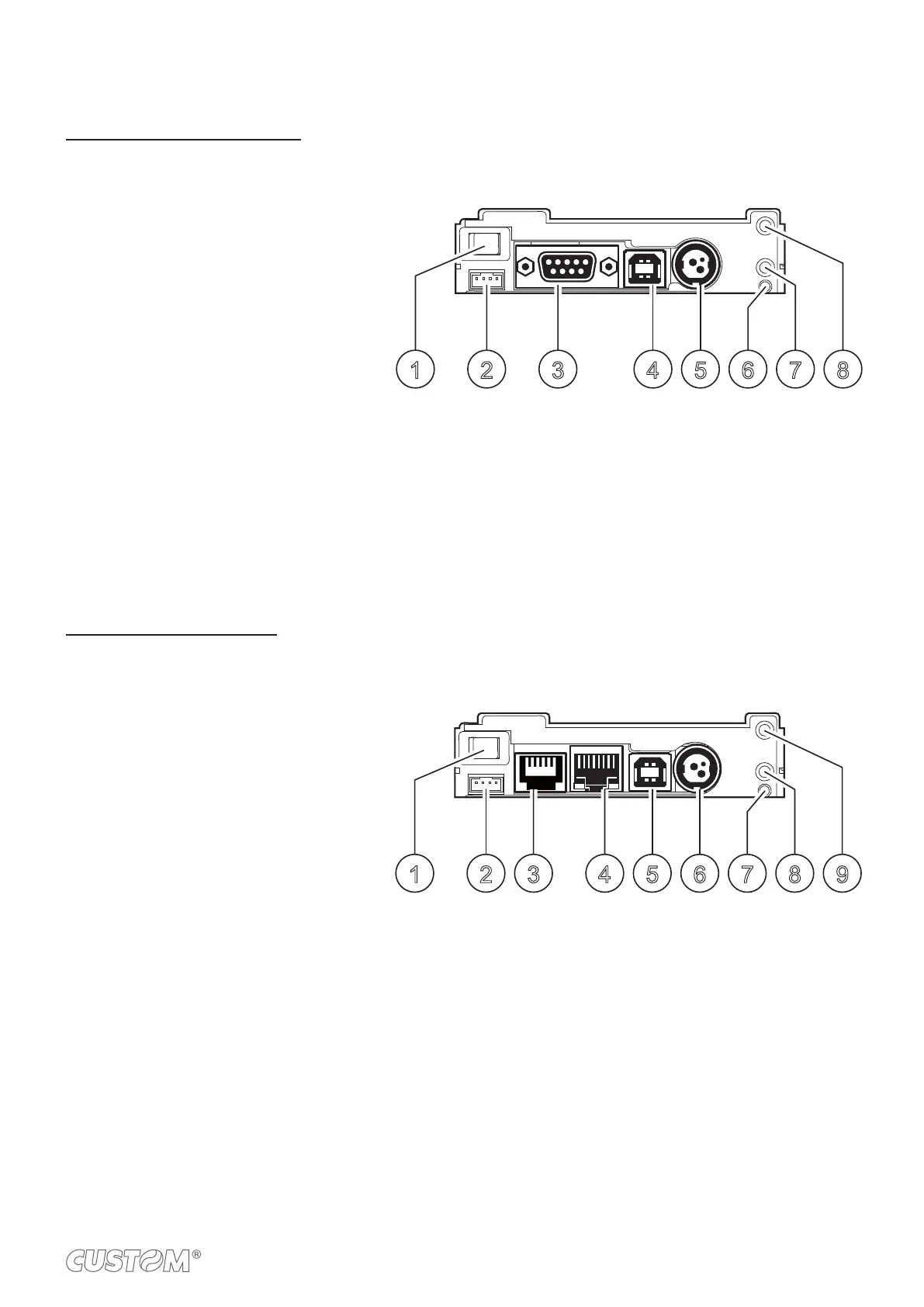

2.3 Device components: keys and connectors panel
Models without ETHERNET port
1. ON/OFF key (only for KPM180H
and metallic TK180)
2. Connector for low paper sensor
(external)
3. RS232 serial port (DB9)
4. USB port
5. Power supply port
6. Status LED
7. FF FORM FEED key
8. LF LINE FEED key
21 3 4 5 6 7 8
Models with ETHERNET port
1. ON/OFF key (only for KPM180H
and metallic TK180)
2. Connector for low paper sensor
(external)
3. RS232 serial port (RJ45)
4. ETHERNET port
5. USB port
6. Power supply port
7. Status LED
8. FF FORM FEED key
9. LF LINE FEED key
21 3 4 5 6 7 8 9
