Custom Audio Electronics TK180 User Manual

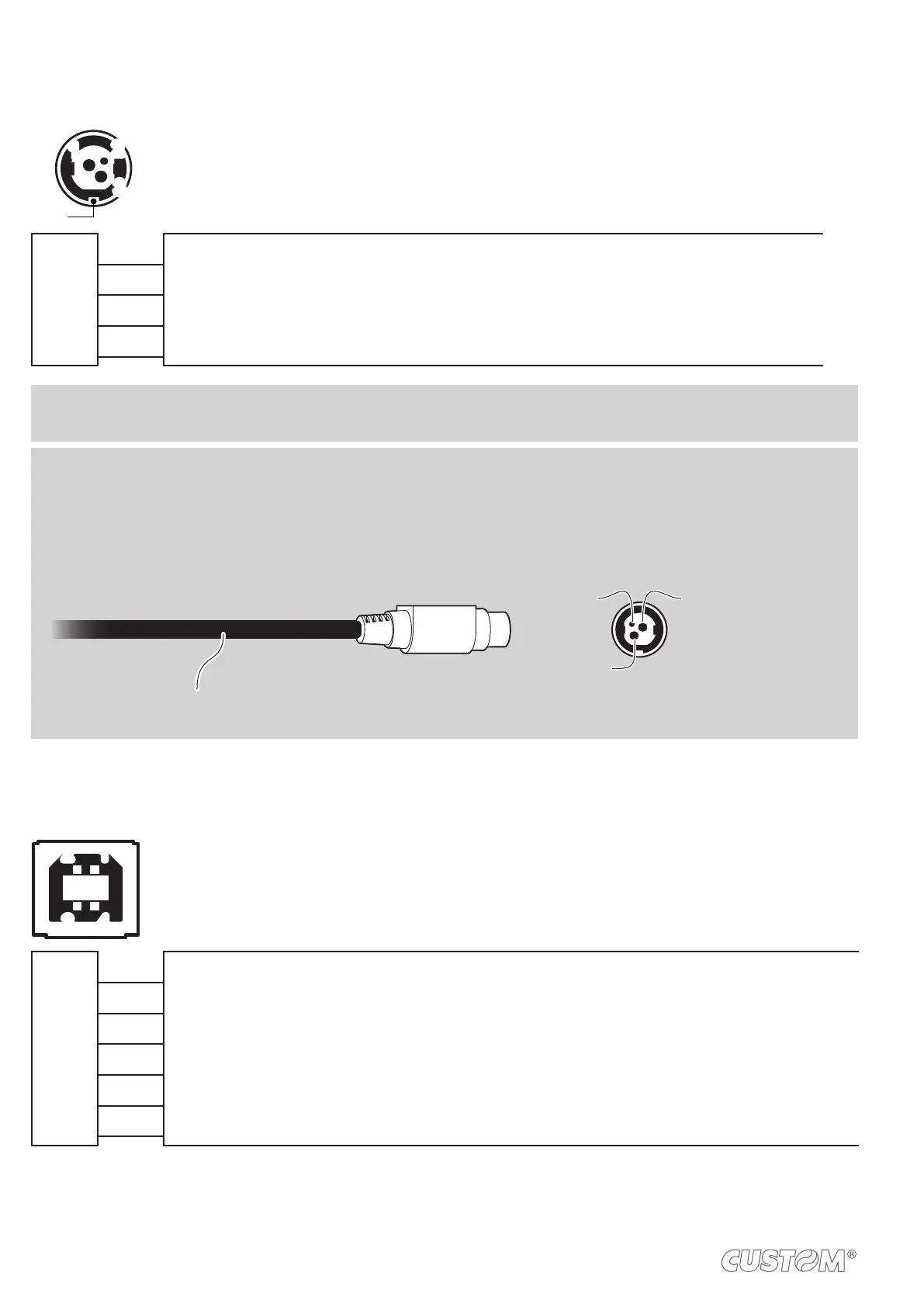

3.4 Pinout
2
1
3
4
POWER SUPPLY
Tripolar female connector
J20
1 GND
2 +24 Vdc
3 GND
4 Frame GND
ATTENTION:
Respect power supply polarity.
NOTE:
Power supply cable

Tripolar male connector
Power supply cable
+24 Vn.c.
GND
12
3 4
USB INTERFACE
Female USB type B connector
J2
1 USB0-VBUS (in)
2 USB0_D- (in/out)
3 USB0_D+ (in/out)
4 GND
SH1 SHIELD
SH2 SHIELD
36
