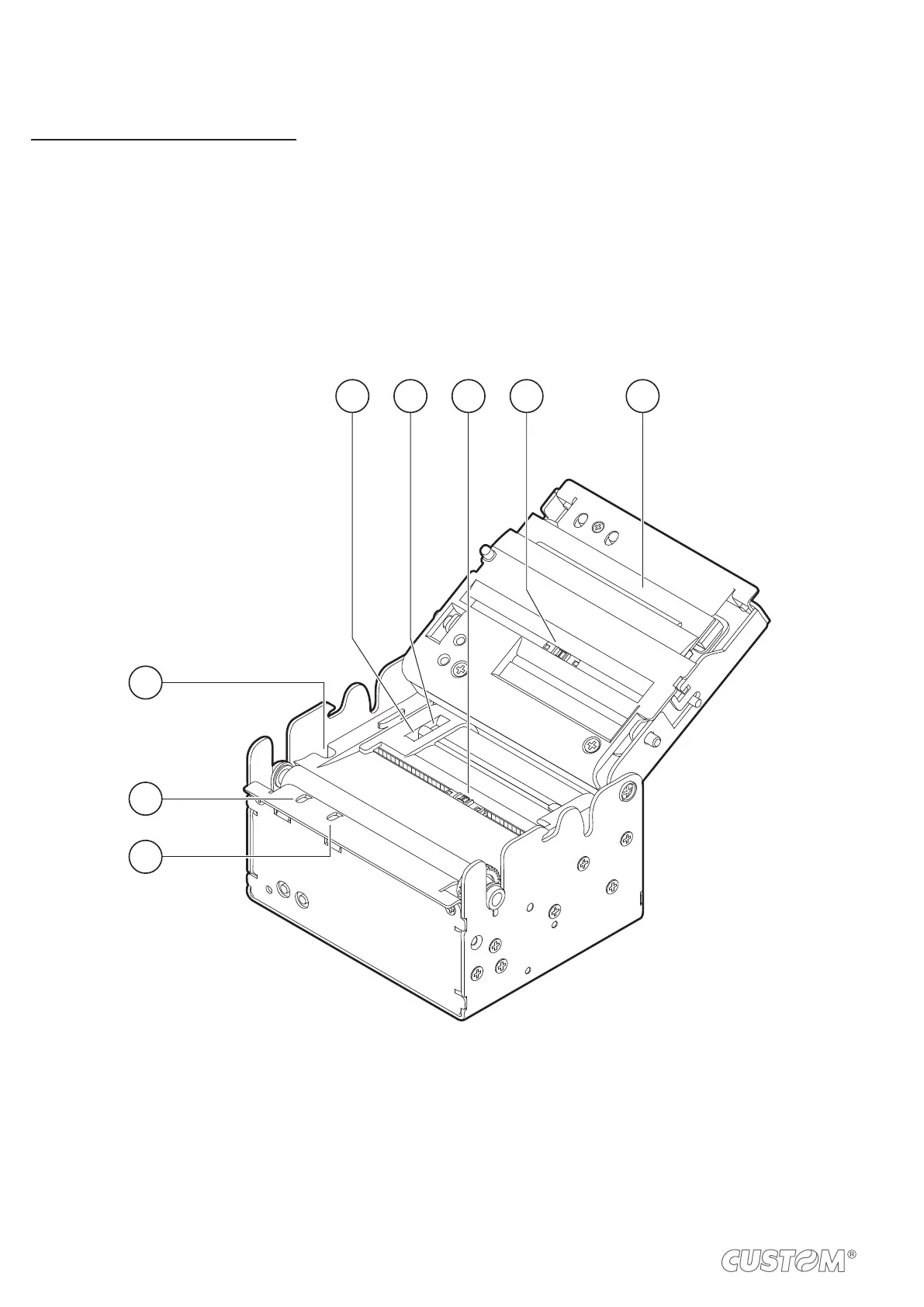

2.4 Device components: internal views
KPM180H (standard models), TK180
1. Printing head with temperature sensor
2. Top mobile sensor for detecting black mark on the thermal side of paper or hole between tickets
3. Bottom mobile sensor for detecting black mark on the thermal side of paper or hole between tickets
4. Sensors for detecting paper in presence
5. Sensor for cover opening detection
6. Sensors for detecting paper out presence
