9.1 Enable alignment

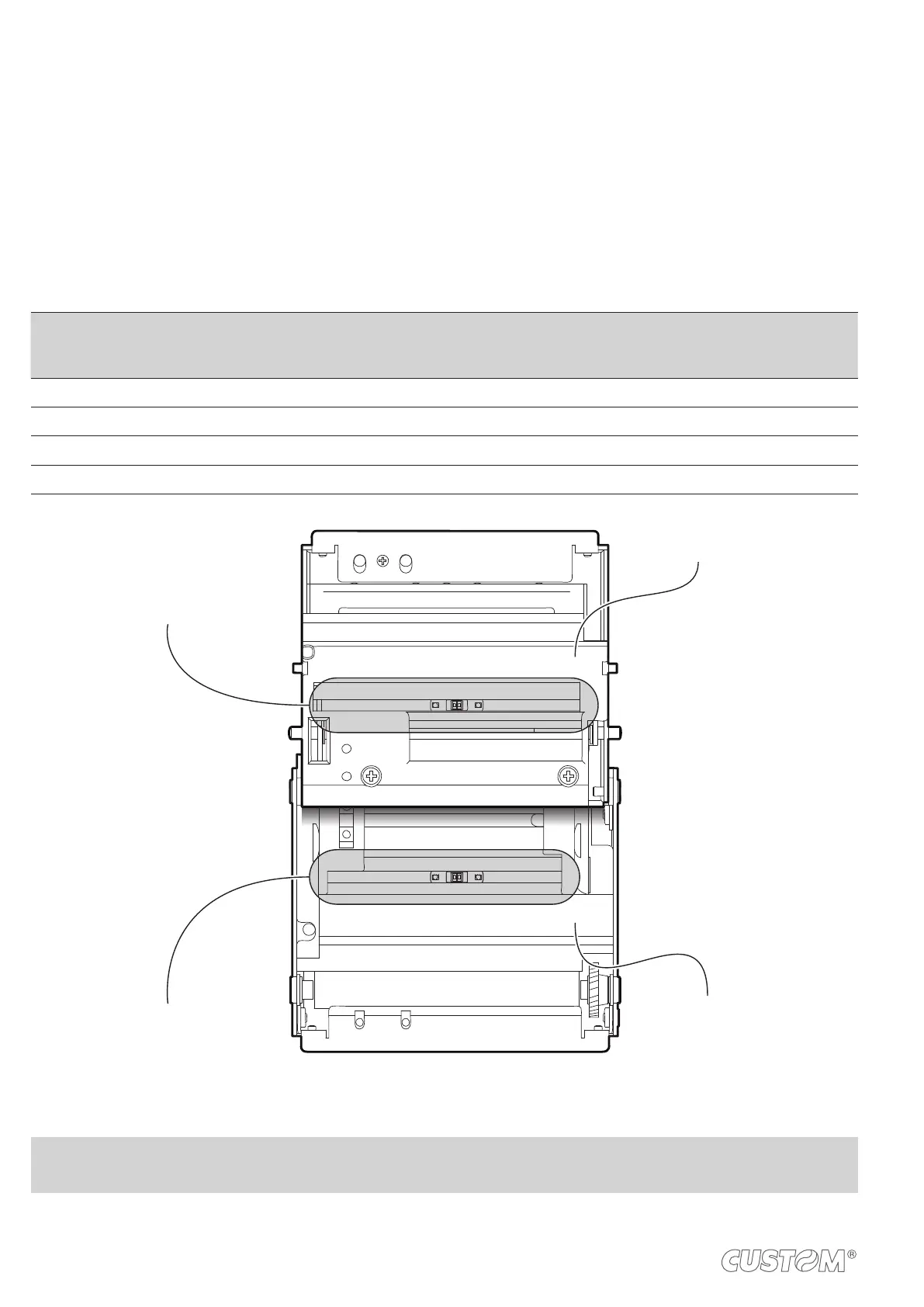

Device is provided with two sensors for alignment, placed as follows:
To guarantee the alignment, it is necessary to correctly choose the sensor to use for the notch detection depending on the
type of notch and its location on the ticket.
To do this, you must enable the parameter “Notch/B.Mark Position” during the Setup procedure (see chapter 5) and set
the correct value of this parameter as described in the following table.
SENSOR
USED
VALUE OF THE
“NOTCH/B.MARK POSITION”
PARAMETER
USING MODE
OF SENSORS
NOTCH TYPE
- Disabled - Alignment disabled
1 Bottom Black mark printed on the non-thermal side of paper
2 Top Black mark printed on the thermal side of paper
1 + 2 Transparent Transparence Hole between tickets
SENSOR 1
SENSOR 2
lower flat
upper flat
For some models, only the internal printer group is represented.
