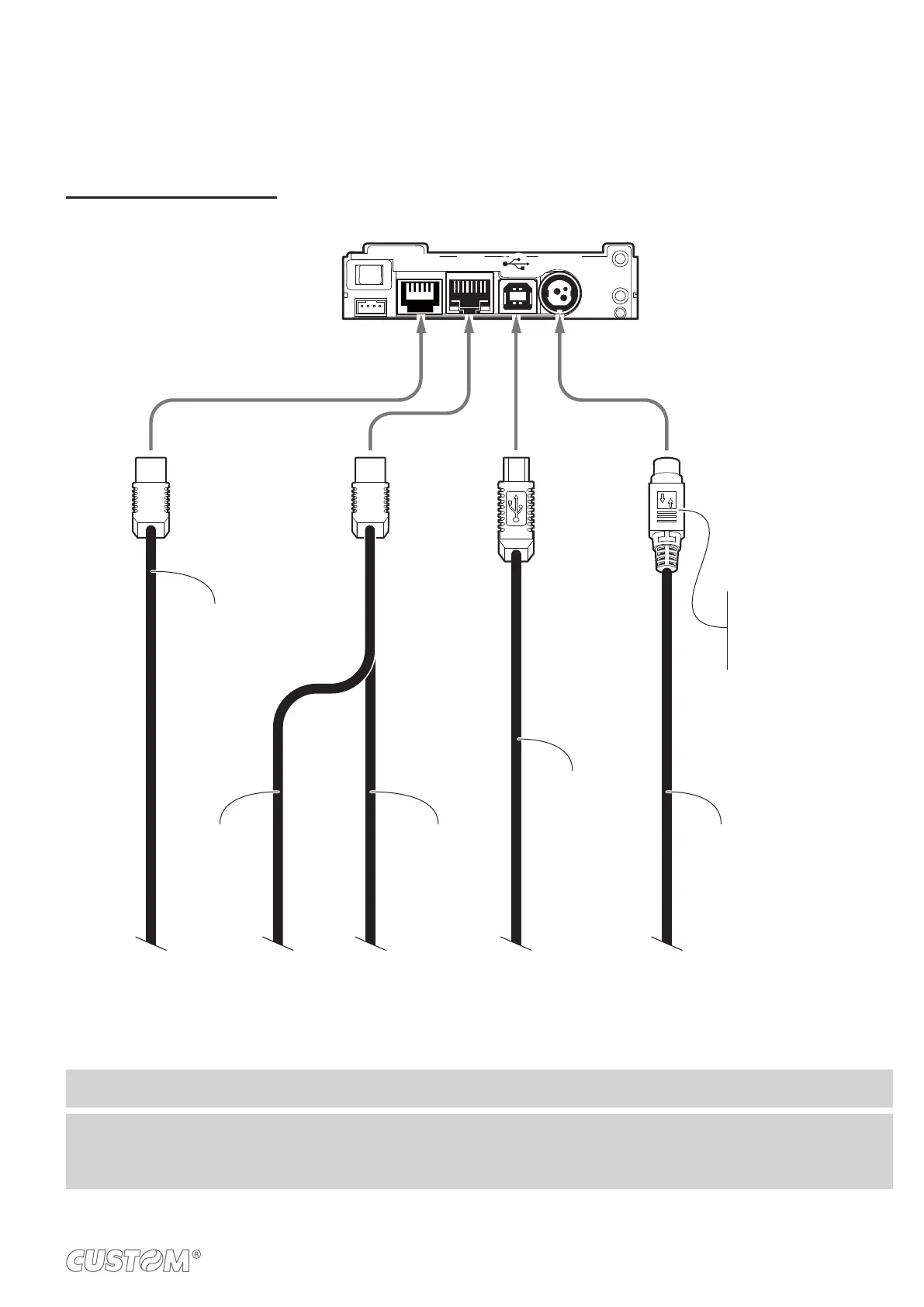

Models with ETHERNET port
POWERRS232 ETH
Power supplyHUBPCPC
serial device
PC
USB device
ETHERNET UTP
standard cable
(pin-to-pin)
Power supply
cable
(supplied
with TK180)
USB
standard cable
(supplied with
metallic TK180)
ETHERNET
CrossOver
standard cable
Serial cable
(for available
serial cables,
see chapter 8)
Correctly insert the
power supply
connector (see
following paragraphs)
ATTENTION: In some conditions, we recommend the installation of a ferrite core on the power supply cable.
NOTES: If serial and USB connectors are inserted, communication port is USB.
For some models, only the internal printer group is represented.
