Custom Audio Electronics TL60 User Manual

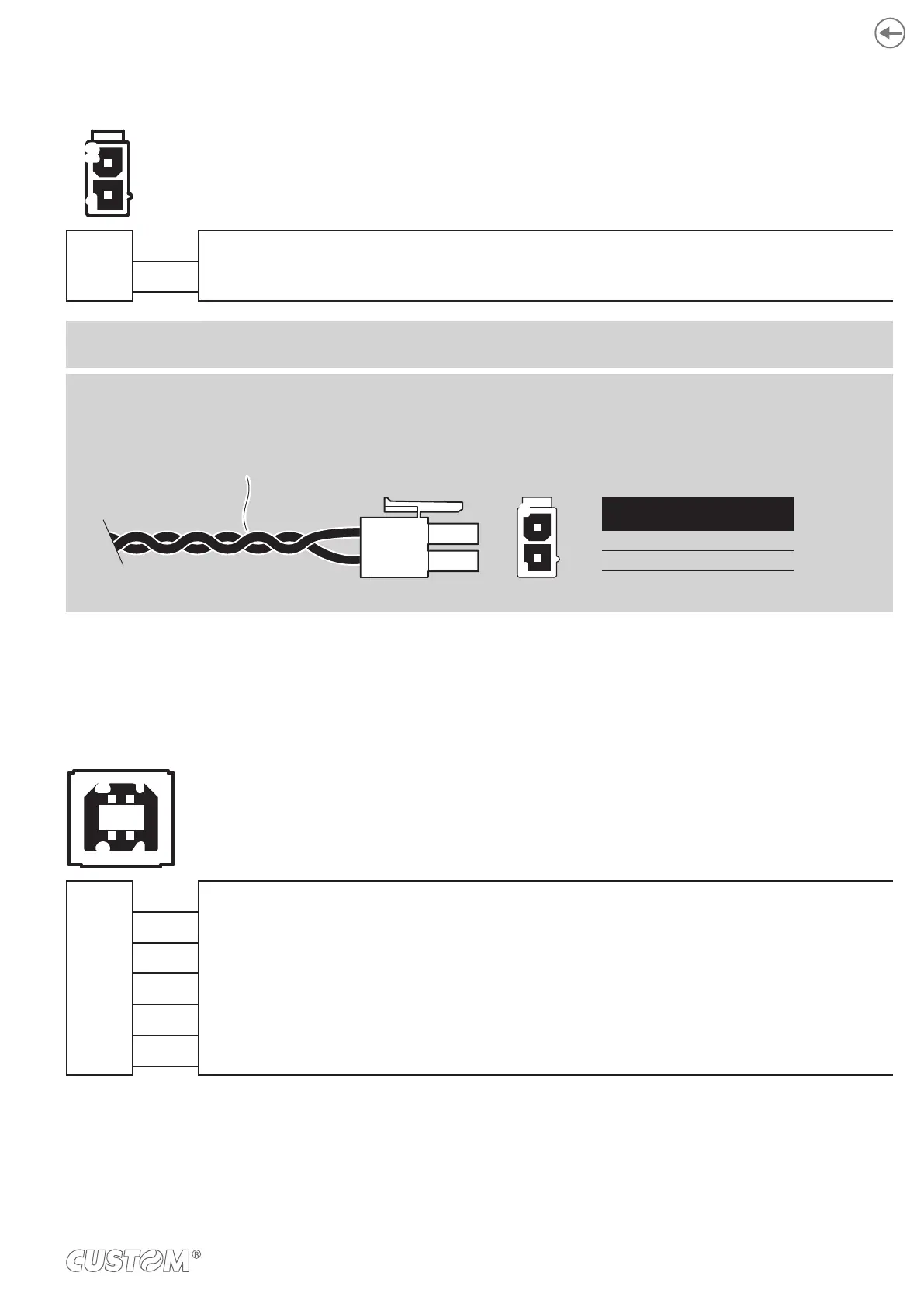

4.4 Pinout
1
2
POWER SUPPLY
Male Molex connector series 5569 vertical (n° 39-30-1020)
J14
1 +24 Vdc
2 GND
ATTENTION:
Respect power supply polarity.
NOTE: Power supply cable

Female Molex connector
series 5557 (n.39-01-3022)
GNDBlack 2
SignalCable
color
PIN
+24VRed
1
Power supply cable
1
2
12
3 4
USB INTERFACE
Female USB type B connector
J1
1 USB-ON (in)
2 D0 - (in/out)
3 D0 + (in/out)
4 GND
SH1 SHIELD
SH2 SHIELD
27
