Custom Audio Electronics TL60 - Device Components

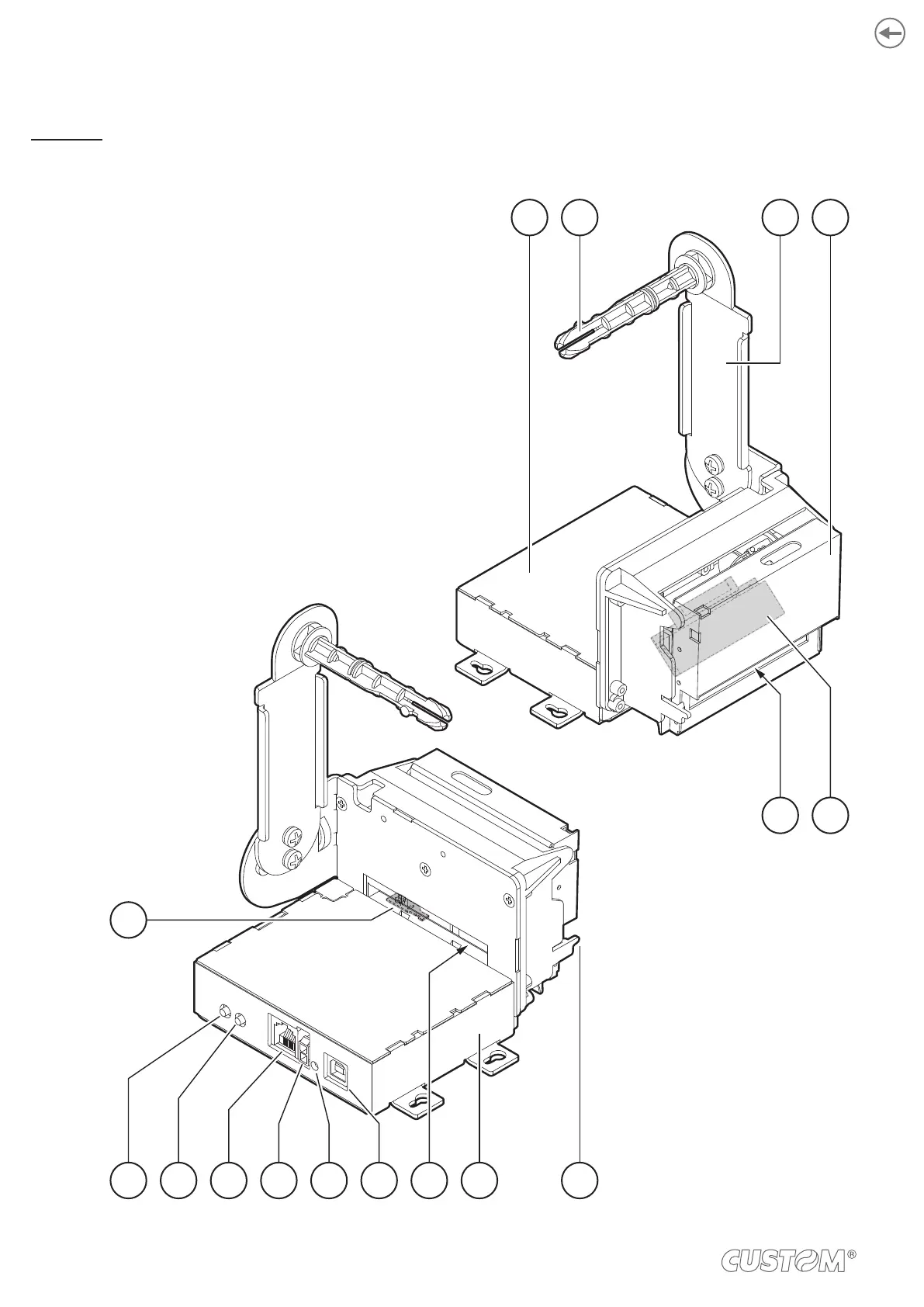

3.2 Device components
TL60 STD
1. Board cover
2. Paper roll holder pin
3. Paper roll holder
4. Cutter group
5. Printing head
6. Paper out
7. Unlocking hook for cutter group
8. Device chassis
9. Paper in
10. USB port
11. Status LED
12. Power supply port
13. Serial port
14. FEED key
15. PRINT key
16. Paper in presence
and black mark sensor
21 43
5
15 14 13 12 11 10 789
6
16
14
