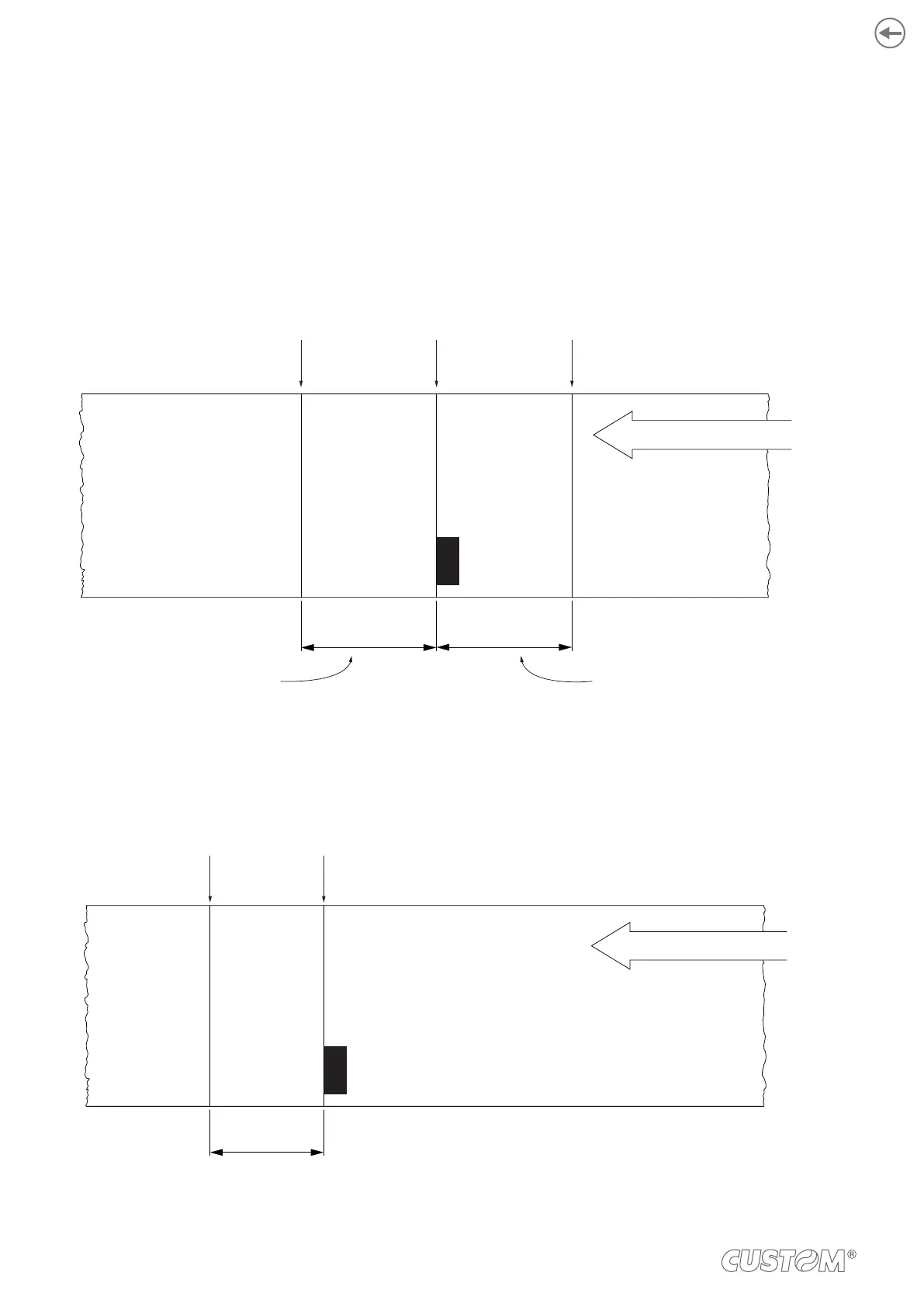

11.2 Alignment parameters
Referring to the front of the black mark, the value of “B. Mark Distance” varies from -99.9 mm minimum and +12.9 mm
maximum.
If the “B. Mark Distance” value is set to 0, the alignment point is set at the beginning of the black mark.
0
-
PRINTING DIRECTION
+
negative values
of “B. Mark Distance”
positive values
of “B. Mark Distance”
Alignment
point
Alignment
point:
black mark front
Alignment
point
Mark Distance” = + A):
0
A+
Alignment
point
Black mark
front
PRINTING DIRECTION
