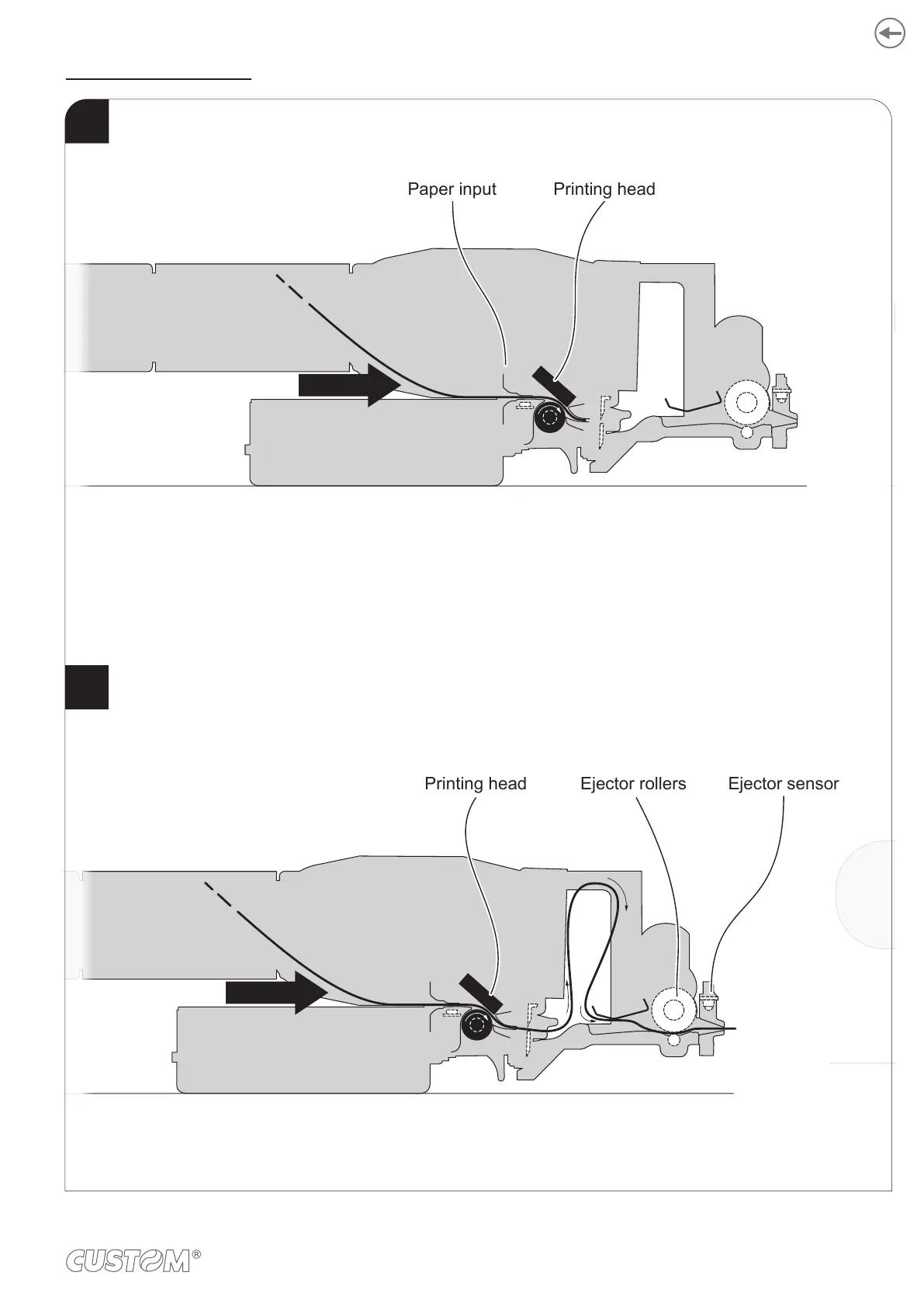

“EJECT” mode (TL60 EJ)
The device starts the ticket printing.
Paper input Printing head
Ejector rollersPrinting head Ejector sensor
The ticket advances ahead to engage the ejector sensor and is caught between the ejector rollers. The printed portion
of ticket is collected in the space between cutter and ejector while the device continues printing.
1
2
