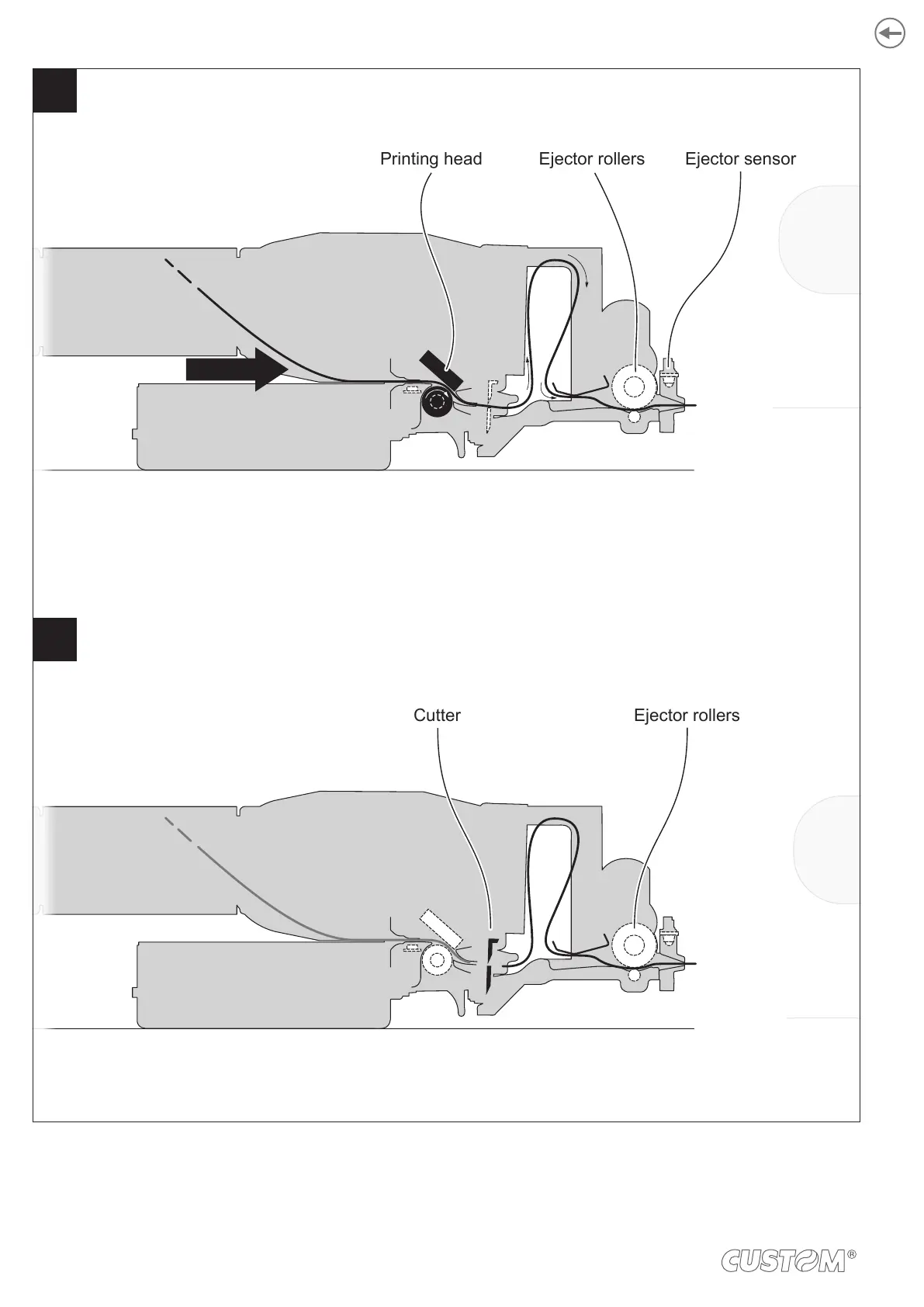

Ejector rollers
Printing head Ejector sensor
The ticket advances ahead to engage the ejector sensor and is caught between the ejector rollers. The printed portion
of ticket is collected in the space between cutter and ejector while the device continues printing.
When printing ends, the device cuts the ticket printed.
Cutter
Ejector rollers
2
3
46
