Network Setup
96

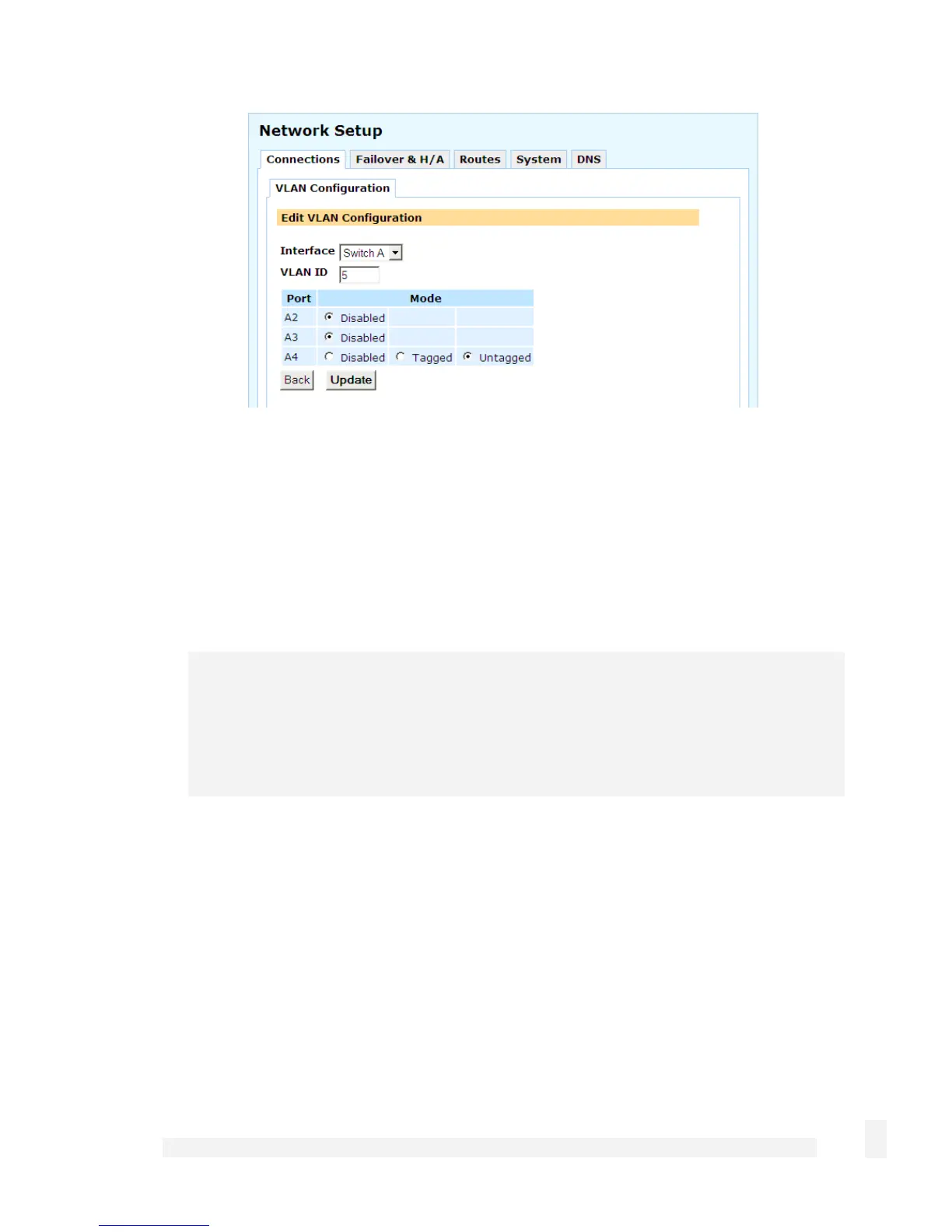

The following settings are displayed:
• Interface: The port based VLAN capable interface on which to add the VLAN.
• VLAN ID: If you are adding a VLAN interface to participate on an existing VLAN, enter
its ID number here. Otherwise enter the next available VLAN ID; if the Default port
based VLAN ID has been left at its default setting of 2, Port A2 uses VLAN ID 3, Port
A3 uses VLAN ID 4, and so on.
Note
Some Cisco equipment uses tagged VLAN 1 for its own purposes. We therefore
recommend setting the default VLAN ID to 2 or greater for tagged VLANs, unless you
intend for the CyberGuard SG appliance and Cisco equipment to interact over tagged
VLAN 1.
• Mode: This is where you associate one or more of switch A’s ports with this VLAN
interface. Select Disabled for the ports to exclude from this VLAN. If you are
configuring a port or ports to participate on an existing tagged VLAN, set them
Tagged. Otherwise, to isolate a single port so that it may be configured individually,
set the port Untagged.
