1.4 Mechanical Dimension

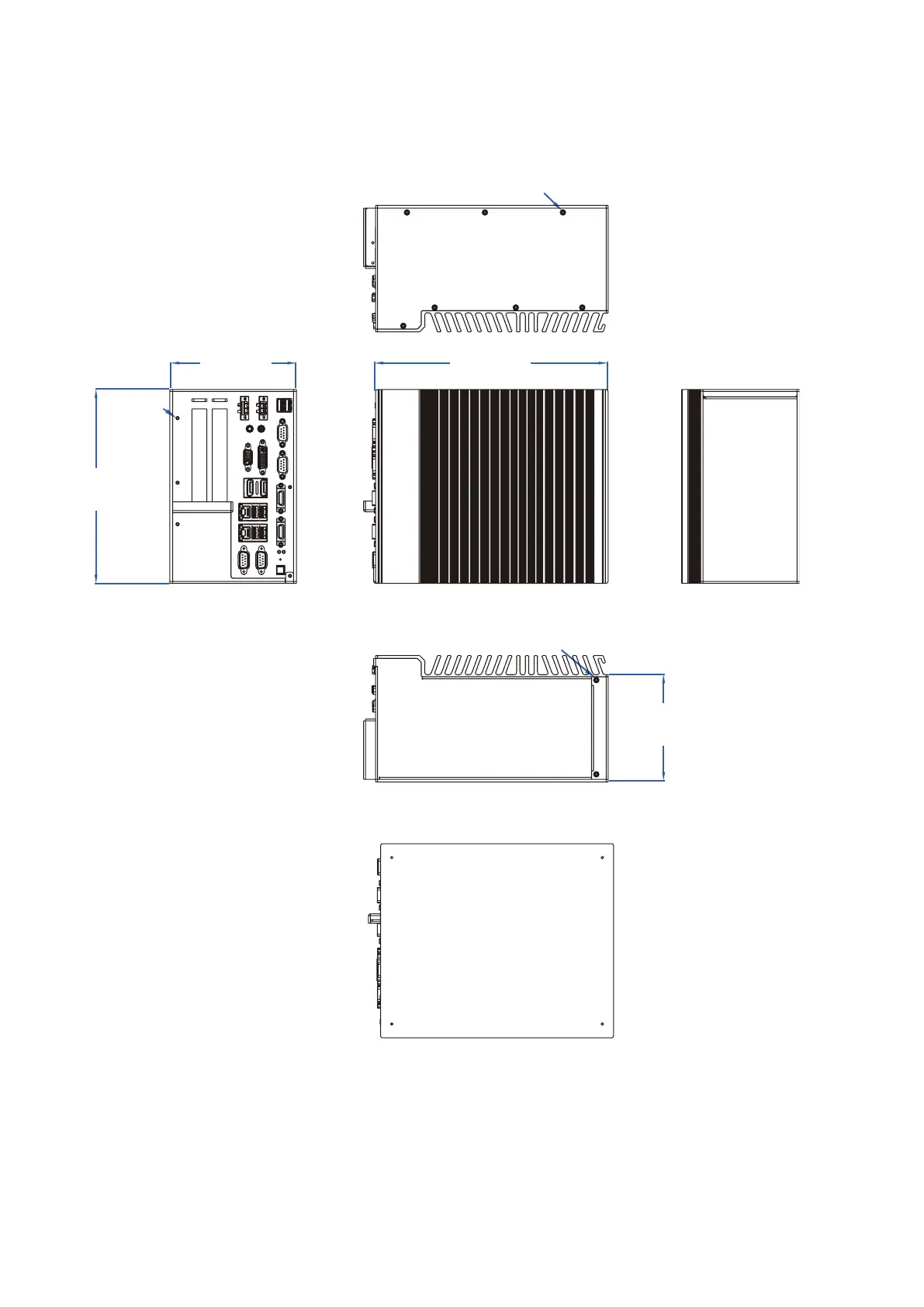

Figure 1.1 IPC-R1ix
252 (9.9”)
137 (5.4")
210
(8.3”)
SCREW：
KHS-#6-32
137
(5.4”)
SCREW
：
KHS
-
#6
-
32
SCREW：KHS-#6-32
