GETTING TO KNOW YOUR IPC-R1ix
2.2.2 Rest Tact Switch
It is a hardware reset switch. Use this switch to reset the system without turning
off the power. Momentarily pressing the switch will activate a reset.

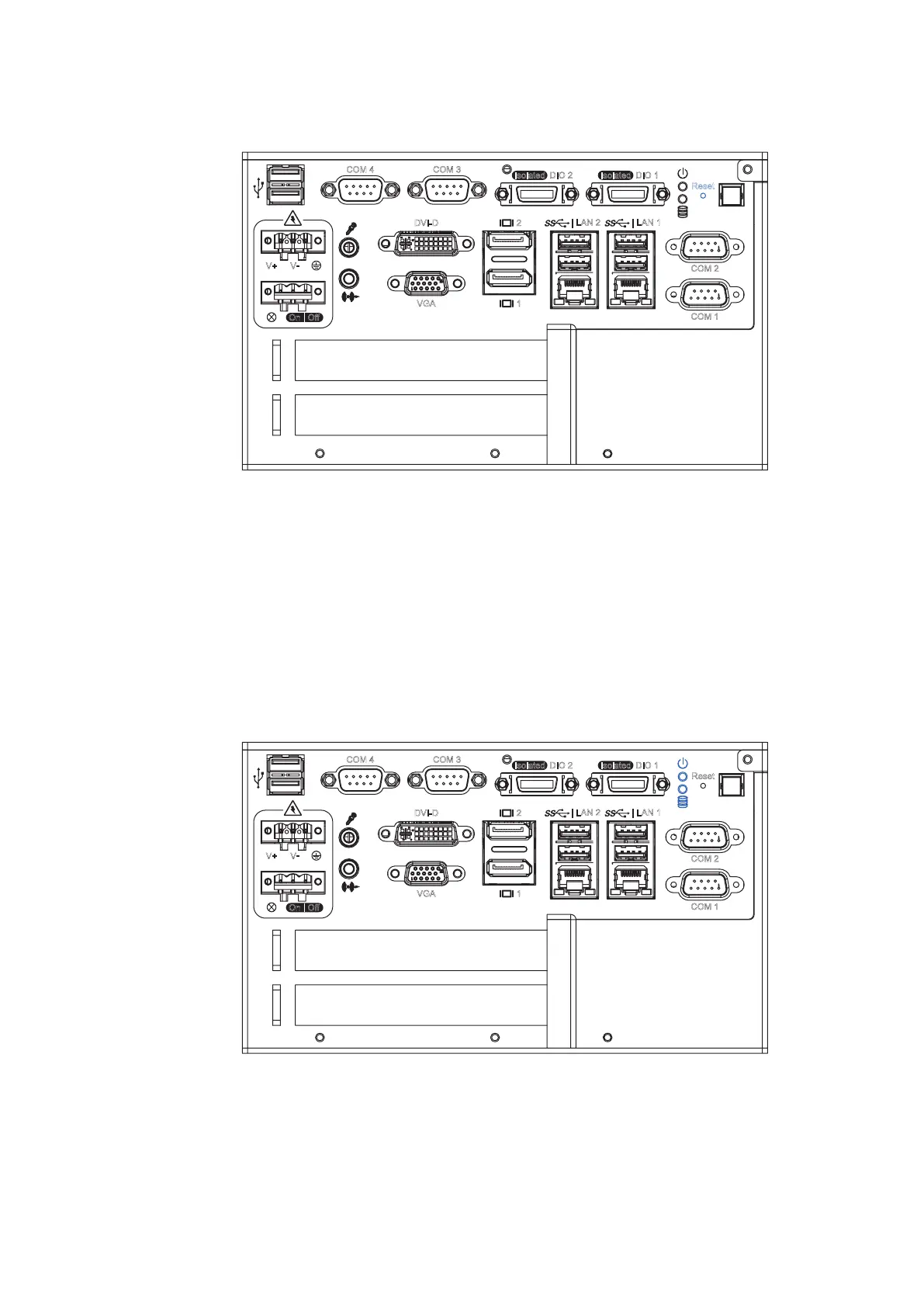

2.2.3 Power, HDD LED Indicator
