GETTING TO KNOW YOUR IPC-R1ix

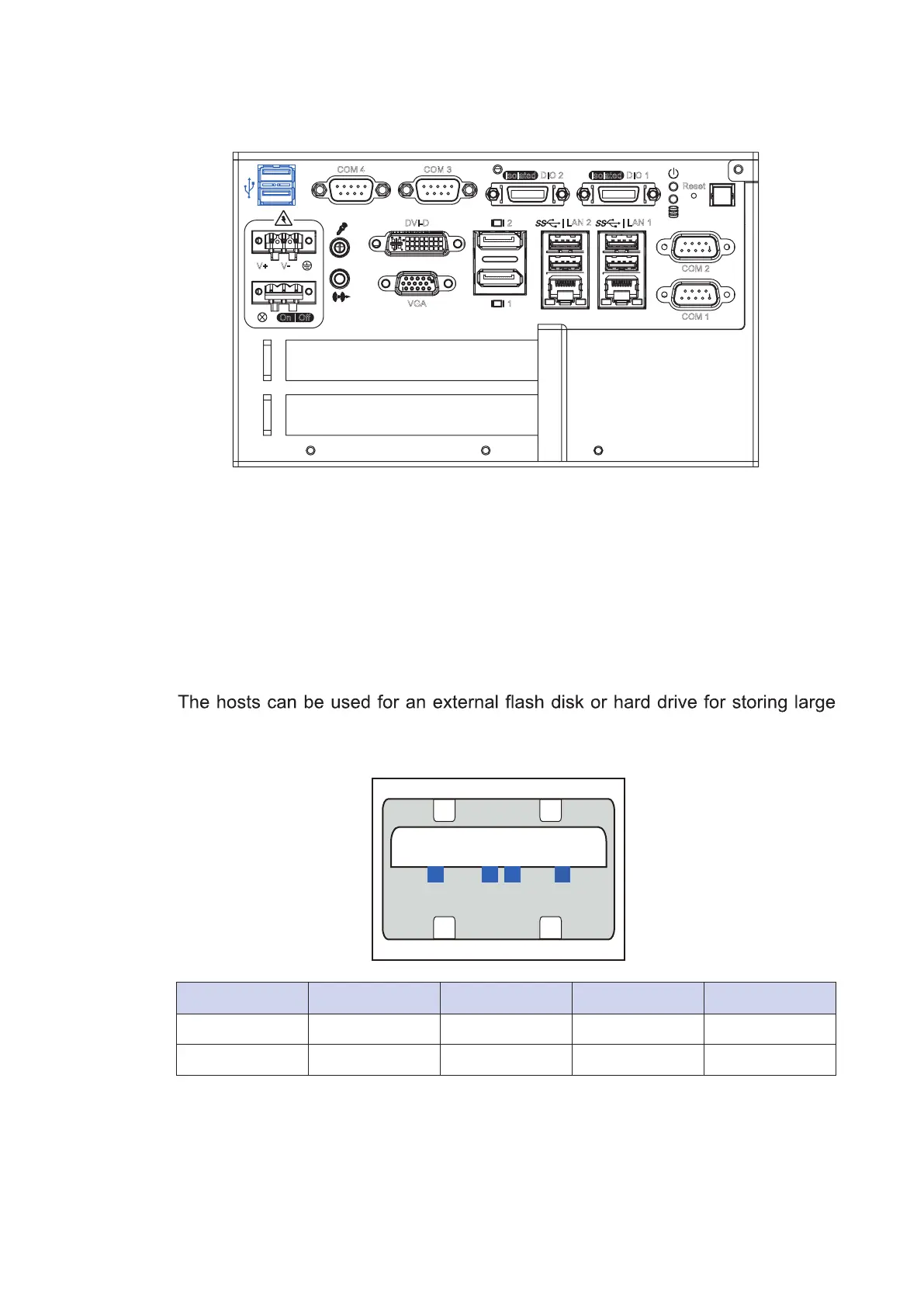

2.2.6 USB 2.0 Port
The IPC-R1ix comes with 2 USB 2.0 hosts on the front panel. The USB
interface supports Plug and Play, which enables you to connect or disconnect a
device whenever you want, without turning off the system.
amounts of data. You can also use these USB hosts to connect to a keyboard
or a mouse. The following diagram shows the pinouts for USB1 and USB2 port.
Pin No. 1 2 3 4
USB1 +5V USB1- USB1+ GND
USB2 +5V USB2- USB2+ GND
1 2 3 4
Isolated DIO 2
Reset
COM 1
COM 2
| LAN 2
VGA
DVI-D
V+
1
2
| LAN 1
V
-
COM 4 COM 3
Isolated DIO 1
On
|
Off
