Cybernet IPC-R1ix - CN25 Multiple I; O

48
GETTING TO KNOW YOUR IPC-R1ix

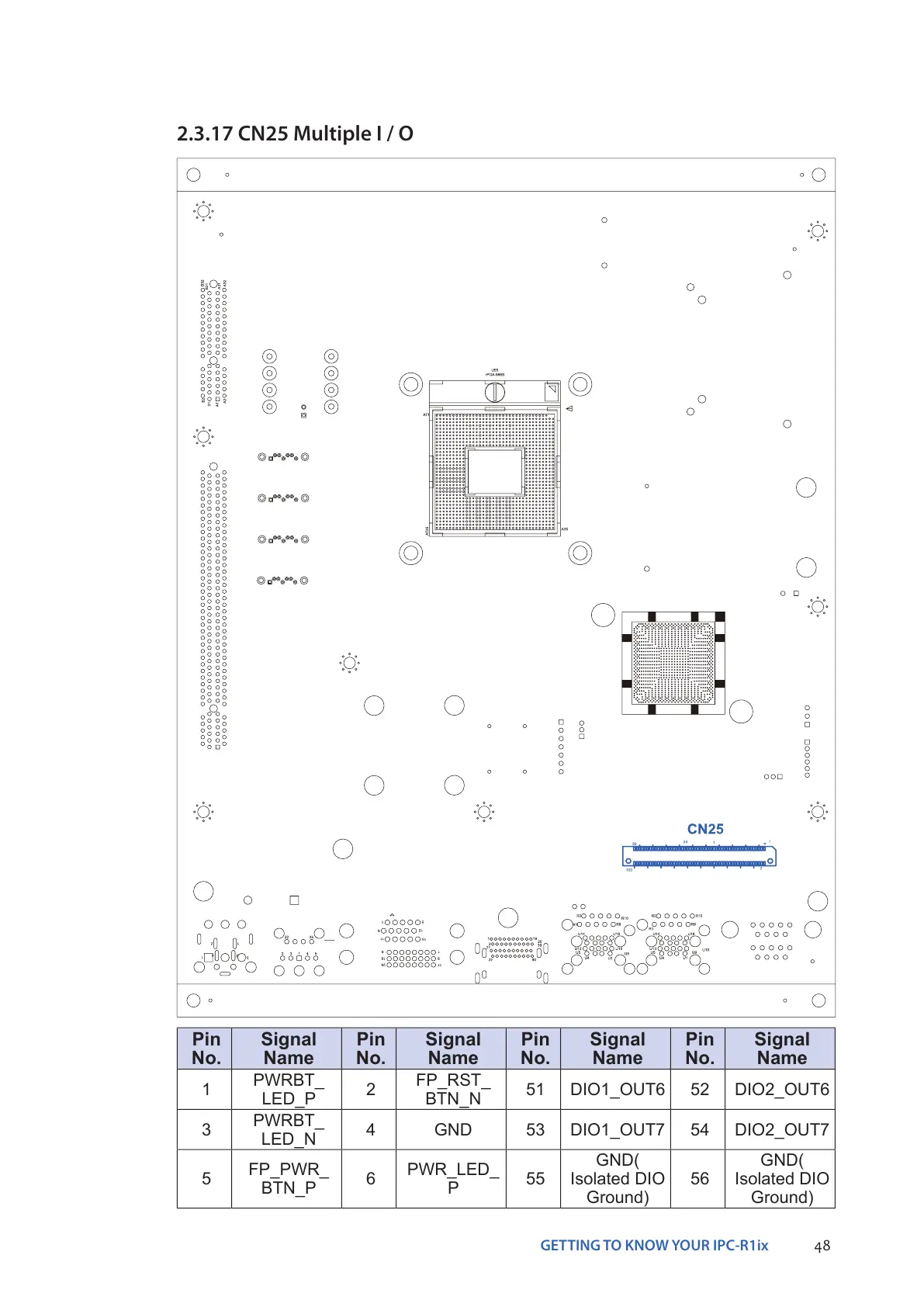

2.3.17 CN25 Multiple I / O
Pin
No.
Signal
Name
Pin
No.
Signal
Name
Pin
No.
Signal
Name
Pin
No.
Signal
Name
1
PWRBT_
LED_P
2
FP_RST_
BTN_N
51 DIO1_OUT6 52 DIO2_OUT6
3
PWRBT_
LED_N
4 GND 53 DIO1_OUT7 54 DIO2_OUT7
5
FP_PWR_
BTN_P
6
PWR_LED_
P
55
GND(
Isolated DIO
Ground)
56
GND(
Isolated DIO
Ground)
