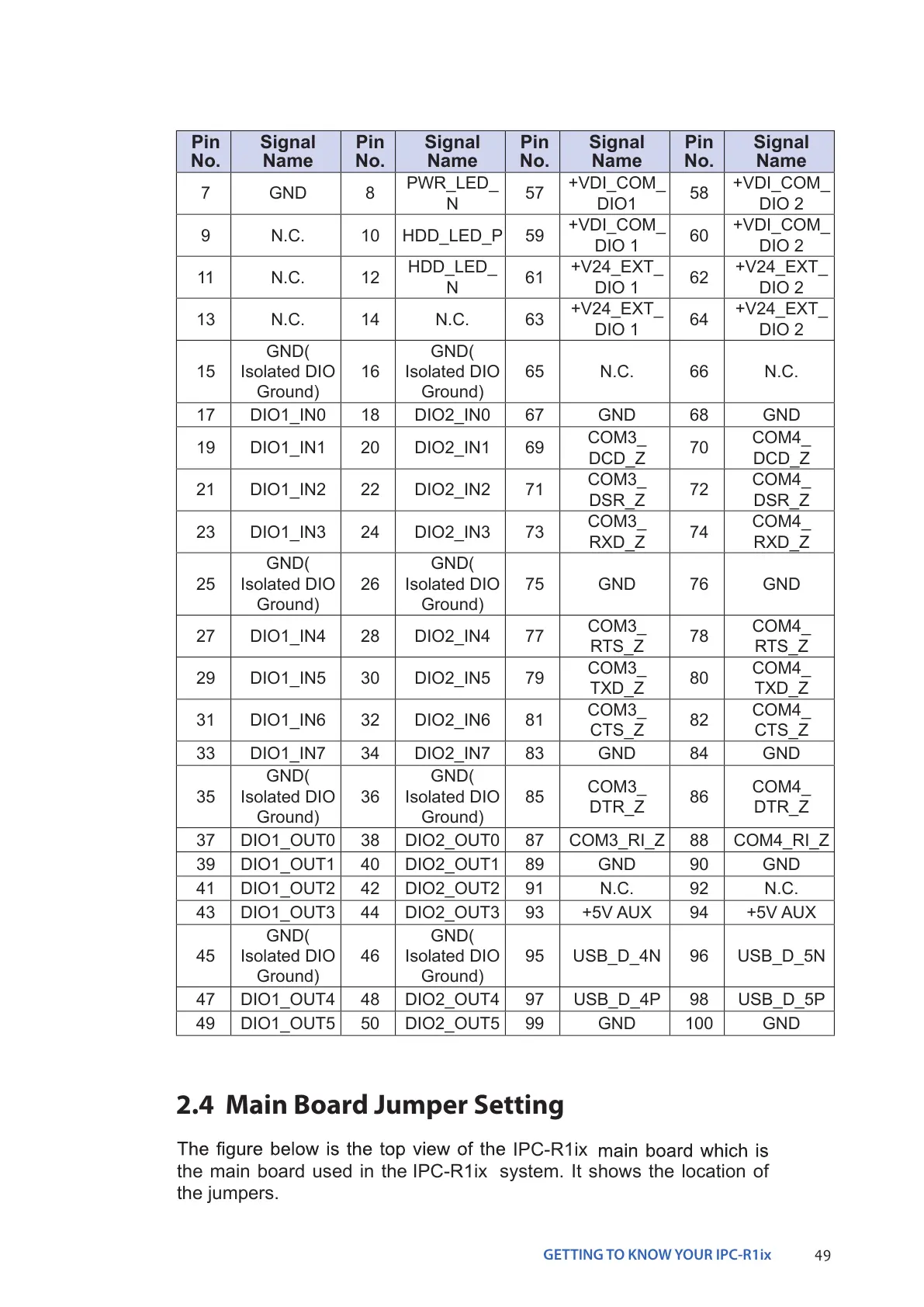

2.4 Main Board Jumper Setting
the main board used in the IPC-R1ix system. It shows the location of
the jumpers.
Pin
No.
Signal
Name
Pin
No.
Signal
Name
Pin
No.
Signal
Name
Pin
No.
Signal
Name
7 GND 8
PWR_LED_
N
57
+VDI_COM_
DIO1
58
+VDI_COM_
DIO 2
9 N.C. 10 HDD_LED_P 59
+VDI_COM_
DIO 1
60
+VDI_COM_
DIO 2
11 N.C. 12
HDD_LED_
N
61
+V24_EXT_
DIO 1
62
+V24_EXT_
DIO 2
13 N.C. 14 N.C. 63
+V24_EXT_
DIO 1
64
+V24_EXT_
DIO 2
15
GND(
Isolated DIO
Ground)
16
GND(
Isolated DIO
Ground)
65 N.C. 66 N.C.
17 DIO1_IN0 18 DIO2_IN0 67 GND 68 GND
19 DIO1_IN1 20 DIO2_IN1 69
COM3_
DCD_Z
70
COM4_
DCD_Z
21 DIO1_IN2 22 DIO2_IN2 71
COM3_
DSR_Z
72
COM4_
DSR_Z
23 DIO1_IN3 24 DIO2_IN3 73
COM3_
RXD_Z
74
COM4_
RXD_Z
25
GND(
Isolated DIO
Ground)
26
GND(
Isolated DIO
Ground)
75 GND 76 GND
27 DIO1_IN4 28 DIO2_IN4 77
COM3_
RTS_Z
78
COM4_
RTS_Z
29 DIO1_IN5 30 DIO2_IN5 79
COM3_
TXD_Z
80
COM4_
TXD_Z
31 DIO1_IN6 32 DIO2_IN6 81
COM3_
CTS_Z
82
COM4_
CTS_Z
33 DIO1_IN7 34 DIO2_IN7 83 GND 84 GND
35
GND(
Isolated DIO
Ground)
36
GND(
Isolated DIO
Ground)
85
COM3_
DTR_Z
86
COM4_
DTR_Z
37 DIO1_OUT0 38 DIO2_OUT0 87 COM3_RI_Z 88 COM4_RI_Z
39 DIO1_OUT1 40 DIO2_OUT1 89 GND 90 GND
41 DIO1_OUT2 42 DIO2_OUT2 91 N.C. 92 N.C.
43 DIO1_OUT3 44 DIO2_OUT3 93 +5V AUX 94 +5V AUX
45
GND(
Isolated DIO
Ground)
46
GND(
Isolated DIO
Ground)
95 USB_D_4N 96 USB_D_5N
47 DIO1_OUT4 48 DIO2_OUT4 97 USB_D_4P 98 USB_D_5P
49 DIO1_OUT5 50 DIO2_OUT5 99 GND 100 GND
