HARDWARE INSTALLATION
HARDWARE INSTALLATION

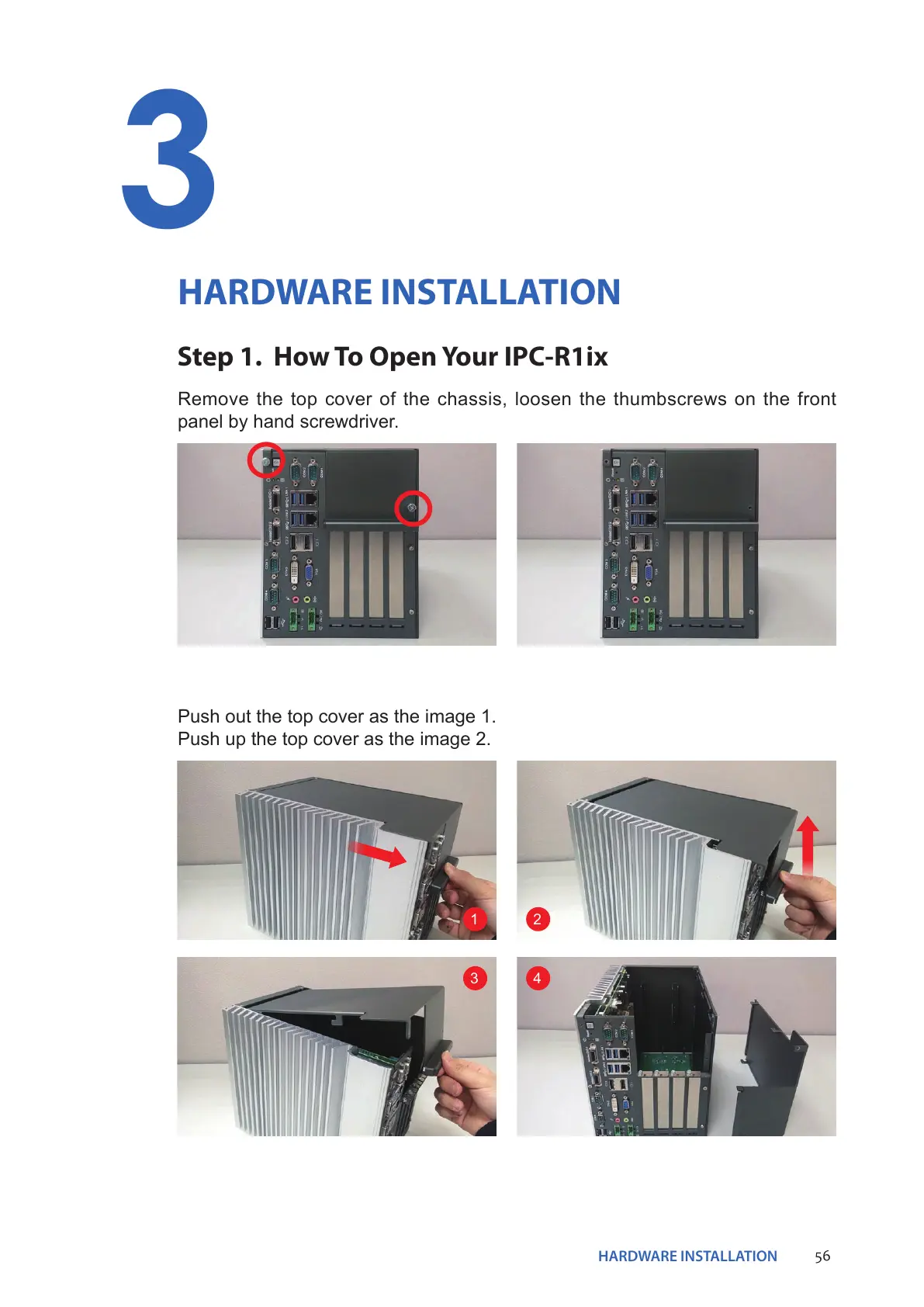

Step 1. How To Open Your IPC-R1ix
3
Remove the top cover of the chassis, loosen the thumbscrews on the front
panel by hand screwdriver.
Push out the top cover as the image 1.
Push up the top cover as the image 2.
1 2
3 4
