HARDWARE INSTALLATION

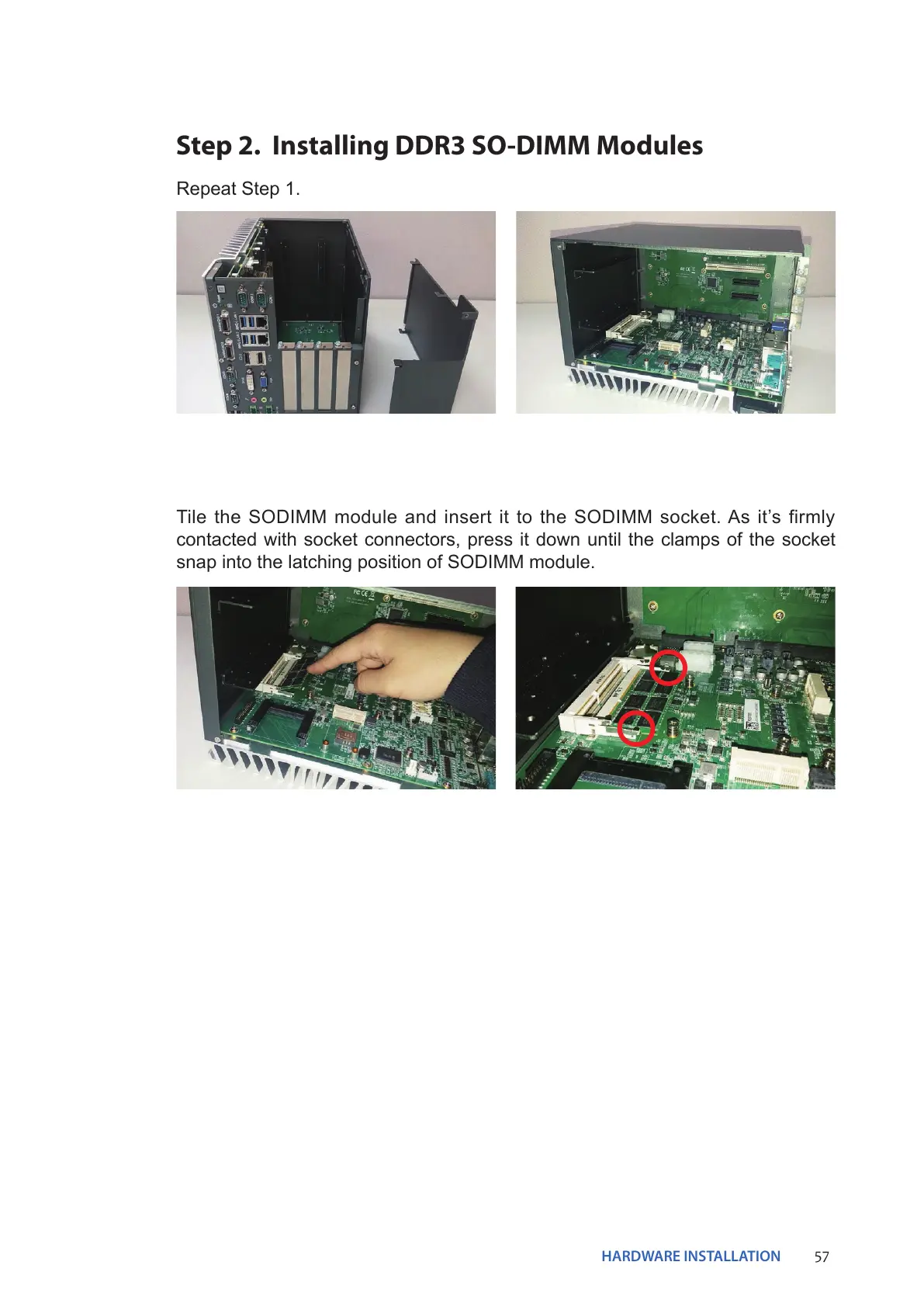

Step 2. Installing DDR3 SO-DIMM Modules
Repeat Step 1.
Tile the SODIMM module and insert it to the SODIMM socket. As it’s firmly
contacted with socket connectors, press it down until the clamps of the socket
snap into the latching position of SODIMM module.
