58
HARDWARE INSTALLATION

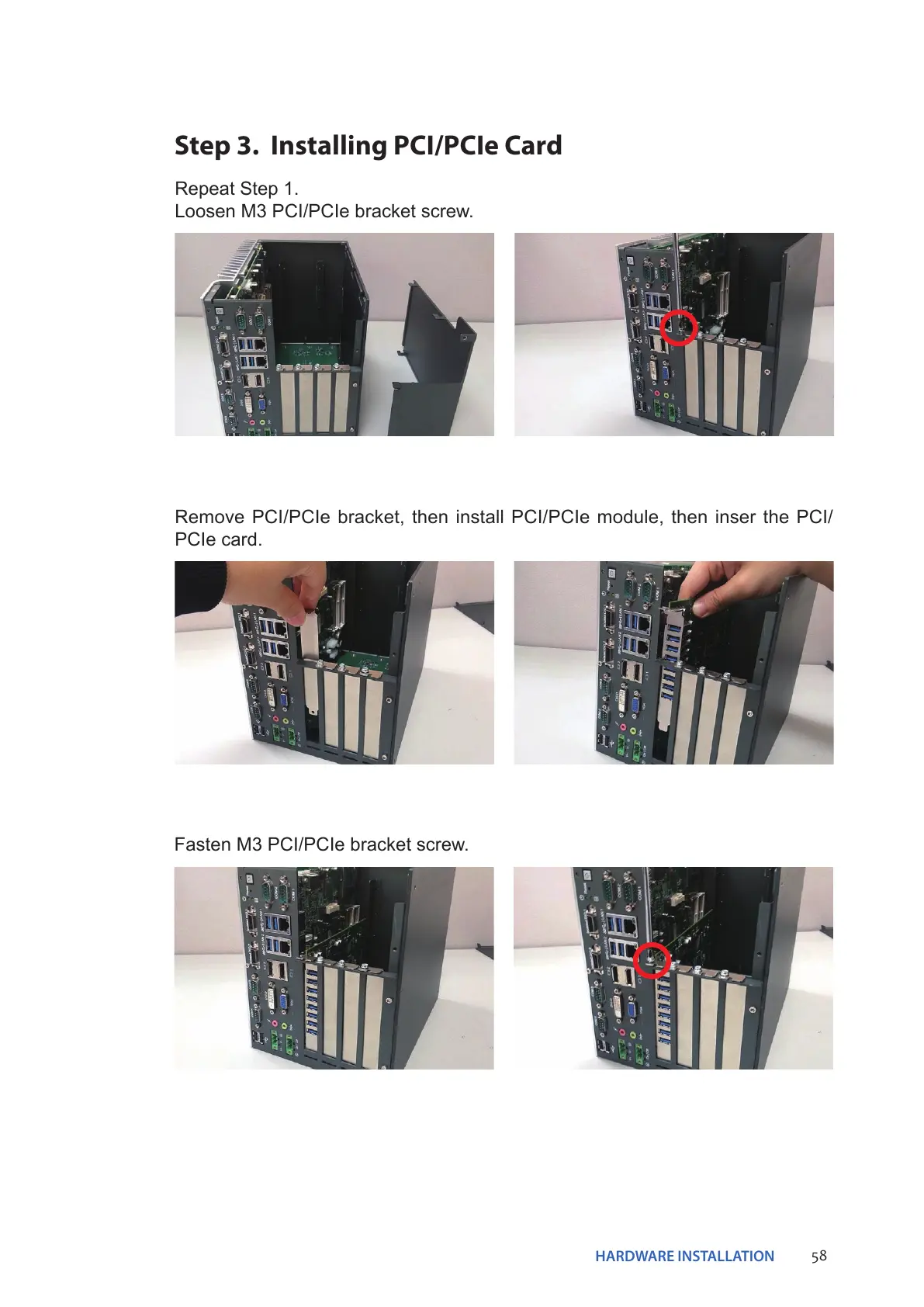

Step 3. Installing PCI/PCIe Card
Repeat Step 1.
Loosen M3 PCI/PCIe bracket screw.
Remove PCI/PCIe bracket, then install PCI/PCIe module, then inser the PCI/
PCIe card.
Fasten M3 PCI/PCIe bracket screw.
