Cybernet IPC-R1ix - Dual Isolated 8 DI; 8 DO

09

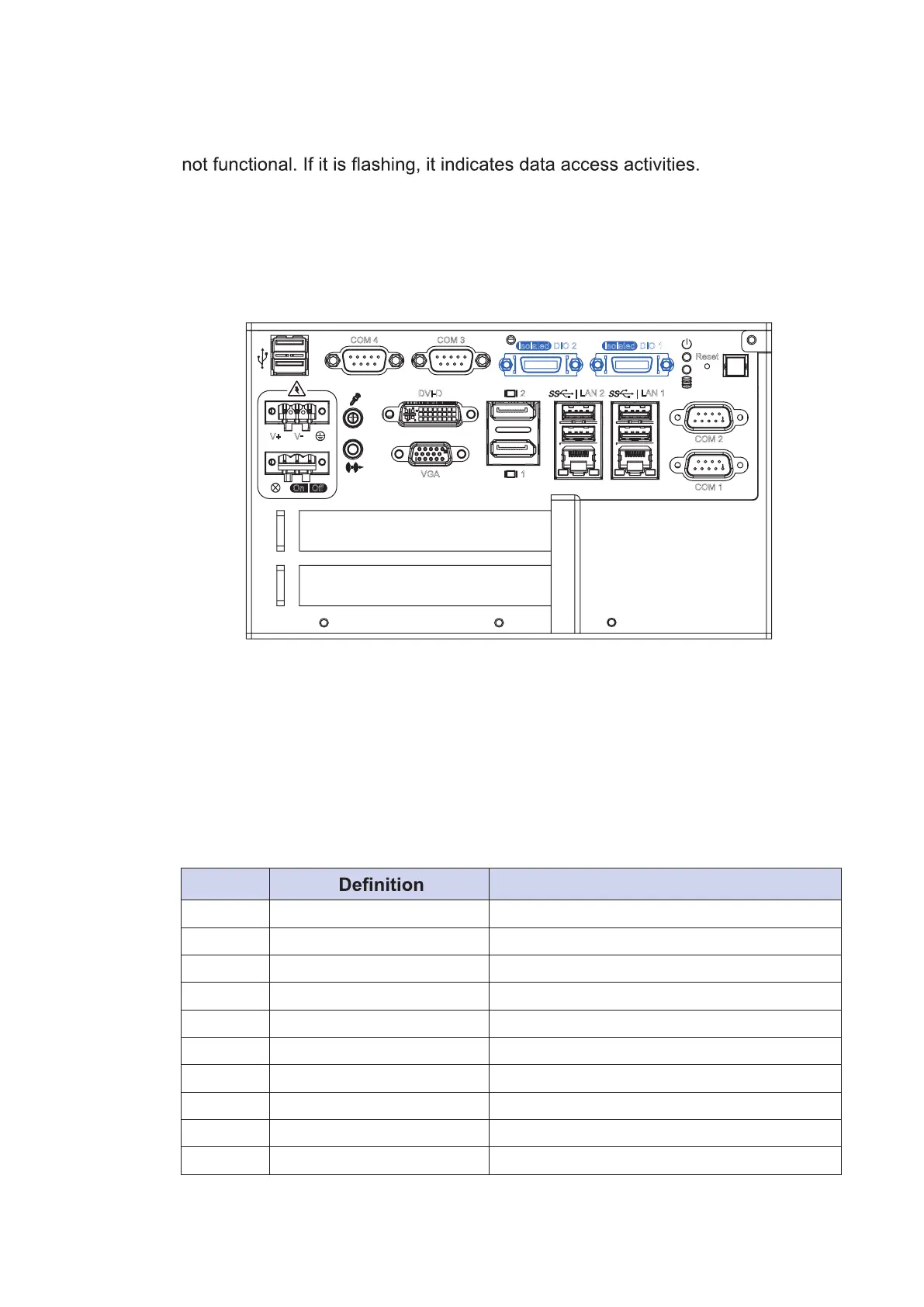

GETTING TO KNOW YOUR IPC-R1ix
2.2.4 Dual Isolated 8 DI/ 8 DO
The IPC-R1ix offers dual 16-bit DIO ( 8-DI / 8-DO) connector. Each bit
of DI and DO equipped with a photo-coupler for isolated protection. A power
buffer device TPD2007F integrated in 8-DO circuit for motors, solenoids, and
lamp drivers applications.
Yellow-HDD LED: A hard disk/ CFast LED. If the LED is on, it indicates that the
system’s storage is functional. If it is off, it indicates that the system’s storage is
Green-Power LED: If the LED is solid green, it indicates that the system is
powered on.
Pin No. Mapping to SIO GPIO Function
1 INPUT0 SIO_GPI50
2 INPUT 1 SIO_GPI51
3 INPUT 2 SIO_GPI52
4 INPUT 3 SIO_GPI53
5 INPUT 4 SIO_GPI54
6 INPUT 5 SIO_GPI55
7 INPUT 6 SIO_GPI56
8 INPUT 7 SIO_GPI57
9 DI_COM
10 GND
Isolated DIO 2
Reset
COM 1
COM 2
| LAN 2
VGA
DVI-D
V+
1
2
| LAN 1
V
-
COM 4 COM 3
Isolated DIO 1
On
|
Off
