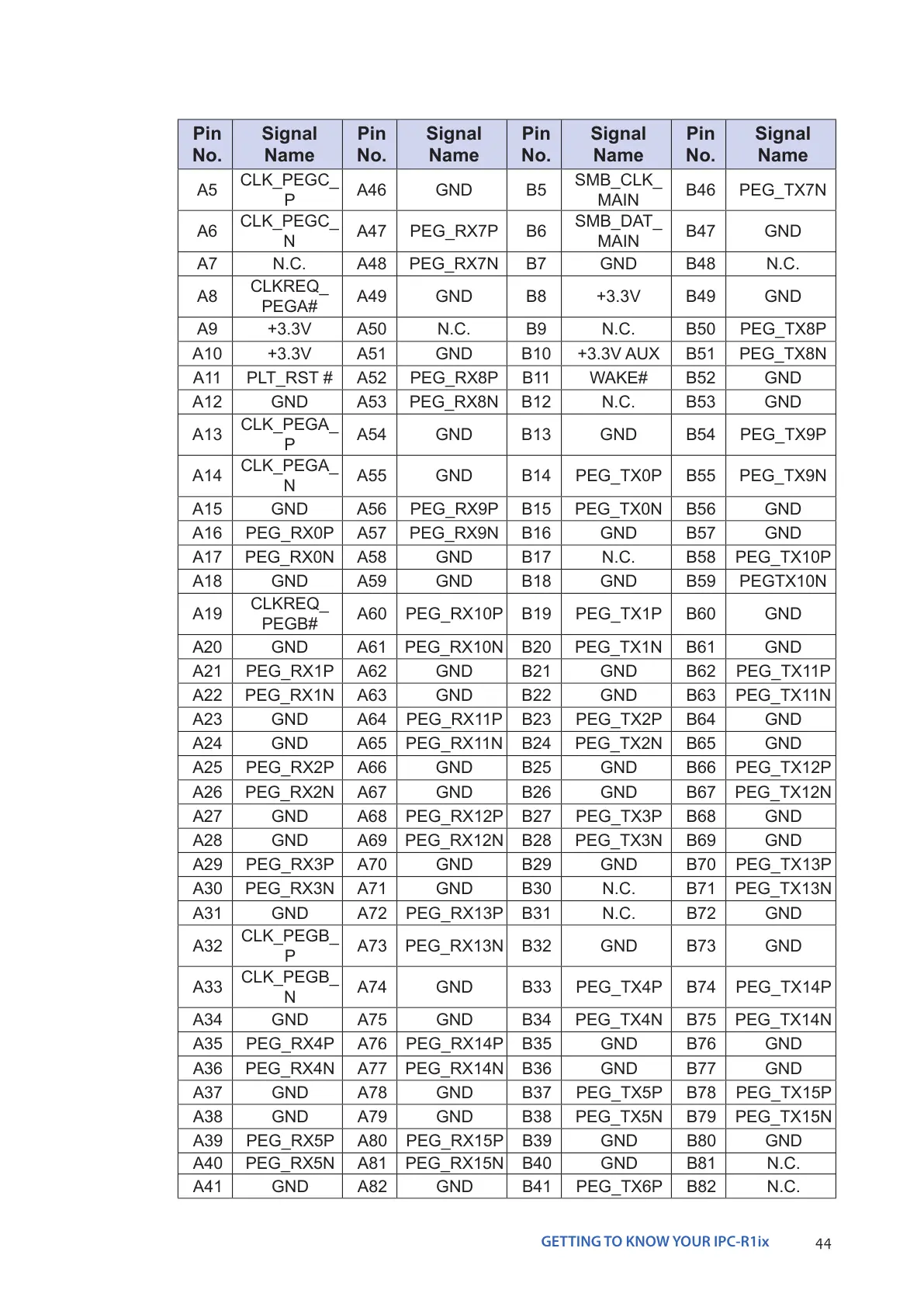

GETTING TO KNOW YOUR IPC-R1ix
Pin
No.
Signal
Name
Pin
No.
Signal
Name
Pin
No.
Signal
Name
Pin
No.
Signal
Name
A5
CLK_PEGC_
P
A46 GND B5
SMB_CLK_
MAIN
B46 PEG_TX7N
A6
CLK_PEGC_
N
A47 PEG_RX7P B6
SMB_DAT_
MAIN
B47 GND
A7 N.C. A48 PEG_RX7N B7 GND B48 N.C.
A8
CLKREQ_
PEGA#
A49 GND B8 +3.3V B49 GND
A9 +3.3V A50 N.C. B9 N.C. B50 PEG_TX8P
A10 +3.3V A51 GND B10 +3.3V AUX B51 PEG_TX8N
A11 PLT_RST # A52 PEG_RX8P B11 WAKE# B52 GND
A12 GND A53 PEG_RX8N B12 N.C. B53 GND
A13
CLK_PEGA_
P
A54 GND B13 GND B54 PEG_TX9P
A14
CLK_PEGA_
N
A55 GND B14 PEG_TX0P B55 PEG_TX9N
A15 GND A56 PEG_RX9P B15 PEG_TX0N B56 GND
A16 PEG_RX0P A57 PEG_RX9N B16 GND B57 GND
A17 PEG_RX0N A58 GND B17 N.C. B58 PEG_TX10P
A18 GND A59 GND B18 GND B59 PEGTX10N
A19
CLKREQ_
PEGB#
A60 PEG_RX10P B19 PEG_TX1P B60 GND
A20 GND A61 PEG_RX10N B20 PEG_TX1N B61 GND
A21 PEG_RX1P A62 GND B21 GND B62 PEG_TX11P
A22 PEG_RX1N A63 GND B22 GND B63 PEG_TX11N
A23 GND A64 PEG_RX11P B23 PEG_TX2P B64 GND
A24 GND A65 PEG_RX11N B24 PEG_TX2N B65 GND
A25 PEG_RX2P A66 GND B25 GND B66 PEG_TX12P
A26 PEG_RX2N A67 GND B26 GND B67 PEG_TX12N
A27 GND A68 PEG_RX12P B27 PEG_TX3P B68 GND
A28 GND A69 PEG_RX12N B28 PEG_TX3N B69 GND
A29 PEG_RX3P A70 GND B29 GND B70 PEG_TX13P
A30 PEG_RX3N A71 GND B30 N.C. B71 PEG_TX13N
A31 GND A72 PEG_RX13P B31 N.C. B72 GND
A32
CLK_PEGB_
P
A73 PEG_RX13N B32 GND B73 GND
A33
CLK_PEGB_
N
A74 GND B33 PEG_TX4P B74 PEG_TX14P
A34 GND A75 GND B34 PEG_TX4N B75 PEG_TX14N
A35 PEG_RX4P A76 PEG_RX14P B35 GND B76 GND
A36 PEG_RX4N A77 PEG_RX14N B36 GND B77 GND
A37 GND A78 GND B37 PEG_TX5P B78 PEG_TX15P
A38 GND A79 GND B38 PEG_TX5N B79 PEG_TX15N
A39 PEG_RX5P A80 PEG_RX15P B39 GND B80 GND
A40 PEG_RX5N A81 PEG_RX15N B40 GND B81 N.C.
A41 GND A82 GND B41 PEG_TX6P B82 N.C.
