1. Remove a screw and washer from the left handle assembly using two 7/32” Allen wrenches.

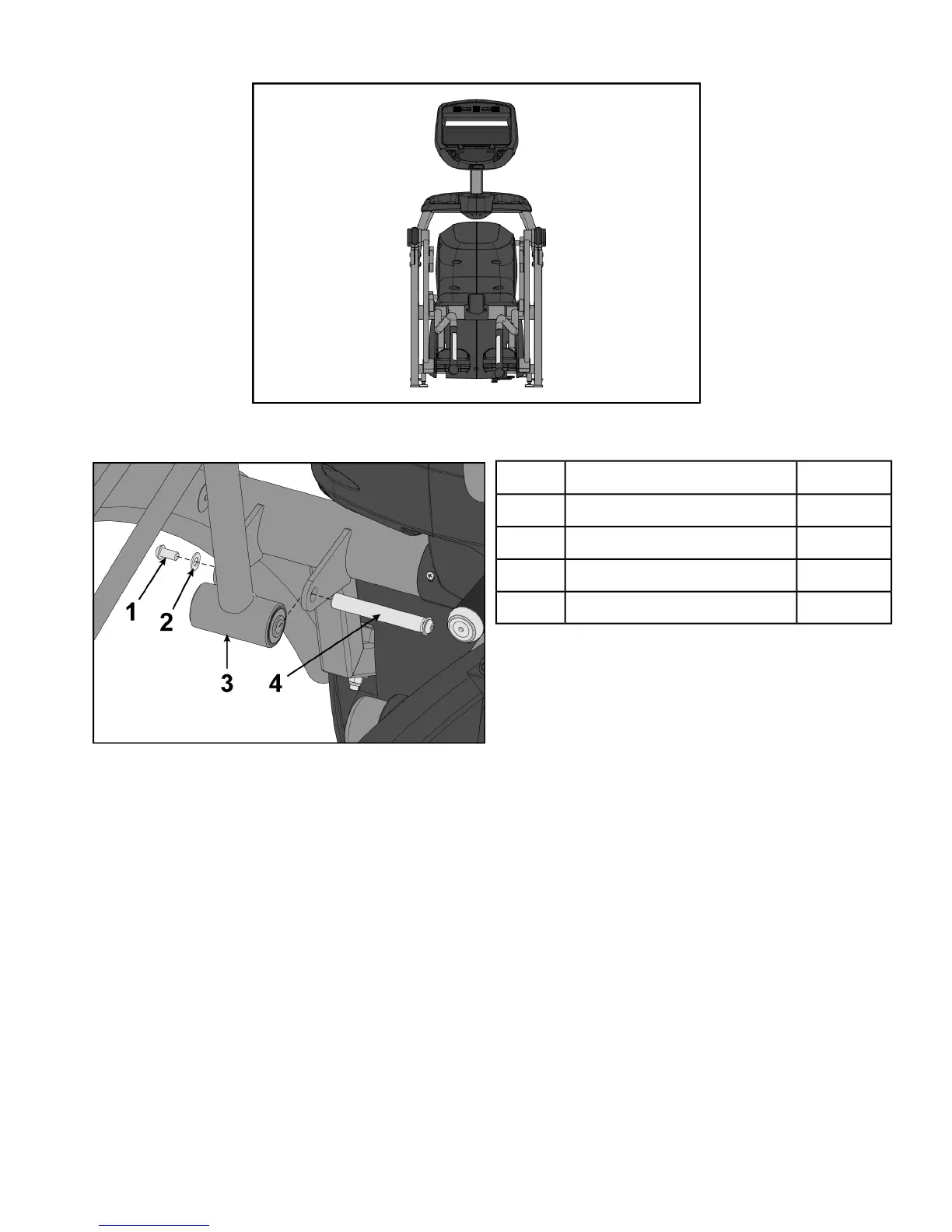

Qty.Description
1Screw1
1Washer2
1Left handle3
1Pivot pin assembly4
2. Slide pivot pin assembly out and remove left handle assembly.
3. Rotate left handle assembly 180 degrees.
4. Apply Loctite to threads inside the pivot pin and screw.
5. Place left handle assembly in position and slide pivot pin assembly back in place.
6. Install the screw and washer to the left handle assembly using two 7/32” Allen wrenches.
