CYBEX 525AT User Manual

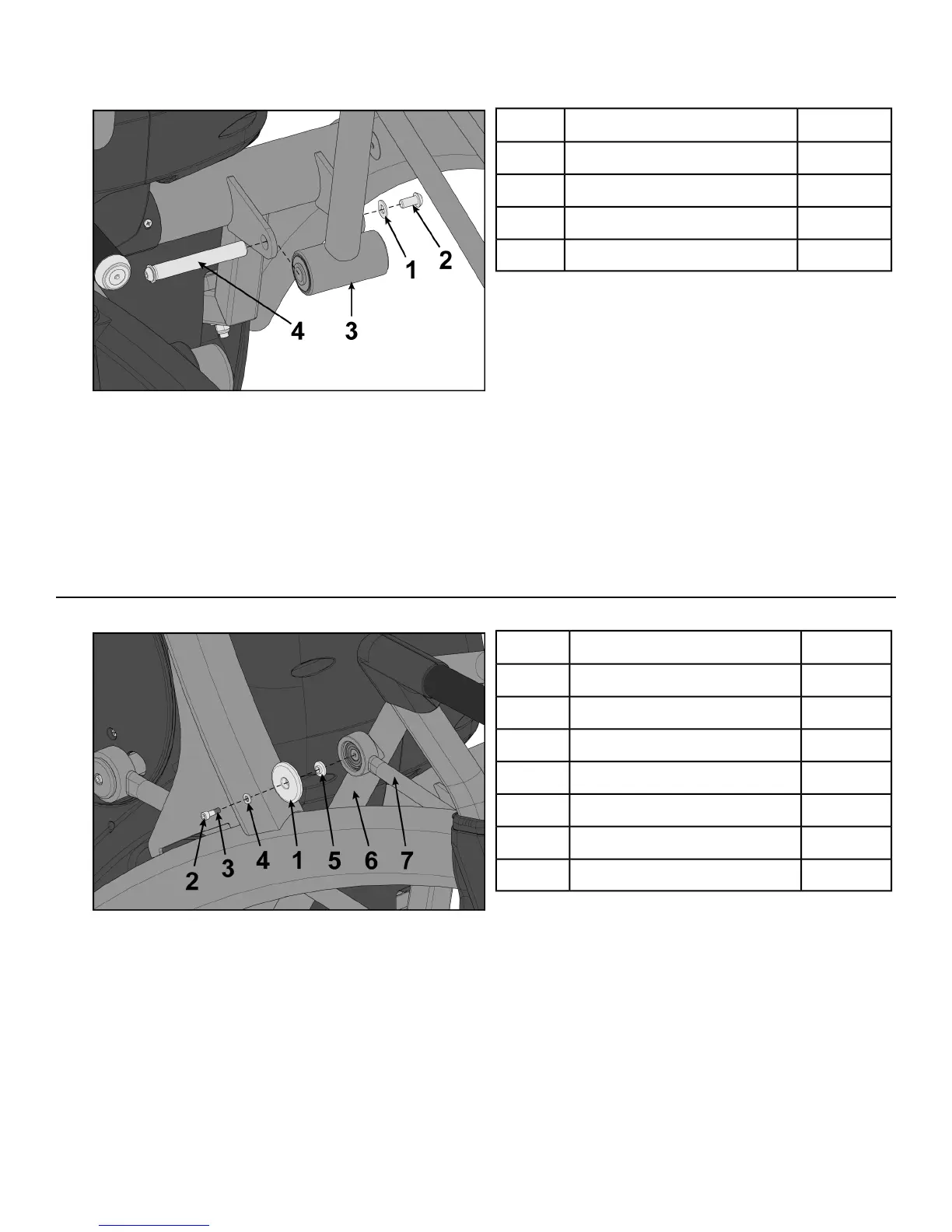

7. Remove a screw and washer from the right handle assembly using two 7/32” Allen wrenches.
Qty.Description
1Washer1
1Screw2
1Right handle3
1Pivot pin assembly4
8. Slide pivot pin assembly out and remove right handle assembly.
9. Rotate right handle assembly 180 degrees.
10. Apply Loctite to threads inside the pivot pin and screw.
11. Place right handle assembly in position and slide pivot pin assembly back in place.
12. Install the screw and washer to the right handle assembly using two 7/32” Allen wrenches.
Install left linkage rod
1. Pivot left handle assembly up and slide left linkage rod onto left arm.
Qty.Description
1Linkage rod cap1
1Screw2
1Loctite3
1Washer4
1Flange spacer5
1Left arm6
1Left linkage rod7
2. Place a drop of Loctite onto the screw.
3. Install the screw, washer, linkage rod cap, and flange spacer using a 3/16” Allen wrench.
4. Tighten screw to a minimum of 90 in/lbs.
Page 20 of 82
Cybex 525AT Arc Trainer Part Number 5525-4 F
