CYBEX 525T Service Manual

Remove rear roller
1. Remove the two rear roller bolts, washers, bushings and rear roller nuts (one roller bolt on each
side) using a 3/4” Socket wrench.
Loosen each bolt evenly, making sure not to loosen either bolt too many turns before moving to the
other bolt.

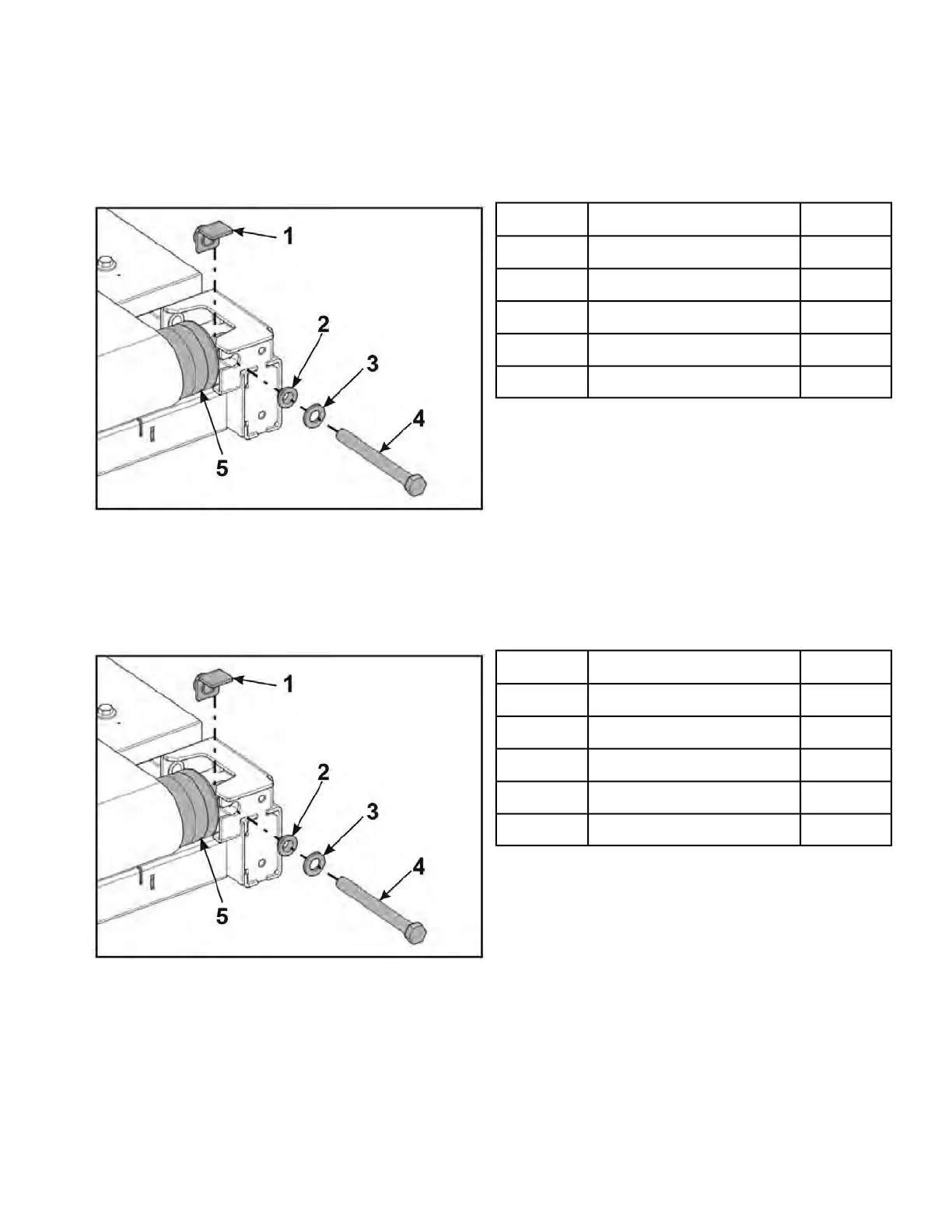

Qty.DescriptionItem
1Rear roller nut1
1Bushing2
1Washer3
1Bolt4
1Rear roller5
2. Lift one side of the rear roller and slide the roller out of the running belt.
Install rear roller
1. Slide the rear roller into the running belt.
2. Install the bolt, washer, bushing and rear roller nut for each side of the roller into position.
Qty.DescriptionItem
1Rear roller nut1
1Bushing2
1Washer3
1Bolt4
1Rear roller5
3. Tighten the two rear roller bolts using a 3/4” Socket wrench.
Tighten each bolt evenly, making sure not to tighten either bolt too many turns before moving to the
other bolt.
4. Continue to tighten bolts until the front roller is all the way back in the tensioning slots.
5. Tighten the front roller bolts using a 9/16” Socket wrench.
6. Tighten the rear roller bolts to 100 in-lbs (11.3 Nm) using a torque wrench.
