Remove motor cover supports

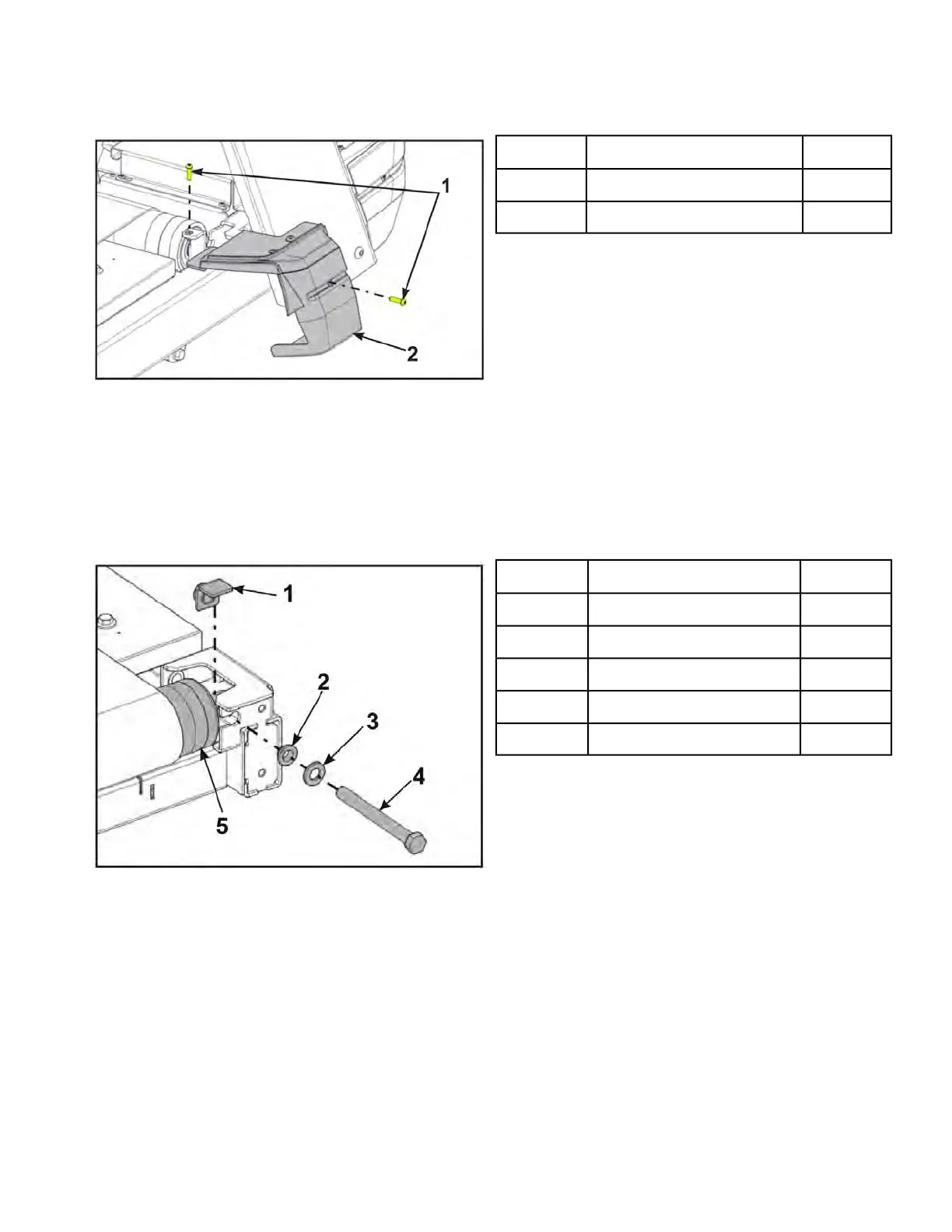

1. Remove the two screws securing the right motor cover support using a Phillips screwdriver.
Qty.DescriptionItem
2Screws1
1Motor cover support2
2. Repeat step for the left motor cover support.
Remove rear roller
1. Remove the two rear roller bolts, washers, bushings and rear roller nuts (one roller bolt on each
side) using a 3/4” Socket wrench.
Loosen each bolt evenly, making sure not to loosen either bolt too many turns before moving to the
other bolt.
Qty.DescriptionItem
1Rear roller nut1
1Bushing2
1Washer3
1Bolt4
1Rear roller5
2. Lift one side of the rear roller and slide the roller out of the running belt.
Page 114 of 199
Cybex 525T Treadmill Part Number
