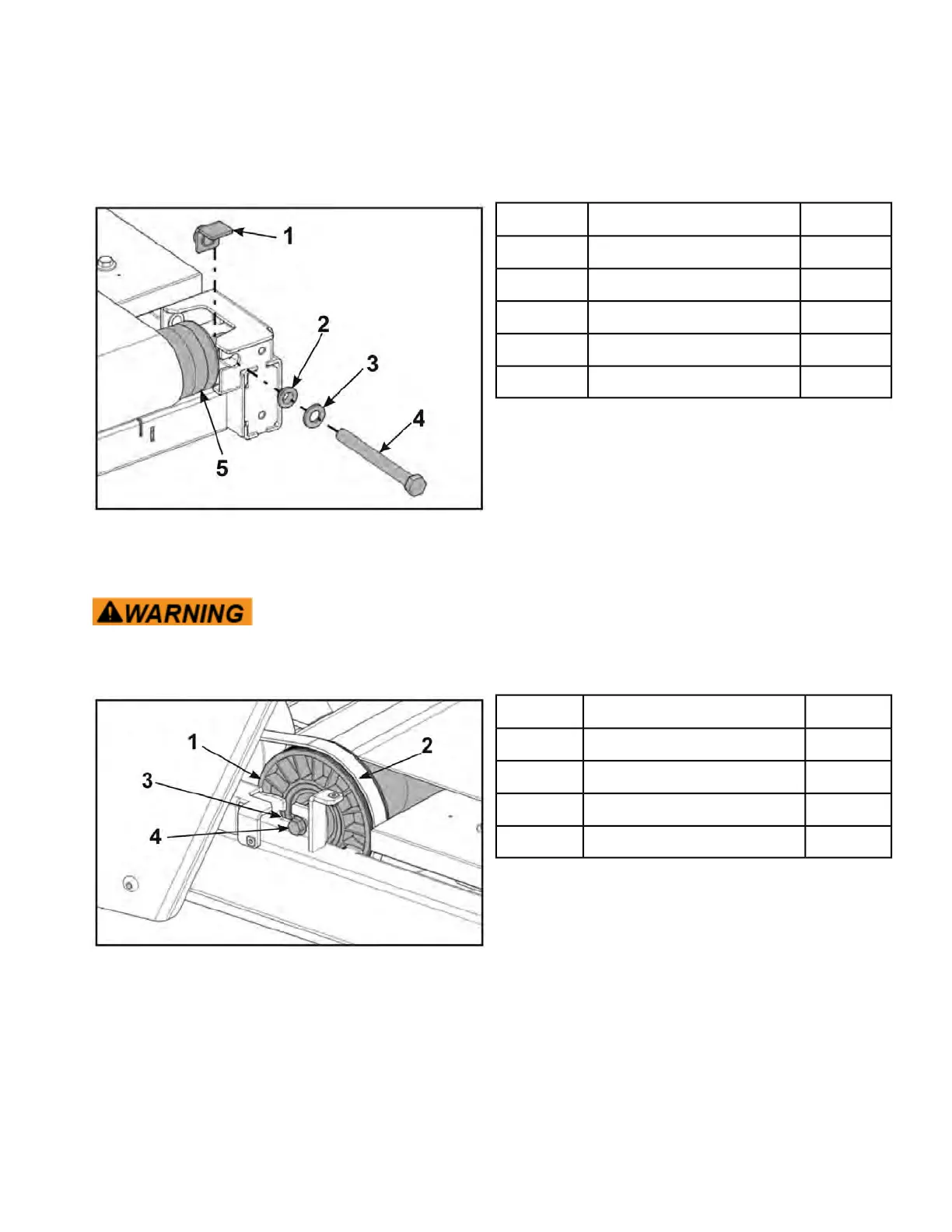

Remove rear roller
1. Remove the two rear roller bolts, washers, bushings and rear roller nuts (one roller bolt on each
side) using a 3/4” Socket wrench.
Loosen each bolt evenly, making sure not to loosen either bolt too many turns before moving to the
other bolt.
Qty.DescriptionItem
1Rear roller nut1
1Bushing2
1Washer3
1Bolt4
1Rear roller5
2. Lift one side of the rear roller and slide the roller out of the running belt.
Remove front roller
1.
Moving parts hazard. To avoid serious injury slowly release tension to
parts.
Loosen the left mounting bolt using a 9/16” Socket wrench.
Qty.DescriptionItem
1Front roller1
1Drive belt2
1Tensioning slot3
1Mounting bolt4
2. Loosen the right mounting bolt using a 9/16” Socket wrench.
3. Remove the front roller and slide the drive belt off of the front roller.
Page 139 of 199
