Complete installation
1. Plug the power cord into the power outlet.
2. Verify the power cord is not being pinched under the front of the treadmill.
3. Operate the unit at all levels to verify proper operation.
Drive Motor
Tools Required:
• Phillips screwdriver
• Flat head screwdriver
• 1/2” Socket wrench with 6" extension
• 9/16” Socket wrench
• 3/4” Socket wrench
• Side cutter
• Cable tie
Disconnect power source
1. Toggle the on/off (I/O) power switch to the off (O) position. The on/off (I/O) power switch is located
under the front end of the unit, or on the front right side panel.
2. Unplug the treadmill from the power outlet.
Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing
maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.
Remove motor cover
1. Loosen, but do not remove the two front cover screws securing the motor cover using a Phillips
screwdriver.

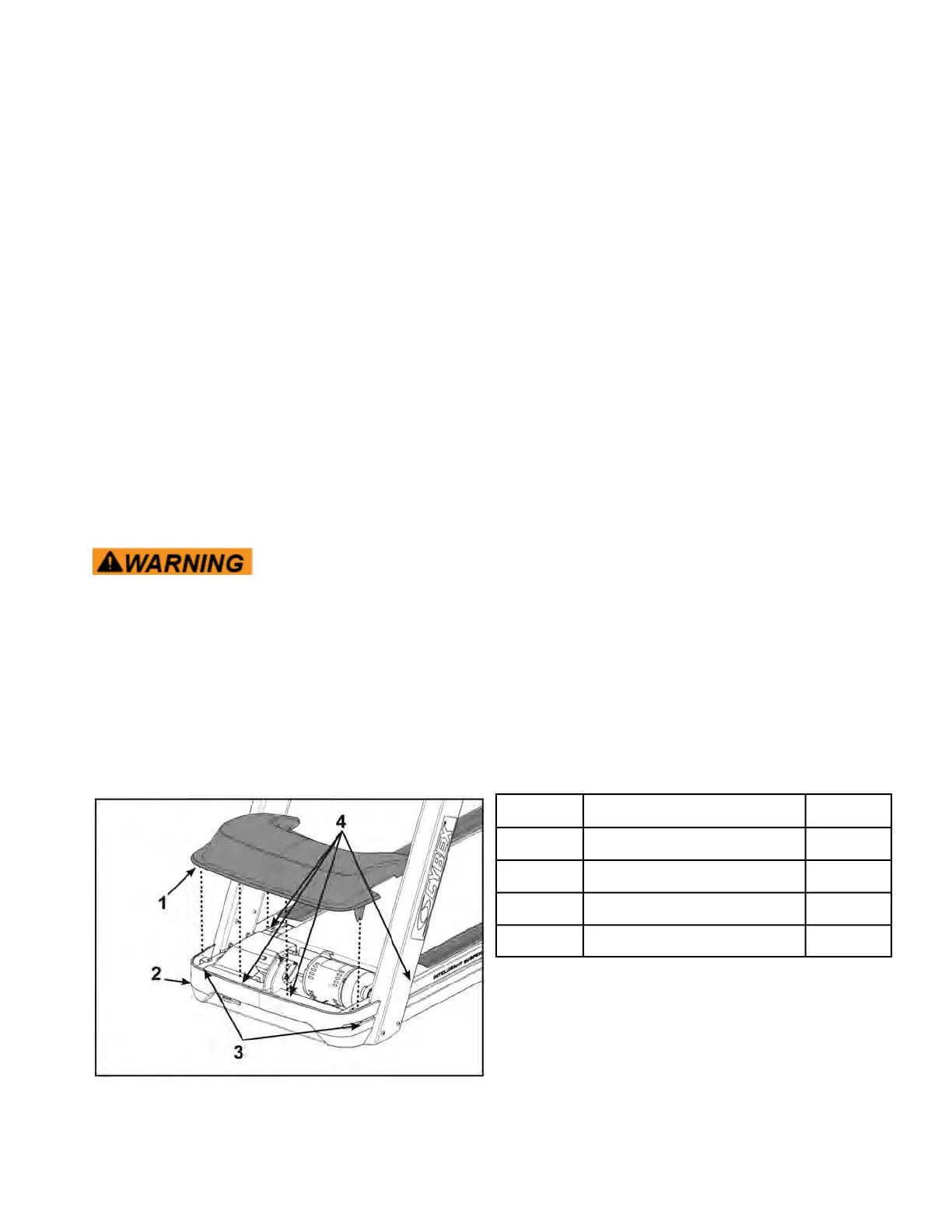

Qty.DescriptionItem
1Motor Cover1
1Front Cover2
2Screws3
4Plastic Connectors4
2. Remove motor cover by carefully lifting vertically. Do not break the four plastic connectors.
Page 151 of 199
