CYBEX 525T Service Manual

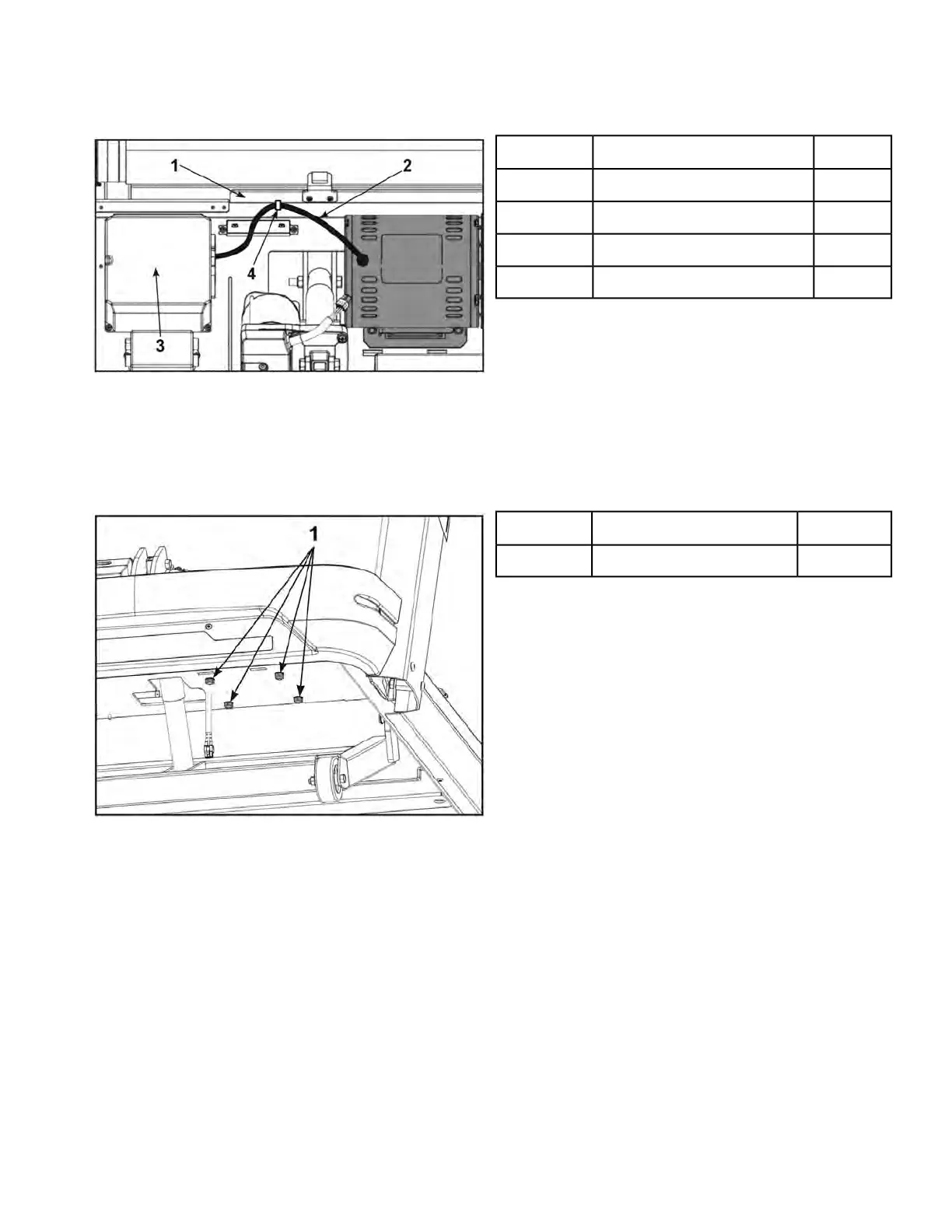

Disconnect drive motor cable
1. Locate the drive motor cable exiting the drive motor and connected to the motor controller.
Qty.DescriptionItem
1Front Roller Shield1
1Drive Motor Cable2
2Motor Controller3
1Cable Tie4
2. Disconnect the drive motor cable from the motor controller.
3. Remove the cable tie securing the drive motor cable to the front roller shield using the side cutters.
Remove drive motor
1. Remove the four mounting nuts using a 1/2” Socket with a 6” extension.
Qty.DescriptionItem
4Mounting Nut1
Page 153 of 199
