CYBEX 525T Service Manual

Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing
maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.

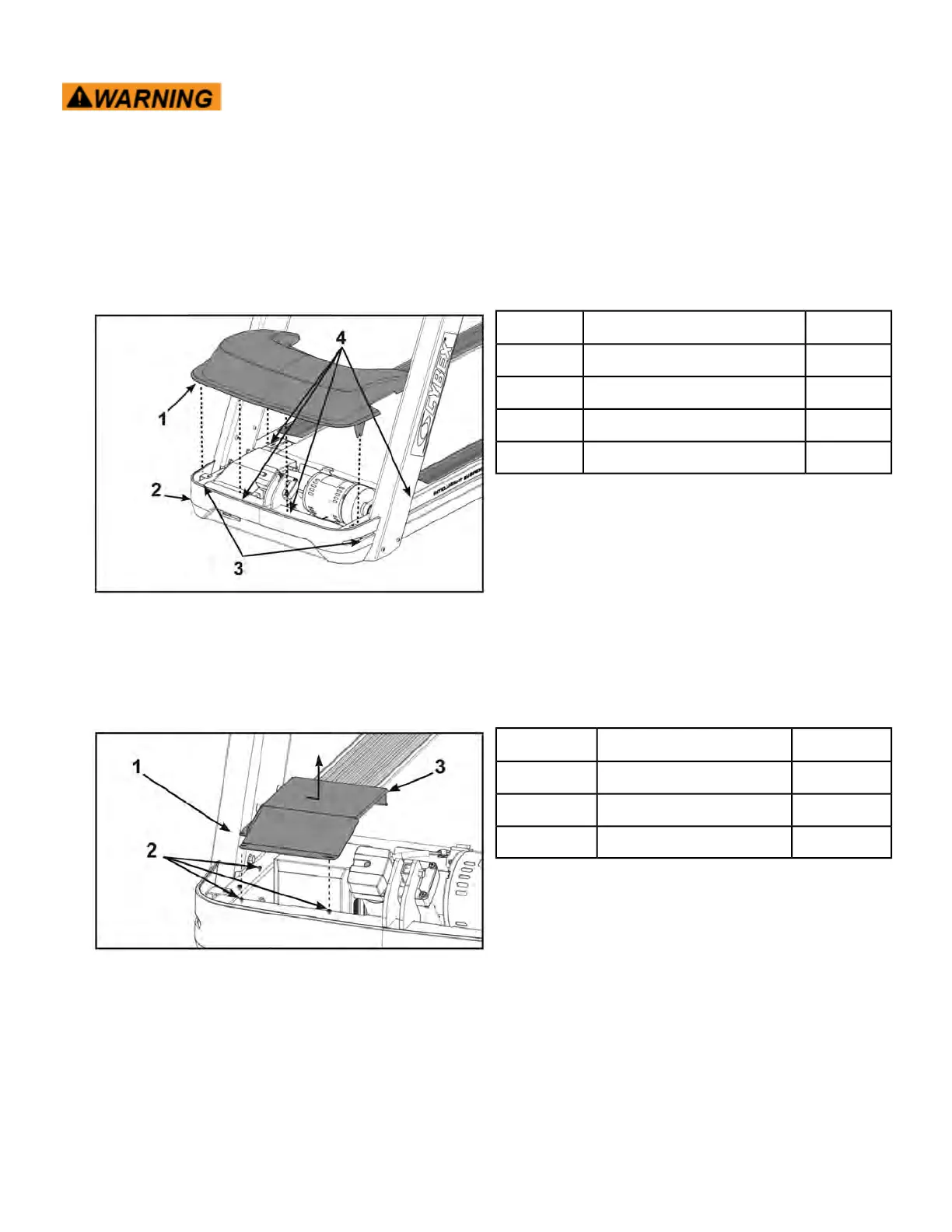

Remove motor cover
1. Loosen, but do not remove the two front cover screws securing the motor cover using a Phillips
screwdriver.
Qty.DescriptionItem
1Motor Cover1
1Front Cover2
2Screws3
4Plastic Connectors4
2. Remove motor cover by carefully lifting vertically. Do not break the four plastic connectors.
Remove shield
1. Loosen, but do not remove the seven screws securing the shield to the base using a Phillips
screwdriver.
Qty.DescriptionItem
1Base1
7Screws2
1Shield3
2. Remove shield by sliding sideways and then vertically off of base.
Disconnect cables from motor controller
Pulling cables by their wires can damage the cables. Remove cables by pulling from connectors.
Carefully un-latch the cable connectors from the motor controller. This includes; the power in (INPUT),
display cable (COMM.), elevation cable (INCLINE), drive motor cable (OUTPUT) and resistor (DB).
Page 160 of 199
