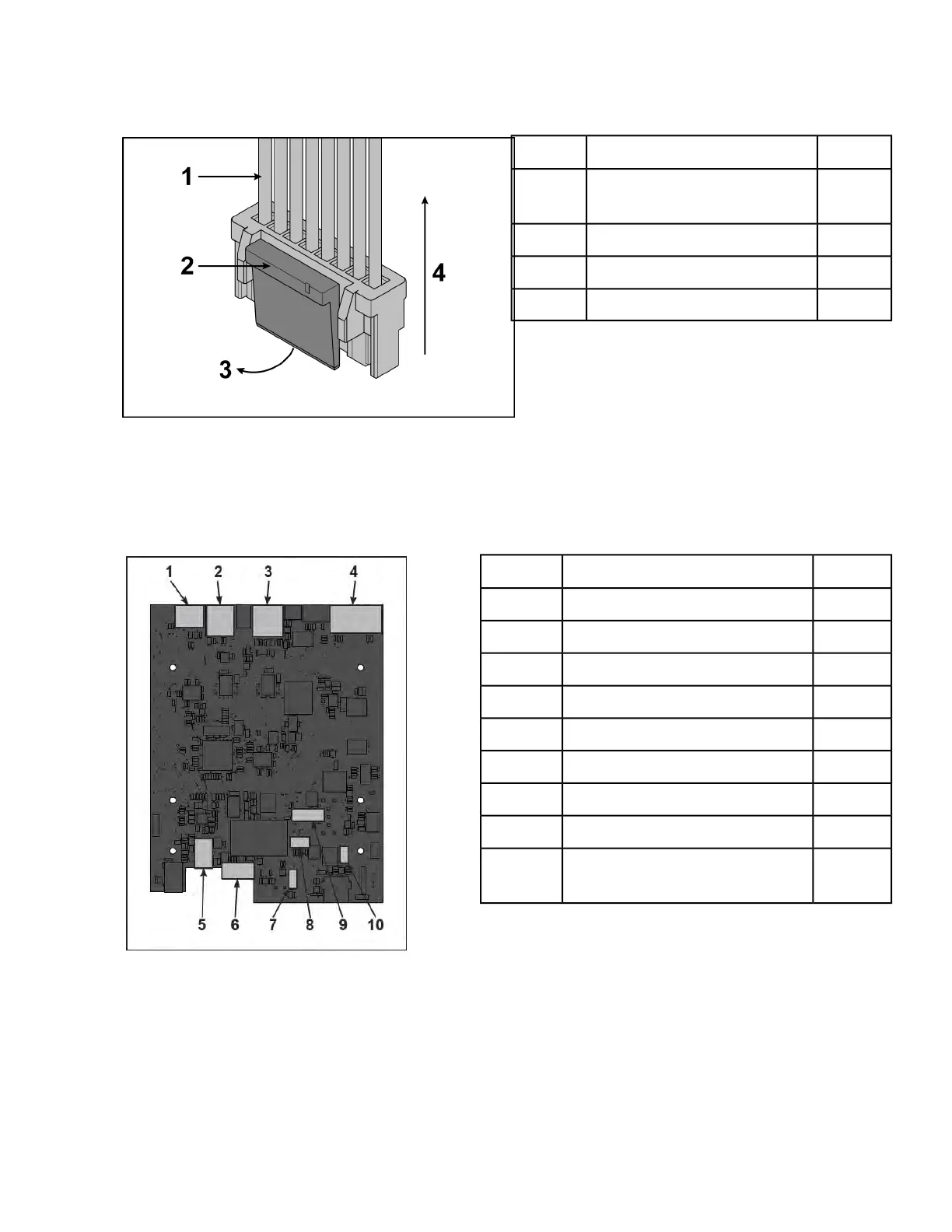

2. Unplug cables from MCC board by un-latching connectors with the following procedure:
a) Press in the top of the cable connector.
Qty.DescriptionItem
1
DO NOT PULL CONNEC-
TOR OUT BY THE WIRES!
1
1Step a, Latch2
1Step b3
1Step c4
b) Ensure latch disengages the connector.
c) Unplug cable by holding down latch and pulling straight out from connector. Do not pull on wires,
remove by connector.
MCC board cables
Qty.DescriptionItem
1MYE/BV, Gray1
1CSAFE, Red2
1Console cable3
1Upper display4
1Headphone jack5
1iPod (optional)6
1Heart rate7
1Handset membrane8
1
iPod board assembly (option-
al)
9
