Typical Cable or Set Top Box Connections
The STB can use a distributed RF signal over coax (Cable), or distributed Internet
Protocol over Ethernet (IPTV.) The source is up to the facility and the system in-
stalled.
Input to STB
This uses the tuner of the equipment’s TV, set to channel 3 or 4. For EPEM con-
soles, this setting is STB+Tuner. After installing, scan for channels using the
COAX to equip-
ment TV
equipment UI or the TV’s remote control. It will find the single channel of the Set
Top Box.
This uses the HDMI input of the equipment’s TV, so the TV will be set to HDMI
automatically when configured for STB+HDMI. No scanning required.
HDMI to equip-
ment TV

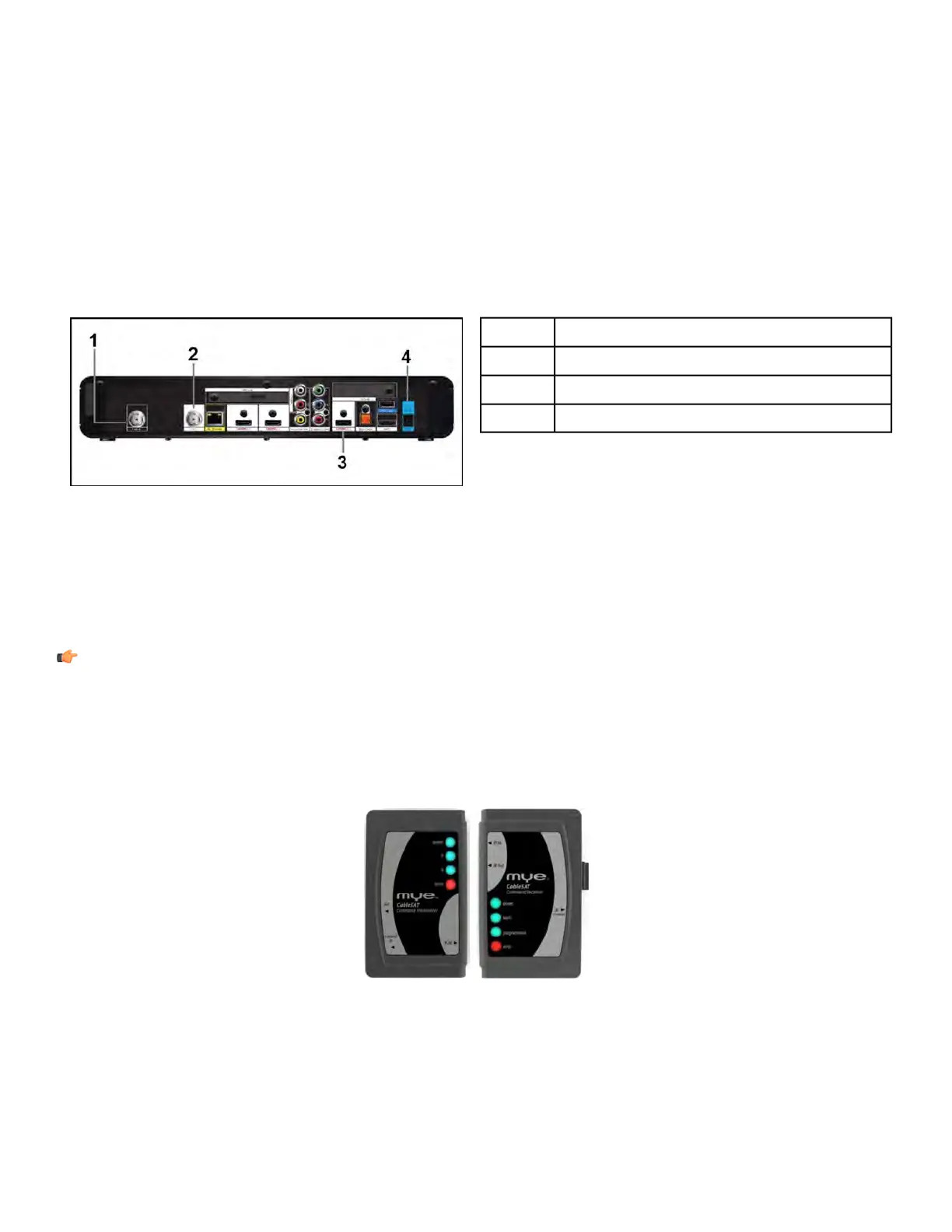

Cable in1
Coax to equipment TV (STB + Tuner)2
HDMI to equipment TV (STB + HDMI)3
Power, connect last.4
Install STB components based on configuration
Configuration options are:
• MYE CableSAT
• BV CAB or Connected TV STB
• BV CAB for Broadcast Vision or Connected TV, TV-on-a-stand
NOTE: Configure and setup one product, to test the system, before completing others.
MYE CableSAT
This system uses a wireless transmitter inside the console of the fitness equipment, which sends channel
commands to a receiver mounted near the Set Top Box. The STB can be up to 1000’ away pending
interferences. The transmitter module inside the console is powered by the console. The receiver module
has a small wall-bug power supply and an infrared transmitter for adhering to the front of the STB.
Page 39 of 199
