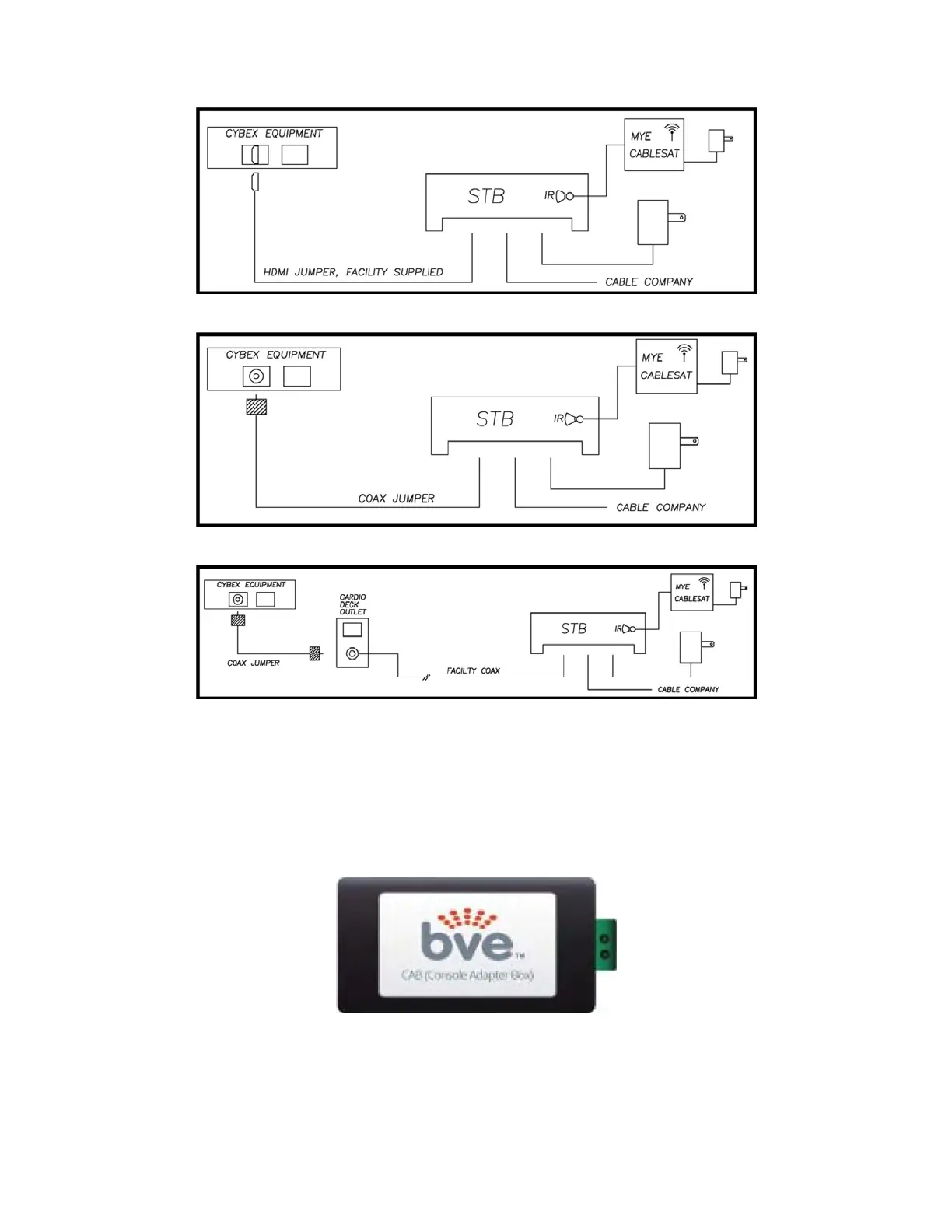

MYE HDMI with STB NEAR to equipment
MYE Coax with STB NEAR to equipment
MYE Coax with STB FAR from equipment (up to 1000’ range if unobstructed)
BV CAB or Connected TV STB
This system uses a transmitter mounted inside the console and a 14” lead that plugs in the Gray MYE
port of the MCC. It uses our internal Cat5 cable to connect out to an infrared transmitter which plugs in
to the ethernet port at the base of our equipment. This allows for a NEAR STB, where the box is located
near the equipment, or FAR, where the STB is stored in an A/V closet. If FAR, the facility must run
ethernet from our equipment to the A/V closet and connect the Infrared transmitter from there to the
STB.
Page 40 of 199
