Install the uprights

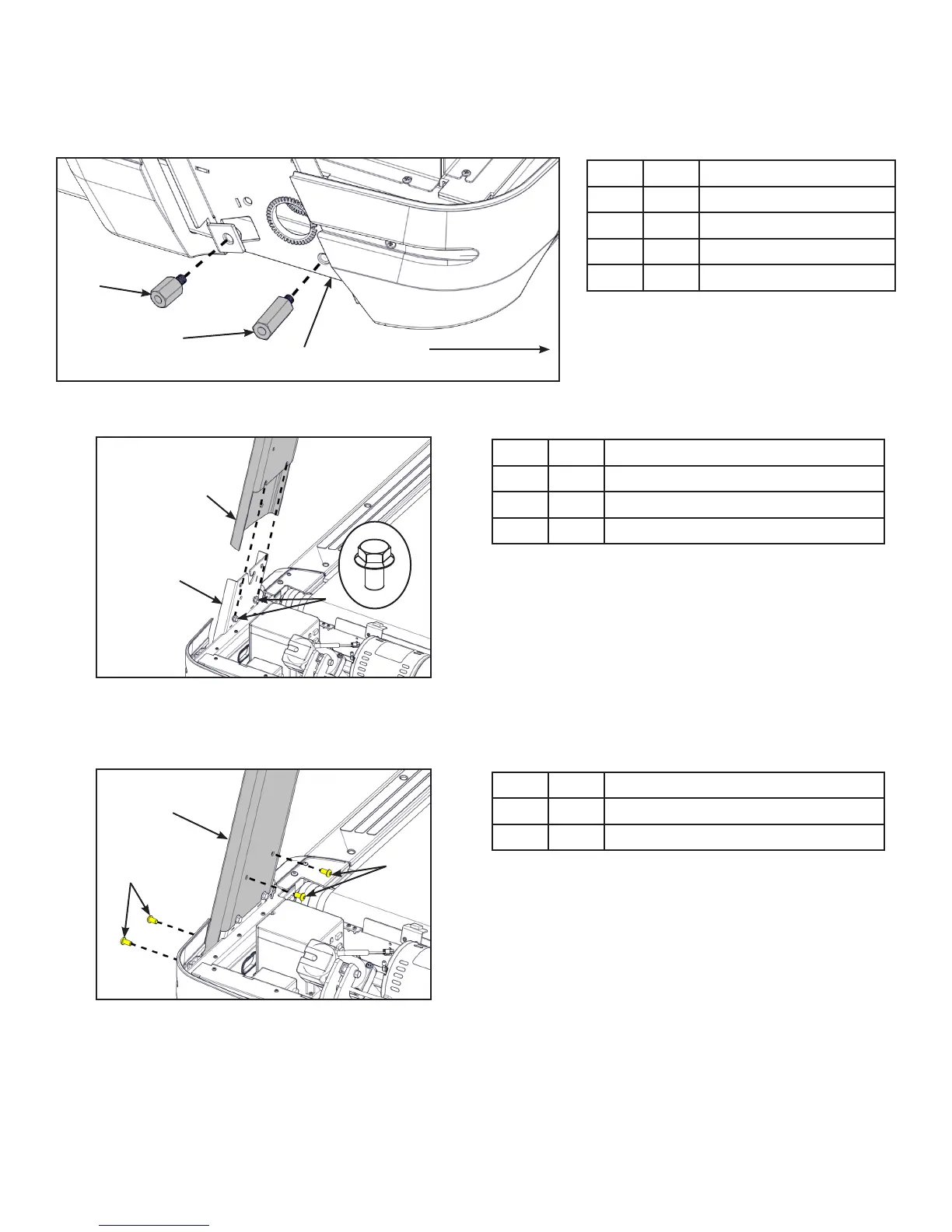

1. Install the short and long standoffs to the right side of the base using a 3/4” open end wrench.
1
2
3
4
Item Description
1 17 Standoff, short
2 18 Standoff, Long
3 Base
4 Front of unit
2. Thread two bolts into the base by hand. Do not fully thread bolts into the base.
1
2
3
Item Description
1 4 Upright (Right shown)
2 Base
3 16 Bolt, Whiz lock (2)
3. Place the right upright onto the base assembly and the bolts installed in the previous step.
4. Thread four bolts into the right upright by hand.
1
2
2
Item Description
1 4 Upright (Right shown)
2 15 Bolt (4)
5. Repeat steps 1 through 4 for the left upright.
