Figure 9
Power Adapter Inlet
8. Level the unit.
A. Confirm that the unit is on a level surface. See
steps 8B - 8D for leveling.
! WARNING: Always use proper lifting methods when
moving heavy items.
B. Carefully lay the cycle on its side to gain access to
the leveling feet.
C. Locate the leveling feet at the rear of the unit.
See Figure 8.
D. Using your hands, adjust the leveling feet up or
down until the unit is level.
9. Connect the optional power adapter.
A. Plug the optional power adapter into the inlet near the front of the unit. NOTE: Do not plug the
power cord into an outlet at this time. See Figure 9.
NOTE: Use Cybex supplied adapter only, NEMA 5-15 plug (TR-18231) or IEC-320 inlet (TR-18230). If
using the IEC-320 inlet adapter, ensure a proper power cord is sourced and connected
properly. Consult an electrician if you have any questions.
Cybex 530C and 530R Owner’s Manual

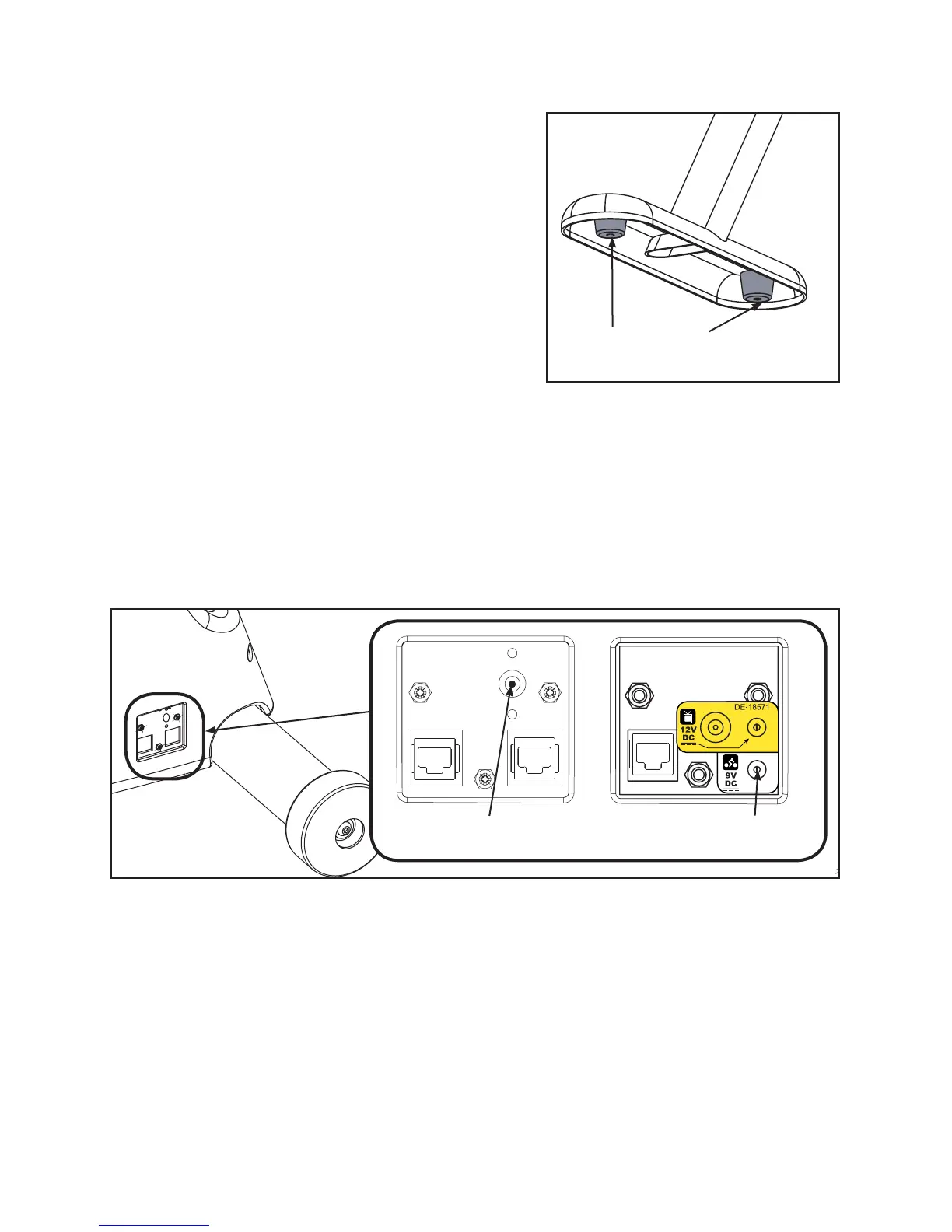

Figure 8
Leveling Feet
Setup
and Assembly
Page 5-7
10. Visually inspect the unit.
A. Carefully examine the unit to ensure that the assembly is correct and complete.
B. Proceed to Testing the Operation section.
Power Adapter Inlet
with A/V option
To Next Page
